INSTALLATION INSTRUCTIONS AND OWNER'S MANUAL
READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING THE INSTALLATION
PLEASE RECORD THE SERIAL NUMBER ________________ OF YOUR BATHTUB
IMPORTANT:
The Azzura Solid Surface Bathtubs are
carefully inspected and packed for shipment. You should
check your unit and if there are any problems contact your
dealer before installation.
Protect the bathtub and fittings from dirt and damage by
leaving the protective film in place until the tub is in the final
location.
INSTALLATION NOTES
PLUMBING
Decide exactly where you wish to install the bathtub.
Install the basic plumbing components: water inlet and floor
drain. These tub models require a
connection
from the floor.
Note:
The Melody (FSW 106) and Lorelie (FSW 107) can
accept deck faucet mounts. If so, mark the location, drill pilot
hole using 1/4" drill bit and then use appropriate size hole
saw for the fixture. (Material thickness is approximately 3/4"
thick.)
Slot design overflow and push up drain installation
comes pre-installed from the factory
Tools and Materials required:
Tools:
Drill, Measuring tape, Pencil, Level, Safety Glasses,
3/4"(19mm) Wrench, Clear Mildew Resistant Silicone
INSTALLATION
These tubs are very heavy, therefore it is recommended that
the installation be done by 3 - 4 people.
Floor Opening
Determine the location of the bathtub which allows enough
space for plumbing and making sure that the drain and
plumbing are not directly above the floor joists.
©
Copyright 2010
Mirolin Ind.
Solo Bagno
SOLID SURFACE FREE STANDING
AND SAVE THIS MANUAL FOR FUTURE REFERENCE
INSTALLATION INSTRUCTIONS
vertical plumbing
The Copyright includes all content on the document.

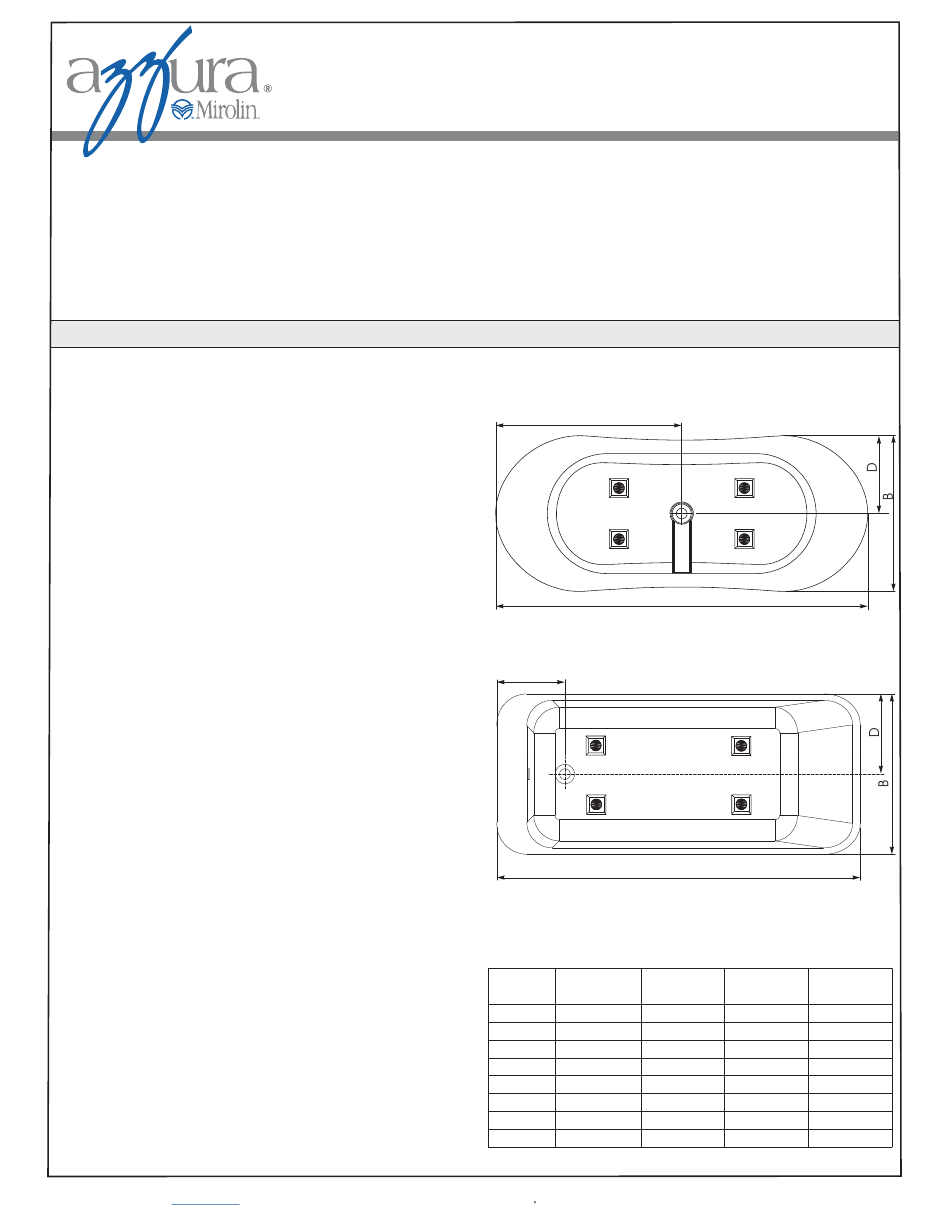

Mark the plumbing fixtures location for the drain. Cut or
drill the floor, reference Figure 1a and Figure 1b.
C
FIGURE 1a - Bathtub with centre drain location
C
FIGURE 1b - Bathtub with end drain location
A
MODEL
Andrina
69"
29 ½"
67"
28 3/8"
Ariel
Jewel
63"
28 ½"
71"
33 ½"
Melody
Lorelie
67 1/4"
29 3/4"
Nerissa
70"
38 ½"
Sybil
62 ½"
28 1/4"
Sirena
65 3/4"
29 3/4"
azzurabath.com
A
A
B
C
D
34 ½"
14 3/8"
18 3/4"
4 3/4"
18 7/8"
5 ½"
35 ½"
18 ½"
12 ½"
14 7/8"
35"
19 1/4"
31 1/4"
14 1/8"
37 3/4"
14 7/8"
1
