Summary of Contents for StarAid Revolution

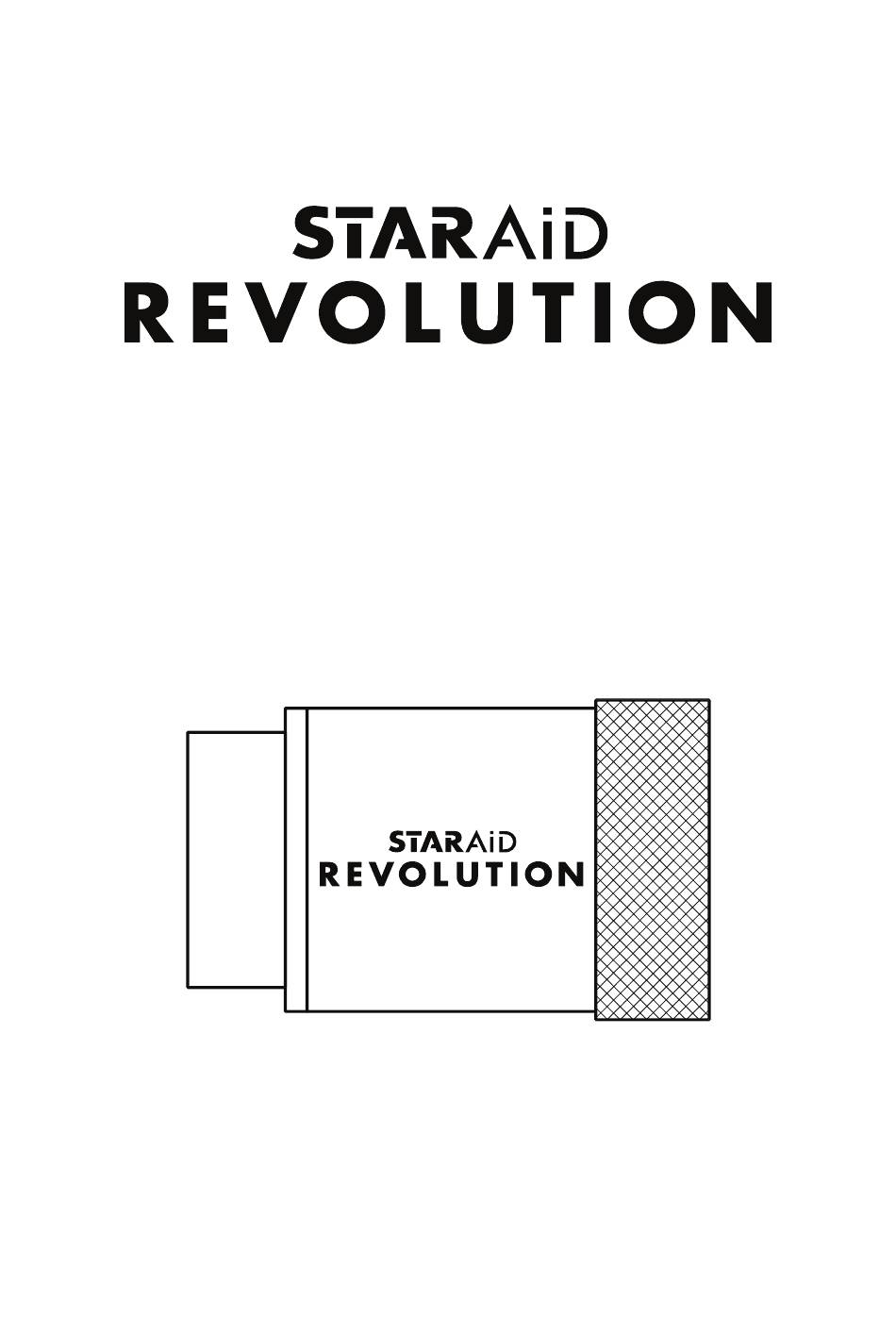

- Page 1 REVISION B QUICK START GUIDE...
- Page 2 In the box 1. StarAid Revolution 2. USB Cable 3. Guide cable Uplink port 4. Uplink cable Camera control port 5. WiFi access card Revert to defaults 6. Splitter USB. USB port Guide port LED 1 Uplink port LED 2...
- Page 3 Page 3 QUICK START GUIDE REVISION B - VERSION 1.0...
- Page 4 Starting up StarAid Revolution Step 1: Attach the StarAid Revolution directly to a 1¼” socket guide scope, or via a C-mount adaptor to a C-mount guide scope. Do not to touch the sensor. C-mount adapter (SARCA0-00) OPTION A C-mount guidescope OPTION B 1 ¼”...
- Page 5 Step 2: Connect StarAid to the splitter Connect the uplink cable to the StarAid uplink port and to the Splitter uplink port Step 3: Connect the splitter to the mount guide port Only for guiding. Step not needed for polar alignment only.
- Page 6 Yellow pulsing of LED 2 indicates the completion of the startup. Alternatively you can connect a PC / laptop USB port, a USB charger or a USB power bank to the StarAid Revolution USB port 1USB power StarAid. Step 5: Connect StarAid...
- Page 7 Skip this step if you are using an Apple or Samsung device After connecting to the StarAid WiFi, open your device WiFi settings and click on ‘Sign in to network’ for the StarAid WiFi connection. Then click on the 3 dots in the upper right corner, and select ‘Use this network as is’...
- Page 8 Page 8...
- Page 9 StarAid Revolution USB port and your device. 1USB Step 2: Install needed device drivers Follow the instructions for your device on staraid.ai/usb to install the necessary device drivers. Step 3: Access the StarAid App Enter the following URL in your device’s browser: http://169.254.54.1...
- Page 10 Using StarAid Revolution Focusing In order for StarAid Revolution to function, the guide scope must be in focus. This can be done by accessing the “Live View” menu from the App. Autoguide mode From the home menu, select the “Auto guiding” page. Here you can start, stop or pause the autoguiding feature.
- Page 11 Object guiding StarAid can also guide on objects closer to earth (e.g. comets). From the home menu, select the Object guiding page. Select the object you would like to image, center the object in your main telescope and select start. Guiding will be adjusted to keep the selected object steady instead of the background stars.
- Page 12 Notes bSentient B.V. Leeuwenbrug 89A, 7411TH Deventer (NL) CoC-number 73124028...
