INSTRUCTION BULLETIN

NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the

Parts List in the appropriate place in the machine manual for future

reference. Retaining the Parts List will make it easier to reorder

individual parts and will save the cost of ordering an entire kit.

NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.

Installation instructions for kit number 9008069

SYNOPSIS:

This kit contains the parts needed to install the front light kit on T16 scrubbers.

Please follow step-by-step instructions.

SPECIAL TOOLS / CONSIDERATIONS: NONE

(Estimated time to complete: 1 hour)

PREPARATION:

1. Park the machine on a clean level surface,

turn off the machine, and remove the key.

FOR SAFETY: Before leaving or servicing

machine, stop on level surface, turn off

machine, and remove key.

2. Disconnect the battery cable from the

machine.

WARNING: Always disconnect battery

cables from machine before working on

electrical components.

IB 9008539 (08- 2015)

PROTECT THE ENVIRONMENT

Please dispose of packaging materials, used machine components

such as batteries and fluids in an environmentally safe way according

to local waste disposal regulations.

Always remember to recycle.

INSTALLATION:

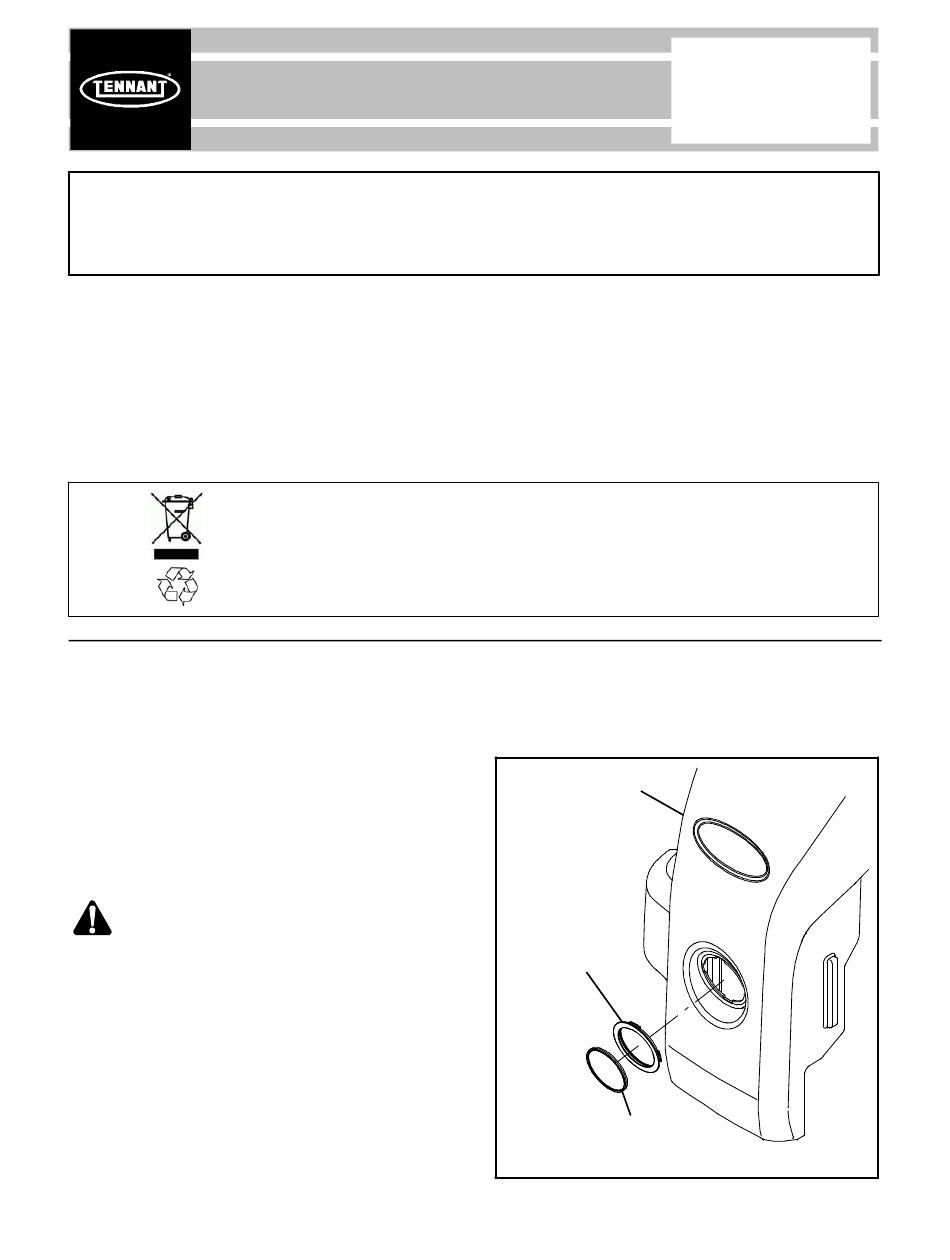

1. Remove the head headlight disk and grommet

from the front shroud. Set the grommet aside.

Discard the headlight disk. (Fig. 1)

Front shroud

Remove

and set

grommet

aside

Remove and discard

headlight disk

FIG. 1

No. 9008539

Machine: T16

Published: 08- 2015

Rev. 01

Table of Contents

Need help?

Do you have a question about the 9008069 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tennant 9008069

Page 1 NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials. Installation instructions for kit number 9008069 SYNOPSIS: This kit contains the parts needed to install the front light kit on T16 scrubbers.
Page 2 2. Install the grommet removed from the front 12. Carefully pull the electrical panel from the shroud in the previous step onto the headlight. front shroud. Take care to not break any wire (Fig. 3) connections when pulling the panel from the shroud.
Page 3 Set hardware aside Left console panel Front shroud Remove and discard hole plug. Install switch (4) into switch location Front shroud Left console panel Grommet Electricalpanel FIG. 3 IB 9008539 (08- 2015)
Page 4 FIG. 4 IB 9008539 (08- 2015)
Page 5 FIG. 5 IB 9008539 (08- 2015)
Page 6 Bill Of Materials For Light Kit, Front, CI [T16] - 9008069 Tennant Part No. Ref. Description Qty. 9008069 Light Kit, Front, CI [T16] 1048096 Headlight, 36VDC, LED, UL 1064191 Boot, Circuit Breaker 1064184 Circuit Breaker, 02.5a, Resettable 377084 Switch, Rocker, Prgrsv 1064188 Circuit Breaker, 15.0a, Resettable...
