Vulkan LOKin 6 VH MS 08 Assembly Instructions

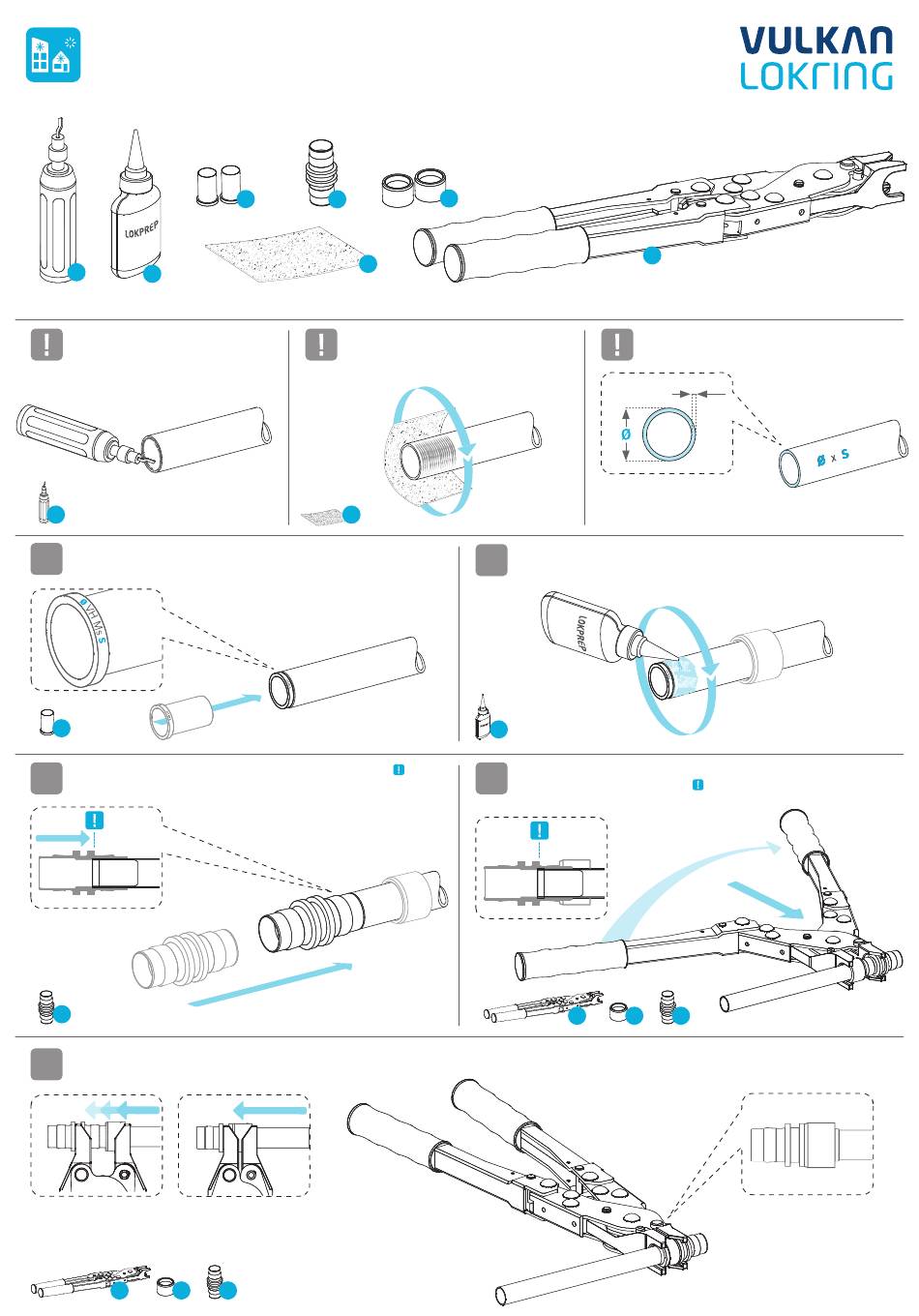

ASSEMBLY INSTRUCTIONS
Lokring tube connection assembly version Ms 50
(The assembly version is determined on the basis of the last two figures in the article name. Example: LOKRING 6 NK Ms 50)
01.
04.
01. Tube deburrer 02. Abrasive mat
Deburr the tube end all the way round using
a tube deburrer (01).
01.
Insert a stabilisation insert (03) suitable for the outer tube diameter
1
and tube wall thickness S.
03.
Push the connection joint (05) onto the tube until it reaches the inner stop .
3
05.
Press the tube connection until LOKRING (07) is flush to the assembly stop of the joint (05).
5
06. 07.
03. 05.
02.
03. Stabilisation inserts
Clean the tube end by rubbing it in rotary
movements using the abrasive mat (02).
02.
Ø
05.
07.
04. LOKPREP 05. Joint
Ø = outer tube diameter
Apply LOKPREP (04) all the way round the sealing
2
area of the tube end.
04.
Put the assembly jaws (06) in place behind LOKRING (07) and the assembly stop of the joint
4
(05). Press the tube connection together.
and connecting joint.
06.
06.
06. Hand assembly tool
Determine the tube wall thickness S and the outer tube
diameter Ø on the basis of tube coding or using a slide gauge.
S
S = tube wall thickness
Do not change the insertion depth of the tube
07. 05.
07. LOKRINGs
