Summary of Contents for Lefroy Brooks TT 4014

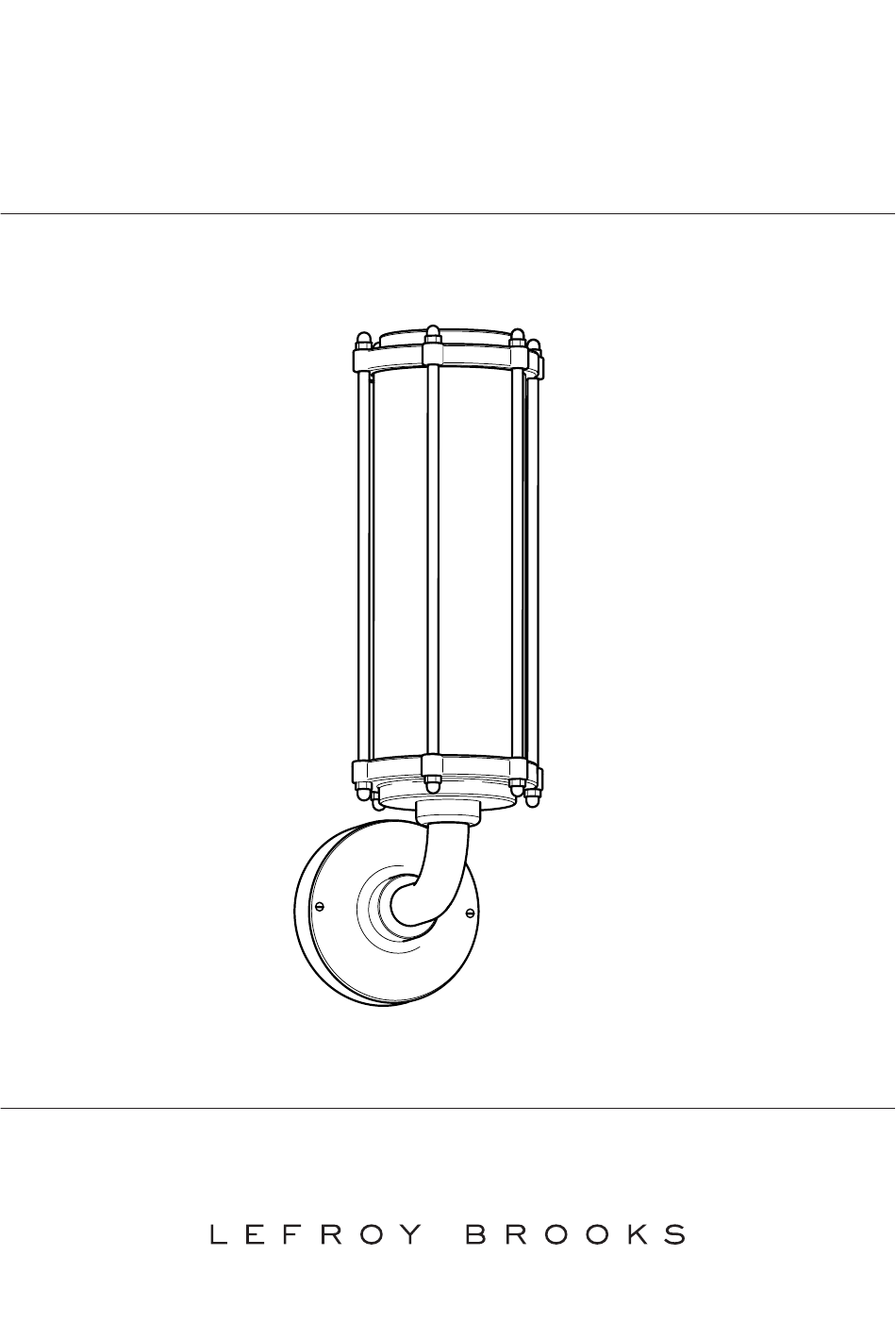

- Page 1 TT 4014 TEN TEN WALL LAMP INSTALLATION GUIDE...
- Page 2 IMPORTANT INFORMATION 1 Switch off your power supply at the fuse box (consumer unit). This can be achieved in two ways. The first is to turn off the miniature circuit breaker (MCB) for the lighting circuit and place RED insulating tape over the MCB to prevent it being accidentally turned on.
- Page 3 DIMENSIONS Ø94mm 134mm 305mm 70.5mm 85mm...
-
Page 4: Installation
INSTALLATION 1 Unpack the lamp. Unscrew and remove the six nuts from the top of the lamp. Lift the cover clear of the lamp. Remove the box containing the bulb from the centre of the lamp. - Page 5 INSTALLATION 2 Unscrew and remove the two screws from the front of the lamp. This will release the mounting plate at the rear. 3 With the raised screw holes facing you, place the mounting plate against a suitable mounting surface. Using a spirit level, ensure that the raised screw holes are horizontal.
- Page 6 INSTALLATION 4 Connect the cable to the junction box at the rear of the lamp. 5 Secure the lamp to the mounting plate using the two screws previously removed.
- Page 7 INSTALLATION 6 There may be a small silica gel bag inside the bulb holder. Remove this and discard. 7 Screw the bulb into the housing.
- Page 8 SERVICING Replacing the bulb 1 Switch off your power supply at the fuse box (consumer unit). This can be achieved in two ways. The first is to turn off the miniature circuit breaker (MCB) for the lighting circuit and place RED insulating tape over the MCB to prevent it being accidentally turned on.
- Page 9 SERVICING...
- Page 12 20.065.280B / AUGUST 2019 CUSTOMER SERVICE DIRECT LINE +44 (0)1902 390 894 customerservices@lefroybrooks.co.uk L E F R O Y B R O O K S . C O . U K Whilst every effort is made to ensure the accuracy of these, they are subject to change without notice as part of the company’s product development process.
