Summary of Contents for prophecy gofanco PRO-KVMaud4P-RM

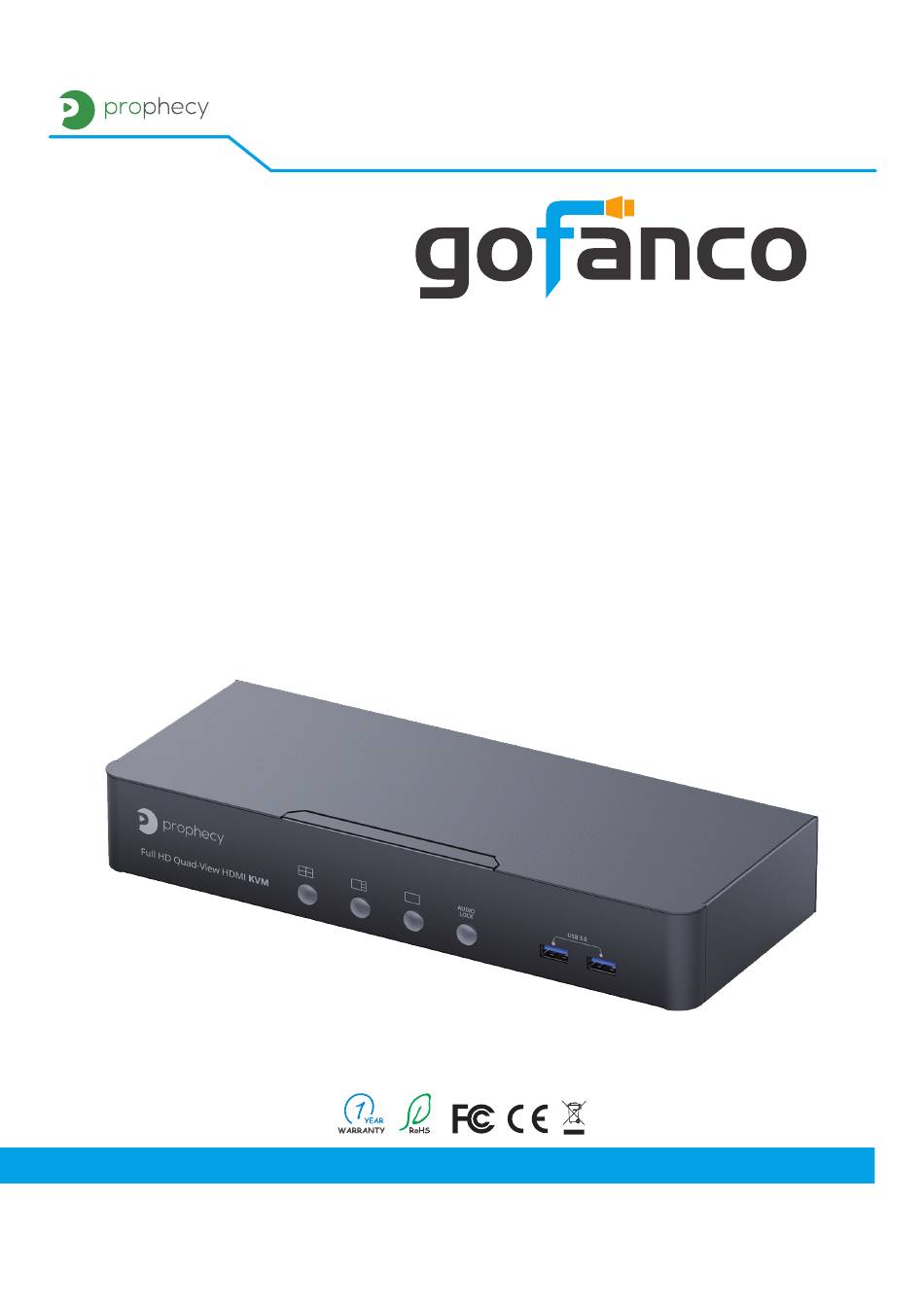

  • Page 1 ® PRO-KVMaud4P-RM 4 Port 1080p KVM with mouse roaming and USB3.0 Hub User‘s Guide Made in Taiwan...
  • Page 2 ® PRO-KVMaud4P-RM Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
  • Page 3: Table Of Contents

    ® PRO-KVMaud4P-RM Table of Contents 1. Safety and Notice ..............3 2.
  • Page 4: Introduction

    ® PRO-KVMaud4P-RM 2. Introduction The PRO-KVMaud4P-RM 4 Port 1080p KVM with mouse roaming and USB3.0 Hub provides the most flexible and cost effective solution in the market for multiple computer management at home & office. The KVM switch can control 4 HDMI USB computers by one set of console peripherals (keyboard, mouse &...
  • Page 5: Specification

    ® PRO-KVMaud4P-RM 5. Specifications Item Description Technical Role of usage 4-Port HDMI Quad-Viewer & Seamless KVM Switch HDCP compliance HDCP 1.4 Video bandwidth HDMI [6.75Gbps] Output Video Support 1080p60 Input Video Support 480i/480p/576i/576p/720p/1080i/1080p Audio support Bypass Human body model — ±15kV [air-gap discharge] & ESD protection ±8kV [contact discharge] Input...
  • Page 6: Connection Diagram

    ® PRO-KVMaud4P-RM 6. Connection Diagram...
  • Page 7: Panel Description

    ® PRO-KVMaud4P-RM 7. Panel Description Front Panel 1. Quad View mode 1: Averaged Quad View 2. Quad View mode 2: 1 Main and 3 sub Quad View 3. One View mode: Switch source in one view (full screen) mode 4. KVM Audio lock: Lock the selected PC stereo audio in/out to console 5.
  • Page 8 ® PRO-KVMaud4P-RM Rear Panel 14 15 16 17 7. KVM Video IN 1-4 (HDMI IN 1-4): Connect the HDMI cable to PC 8. Console Video OUT (HDMI OUT): Connect the HDMI cable to a display 9. Stereo output: Audio extraction from selected HDMI input (use hotkey to switch) 10.
  • Page 9: Hotkey

    ® PRO-KVMaud4P-RM 8. Hotkey Default setting, all of the following commands begin by pressing the [Scroll Lock] key twice. Please follow the hotkey command listed below for selected operating functions: Hot key Definition [Scroll Lock] + [Scroll Lock] + [NUMBER1~4] Switch input 1~4 source to output [Scroll Lock] + [Scroll Lock] + [F1] Quad view mode...
  • Page 10: Notic

    ® PRO-KVMaud4P-RM 9. Notic Firmware update is proceeded through Micro-USB KVM F/W update 1. Connect the Micro-USB to USB cable between PC and device 2. Set dip switch [PIN#1,PIN#2] to [ON[], OFF []]and then power on device 3. Open firmware update software and then select COM Port 4.
  • Page 11 ® PRO-KVMaud4P-RM 5. After updating, please set the dip switch [PIN#1,PIN#2] to [OFF [],OFF []]and power cycle the device...
  • Page 12 ® PRO-KVMaud4P-RM MCU F/W update 1. Connect the Micro-USB to USB cable between PC and device 2. Set dip switch [PIN#1,PIN#2] to [ON[], ON[]]and then power on device 3. Open firmware update software and then select COM Port 4. Click button to load firmware file.
  • Page 13: Limited Warranty

    ® PRO-KVMaud4P-RM 10. Limited Warranty The SELLER warrants the PRO-KVMaud4P-RM 4 Port 1080p KVM with mouse roaming and USB3.0 Hub free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surge.
  • Page 14 ® PRO-KVMaud4P-RM Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user‘s guide. The pictures on the user‘s guide are just for reference, and there may be some slight differences with the actual products. We reserve the rights to make changes without prior notice to a product or system described herein to improve reliability, function, or design.
  • Page 15 ® PRO-KVMaud4P-RM...
  • Page 16 ® Thank you for choosing gofanco www.gofanco.com Oct, 2020 Ver. A Copyright © by gofanco, LLC. All rights reserved.
