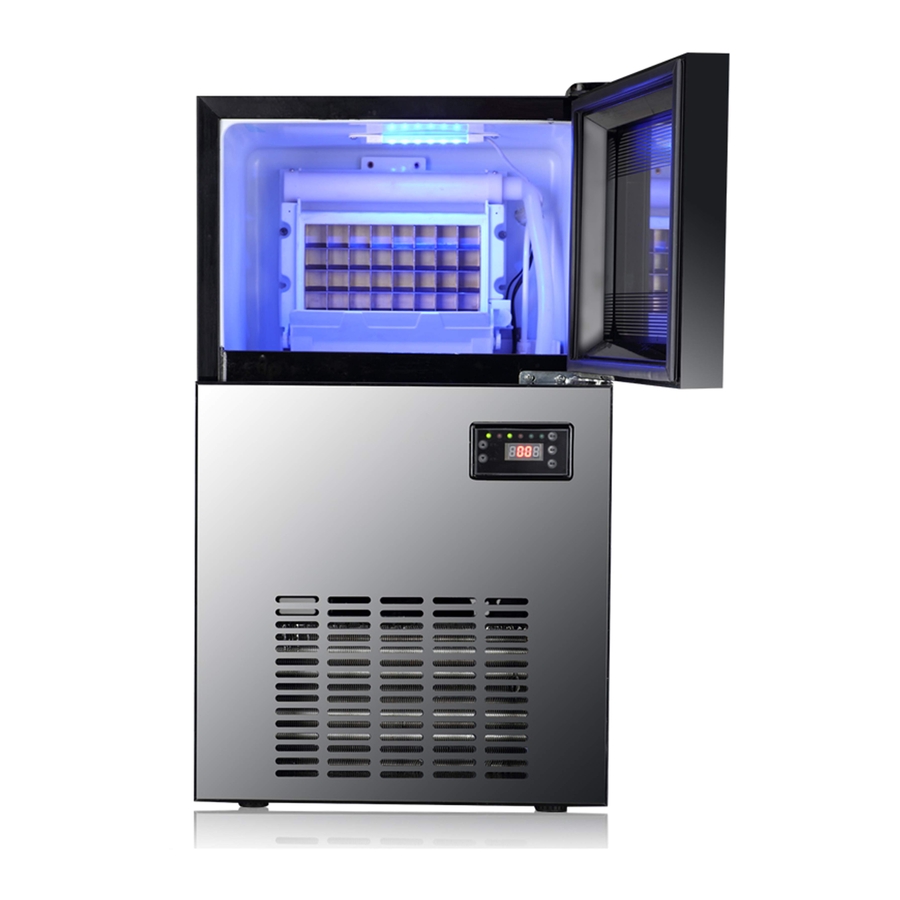

Summary of Contents for Toolots GSN-Z8-1

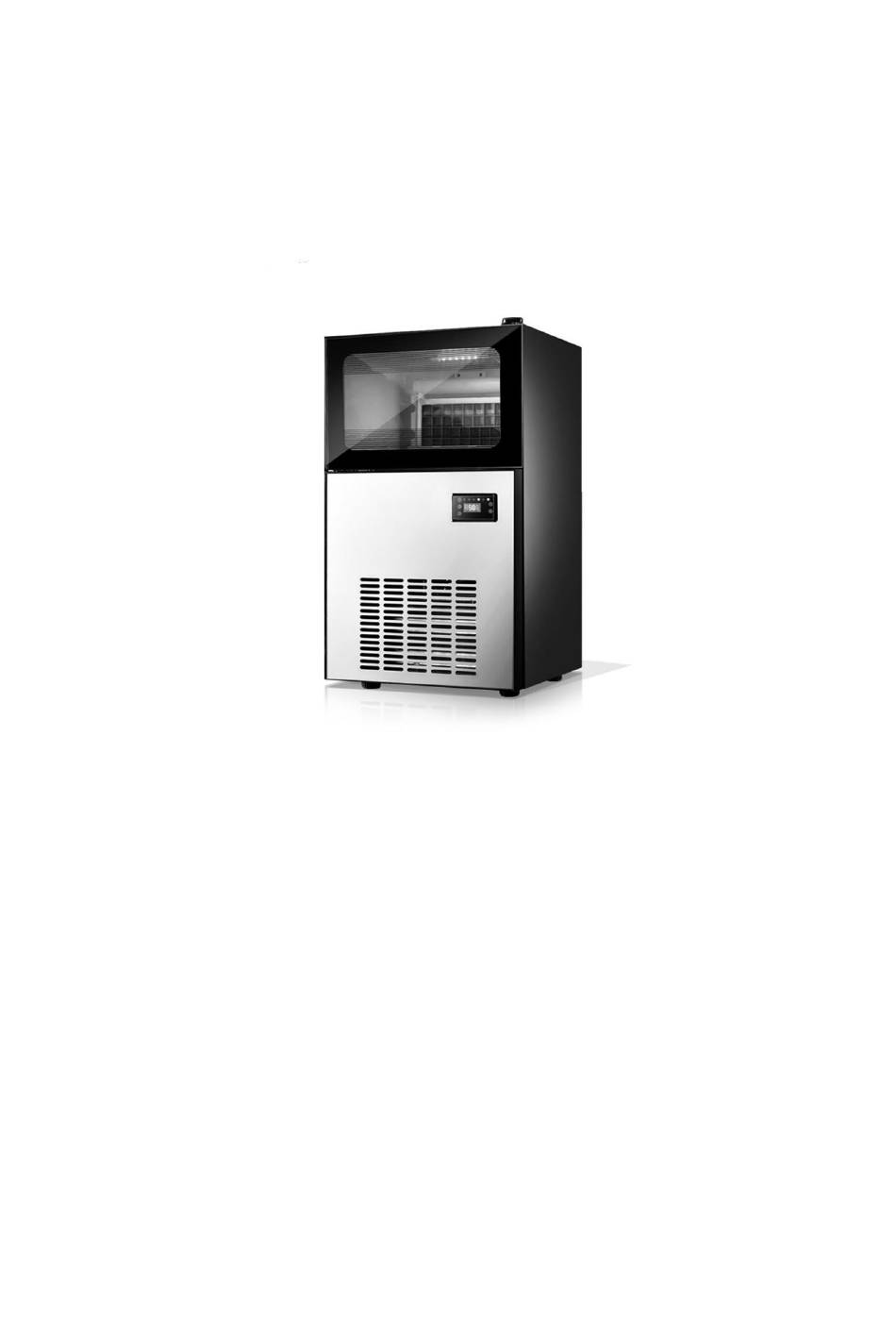

- Page 1 COMMERCIAL ICE MAKER INSTRUCTION MANUAL It is important that you read these instructions before using your commercial ice maker and we strongly recommend that you keep them in a safe place for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS RECEPTION AND INSPECTION ..................1 IMPORTANT SAFETY TIPS....................2 APRELIMINARY UNDERSTANDING OF YOUR ICE MAKER..........4 INSTALLATION AND PLACEMENT OF SOLES..............5 INSTALLATION OF WATER SUPPLY AND DRAINAGE.............6 CLEANING AND MAINTENANCE..................7 CONVENTIONAL PRECAUTIONS..................8 ELECTRICAL SAFETY MATTERS..................8 CONTROL PANEL OPERATING MANUAL............... 9 OPERATION STEPS OF ICE MAKER................10 TROUBLESHOOTING.................... -
Page 3: Reception And Inspection
RECEPTION AND INSPECTION Thank you for selecting our company's automatic ice maker. In order to protect your legitimate rights and interests, please pay attention to the following things when receiving and checking the machine: 1. The outer packing of the machine is intact. 2. -
Page 4: Important Safety Tips
IMPORTANT SAFETY TIPS WARNING:This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. - Page 5 DANGER WARNING If the ice maker is using or making ice, please do not touch the evaporator, which may freeze your skin. evaporator Before using electrical appliances, basic safety rules must be observed to reduce fire, electric shock and damage to people or material. Please read the safety tips carefully before using this appliance.
-
Page 6: Apreliminary Understandingof Your Ice Maker
that of the room. Warning: keep ventilation free around the appliance. Do not use it in the embedded structure. Warning: in addition to the manufacturer's recommended method, no mechanical or other means should be used to accelerate the defrosting process. Warning: no damage to the refrigeration circuit. -
Page 7: Installation And Placement Of Soles
8. control panel: A.regulates ice making time B. open key C .timing D. cleaning INSTALLATION AND PLACEMENT OF SOLES Foot Installation And Foot Placement 1. Screw the feet of the ice maker to the baseplate. 2. Each foot must be screwed up and tightened so as not to bend. -
Page 8: Installation Of Water Supply And Drainage
INSTALLATION OF WATER SUPPLY AND DRAINAGE Warning: Only drinking water can be connected. New hose assemblies attached to the appliances must be used. Old hose assemblies cannot be reused. Water supply pressure should be 0.1-0.8 MPa if the pressure is greater than 0.8 MPa, need to connect a pressure relief valve from the dry through the water of self-weight drainage, so the drainage pipe should be adequate height or drop. -
Page 9: Cleaning And Maintenance
CLEANING AND MAINTENANCE Note: Before any cleaning or maintenance steps, please unplug the power plug and do not use the wine tip and other highly corrosive wipers to clean the ice maker. This may cause cracking of plastic parts. 1. Peripheral: Use a clean, soft cloth to wipe the periphery of the ice maker. At least once a week. -
Page 10: Conventional Precautions
CONVENTIONAL PRECAUTIONS 1. When transportation and mobile location, the ice machine tilt shall not exceed 45 degrees. 2. Ice machine, please use independent water source, and check regularly to prevent water pressure is too low, fluctuations or filter clogging. 2. Do not store any sundries in the ice storage room, or freeze any food in the ice storage room and keep the ice shovel clean. -
Page 11: Electrical Safety Matters
ELECTRICAL SAFETY MATTERS Warning: the machine must be grounded. A、 must have a power or socket that can provide 115V-/60Hz, and the power supply or the socket must be reliably grounded. B、 The rated current of the B and electric box is 3.8A. If it is to be replaced, it must be completed by professionals. -
Page 12: Operation Steps Of Ice Maker
OPERATION STEPS OF ICE MAKER 1. Open / key: In standby state, the power lamp flickers, press the "on/off" button, the machine enters the ice making mode, the "ice making" lamp and the "power supply" lamp are long on; press the "on/off" button when the machine is running, the machine stops running and enters the standby state. - Page 13 screen.The digital display range is "-9 －15''. The smaller the number, the shorter the ice making time, the thinner the ice. The bigger the number, the longer the ice making time, the thicker the ice. It should be adjusted according to the size of the ice. Ice is too thin or too thick, which is not conducive to deicing.
-
Page 14: Troubleshooting
TROUBLESHOOTING 1）Do not make ice Problem Inspection Project Possible Reasons Solution Power switch In the closed position Press "open key". Power cord No connection socket Plug in a socket Control panel fuse Fusing or damaging Check and replace Ice full ice blocks the evaporator Remove the ice or remove the swing blade. - Page 15 2）Low ice production Problem Inspection Project Possible Reasons Solution Ice making Water pressure of The water pressure is too low, and Increase water pressure time is too water supply the water supply time is long. long. water temperature High water temperature Water temperature reduction ambient temperature The ambient temperature is too high...
-
Page 16: Technical Parameters
TECHNICAL PARAMETER Model GSN-Z8-1 Rated Voltage 115V Rated Frequency 60Hz Refrigerant R134a/0.23 lbs Rated Current 3.8A Vesicant C5H10 Net Weight 50.7 lbs Product Dimension 16.9*15.7*28(inches) ENVIRONMENTAL PROTECTION LIST...
