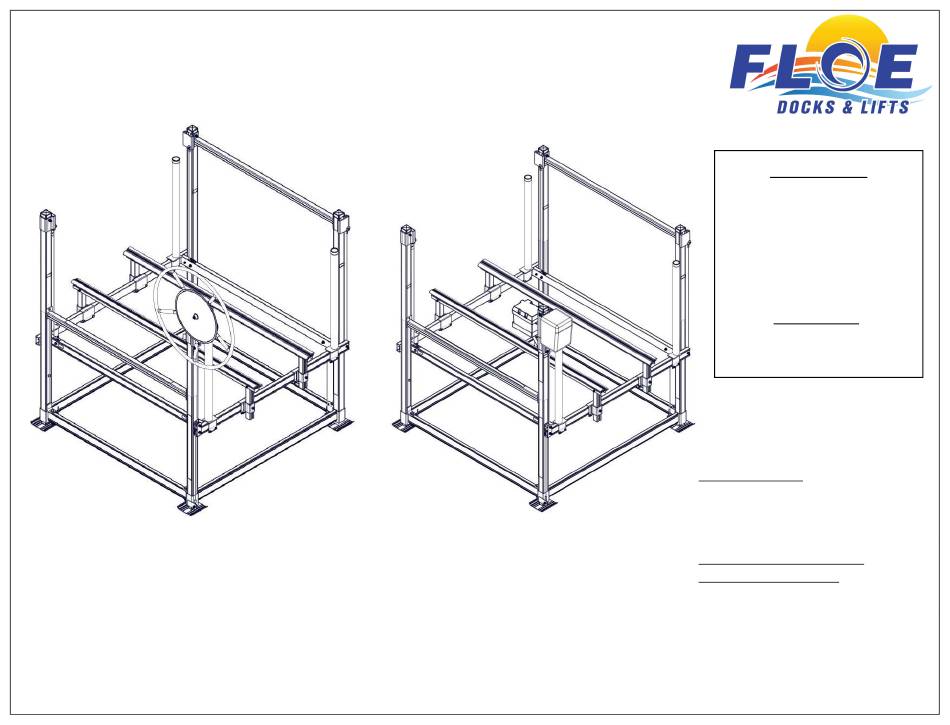

FLOE V1600 PWC WINCHES
P/N 511-11329-00 MANUAL WINCH
P/N 511-51100-00 DC WINCH
ASSEMBLY INSTRUCTIONS
MANUAL WINCH
Instruction P/N 611-11329-00
Issued 10/23/2019
DC WINCH
1
IMPORTANT
APPLY A HIGH QUALITY
WATERPROOF LITHIUM
GREASE TO WINCH
CABLE AND GEARS
ANNUALLY.
DO NOT GREASE
BRAKE.
TOOLS REQUIRED
-(2) 9/16" SOCKETS/WRENCHES
-3/4" SOCKET/WRENCH
-TORQUE WRENCH
RECOMMENDED BATTERIES
ON PAGE 4 (DC WINCH)
©Manufactured by:
Floe International Inc.
48473 State Hwy. 65
McGregor, MN 55760
www.floeintl.com
Advertisement
Summary of Contents for Floe V1600
- Page 1 FLOE V1600 PWC WINCHES P/N 511-11329-00 MANUAL WINCH P/N 511-51100-00 DC WINCH ASSEMBLY INSTRUCTIONS IMPORTANT APPLY A HIGH QUALITY WATERPROOF LITHIUM GREASE TO WINCH CABLE AND GEARS ANNUALLY. DO NOT GREASE BRAKE. TOOLS REQUIRED -(2) 9/16” SOCKETS/WRENCHES -3/4” SOCKET/WRENCH DC WINCH...
- Page 2 Knob, Speed - Winch Wheel 007-03000-00 Hub, Handle DLB" Winch 007-08701-00 Cable, Lifting V1600 PWC 111-11329-00 Ass'y, Winch V1600 PWC (INCLUDES 1, 3, 4, 5, 6, 7, 10, 12) 111-11331-00 Weld't, Mount Winch PWC 511-01900-00 Wheel, 36" Replacement Crank (INCLUDES 2, 4, 8, 9)
- Page 3 Ass'y, DC Winch Mount V1600 PWC 511-51050-00 Winch, DC - V1600 PWC (INCLUDES 1, 4, 5, 8, 11) 511-51100-00 Winch, DC - V1600 PWC (WINCH ASSEMBLY, BATTERY BOX, AND TRAY) (INCLUDES 7,10, 12) 014-02310-00 VELCRO, ½” DOUBLE SIDE BLACK 1 YD.
- Page 4 BATTERY RECOMMENDATIONS (DC WINCH) DEEP CYCLE, GROUP U1 1. INTERSTATE DCM0035 (AGM) 12V, 35 AMP-HR 2. DURACELL ULTRA SLADC12-35J (AGM) 12V, 35 AMP-HR 3. UNIVERSAL BATTERY UB12350-D5722 (SLA) 12V 35 AMP-HR 4. MIGHTY MAX BATTERY ML35-12 (SLA) 12V, 35 AMP-HR 5.
- Page 5 MANUAL WINCH INSTALLATION FIGURE 1.1 SLIDE WINCH ASSEMBLY ONTO CORNER POST “A” (FIGURE 1.1). ATTACH WINCH ASSEMBLY TO CORNER POST WITH ½” x 1 ¼” BOLT AND ½” NYLOCK NUT (INCLUDED WITH LIFT FRAME HARDWARE) (FIGURE 1.2). FIGURE 1.2 FIGURE 1.3...
- Page 6 MANUAL WINCH INSTALLATION PLACE VINYL CAPS ON EACH CORNER POST (FIGURE 1.4). THREAD WHEEL ONTO THE INNER THREADS OF THE WINCH STUD (FIGURE 1.5) APPLY GREASE TO THE INTERNAL THREADS TO PREVENT RUST. BE CAREFUL NOT TO GET ANY GREASE ON THE BRAKE ASSEMBLY.
- Page 7 MANUAL WINCH INSTALLATION TIGHTEN NUT ONTO STUD UNTIL THERE IS 1 TO 1-1/2 THREADS EXPOSED (FIGURE 1.7). REFER TO STEP 6 OF FRAME INSTRUCTIONS FOR ATTACHING CABLE TO CRADLE. IMPORTANT APPLY A HIGH QUALITY WATERPROOF LITHIUM GREASE TO WINCH CABLE AND GEARS ANNUALLY. DO NOT GREASE BRAKE.
- Page 8 DC WINCH INSTALLATION SLIDE BATTERY TRAY ONTO CORNER POST “A” UNTIL BOTTOM OF POCKET TOUCHES TAB (FIGURE 1.1). FIGURE 1.1 REMOVE BOLT, WASHERS, NUT, AND GUIDE (FIGURE 1.2). THIS IS TO PLACE LIFTING CABLE BEHIND GUIDE. SLIDE DC WINCH ASSEMBLY ONTO CORNER POST “A”...
- Page 9 DC WINCH INSTALLATION ATTACH DC WINCH ASSEMBLY TO CORNER POST WITH ½” x 1 ¼” BOLT AND ½” NYLOCK NUT (INCLUDED WITH LIFT FRAME HARDWARE) (FIGURE 1.4). TORQUE NUT TO 20 FT-LBS (FIGURE 1.5). RE-INSTALL BOLT, WASHERS, NUT, AND ROLLER INTO BRACKET WITH WINCH CABLE BETWEEN ROLLER AND BRACKET (FIGURE 1.6).
- Page 10 DC WINCH INSTALLATION VERY IMPORTANT! TIGHTEN NUT TO REMOVE PLAY IN BOLT. ROLLER MUST SPIN FREELY (FIGURE 1.7). PLACE VINYL CAPS ON EACH CORNER POST (FIGURE 1.8). VERY IMPORTANT REFER TO STEP 6 OF FRAME INSTRUCTIONS FOR ATTACHING CABLE TO CRADLE. FIGURE 1.7 IMPORTANT APPLY A HIGH QUALITY...
- Page 11 DC WINCH INSTALLATION CAUTION WHEN GREASING CABLE, BE WARY OF POSSIBLE PROTRUDING WIRES THAT MAY BE STICKING OUT OF WIRE ROPE. THIS MAY OCCUR WITH OLDER WORN CABLES.
