Summary of Contents for Galaxy Audio RM Series

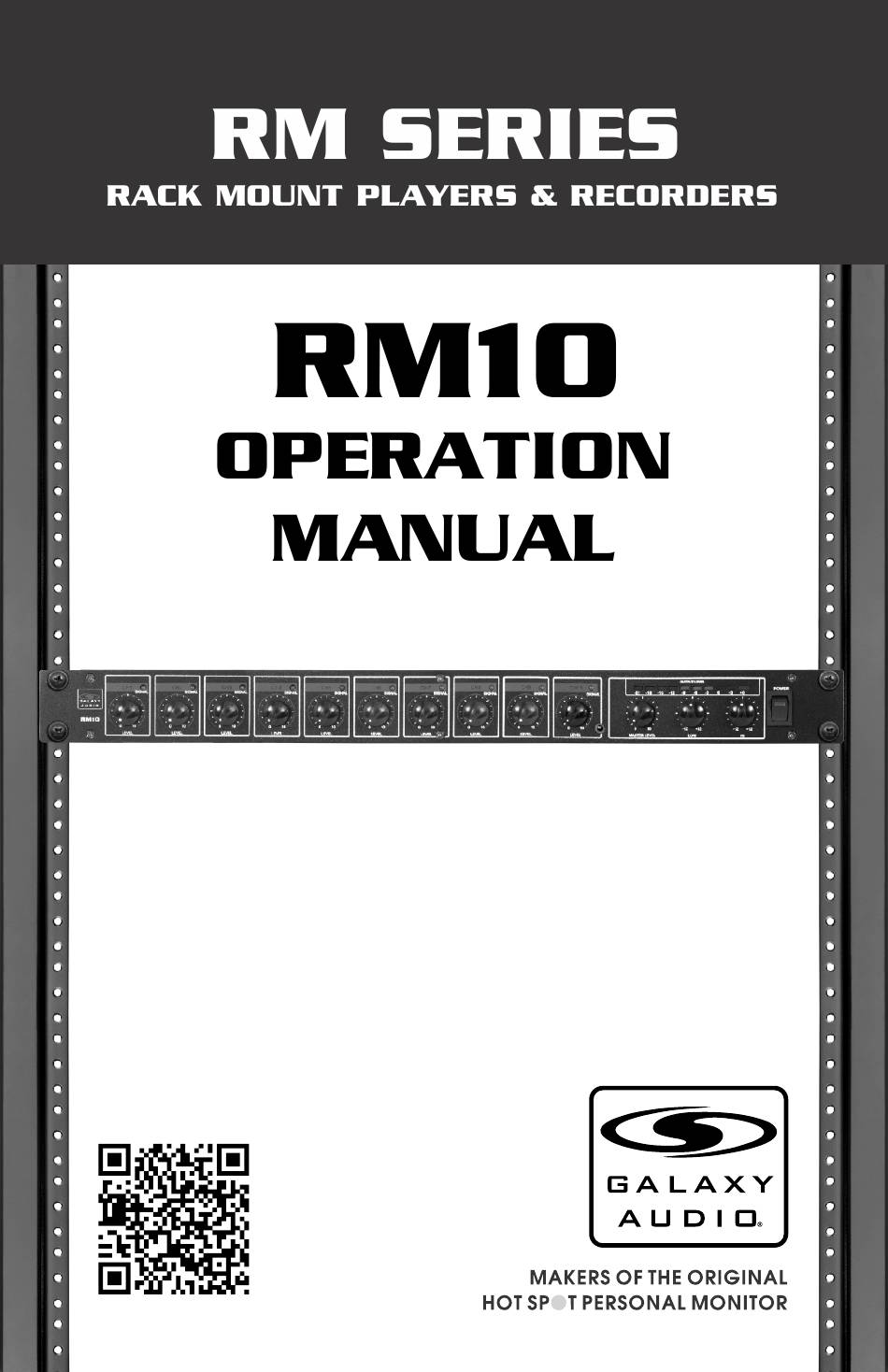

- Page 1 www.galaxyaudio.com/RM10.php...
-
Page 2: Table Of Contents
CONTENTS Introduction............. The RM10............... Uses............... 2&3 Input Channels............Phantom Power............Volume Controls............. Output Section............Auxiliary Buss Section..........Tone Control............Led Indicators............Specifications............Phoenix Block Inputs..........Frequency Response..........Warranty.............. -
Page 3: Introduction
INTRODUCTION Thank you for purchasing the Galaxy Audio RM10 Rack Mount Mixer. For updates on all of our products and owners manuals please visit www.galaxyaudio.com. The RM10 is a space-saving multi-purpose rack mountable Mic/Line mixer. Designed to solve many of the patching and mixing problems that arise when connecting various audio devices together. -
Page 4: The Rm10

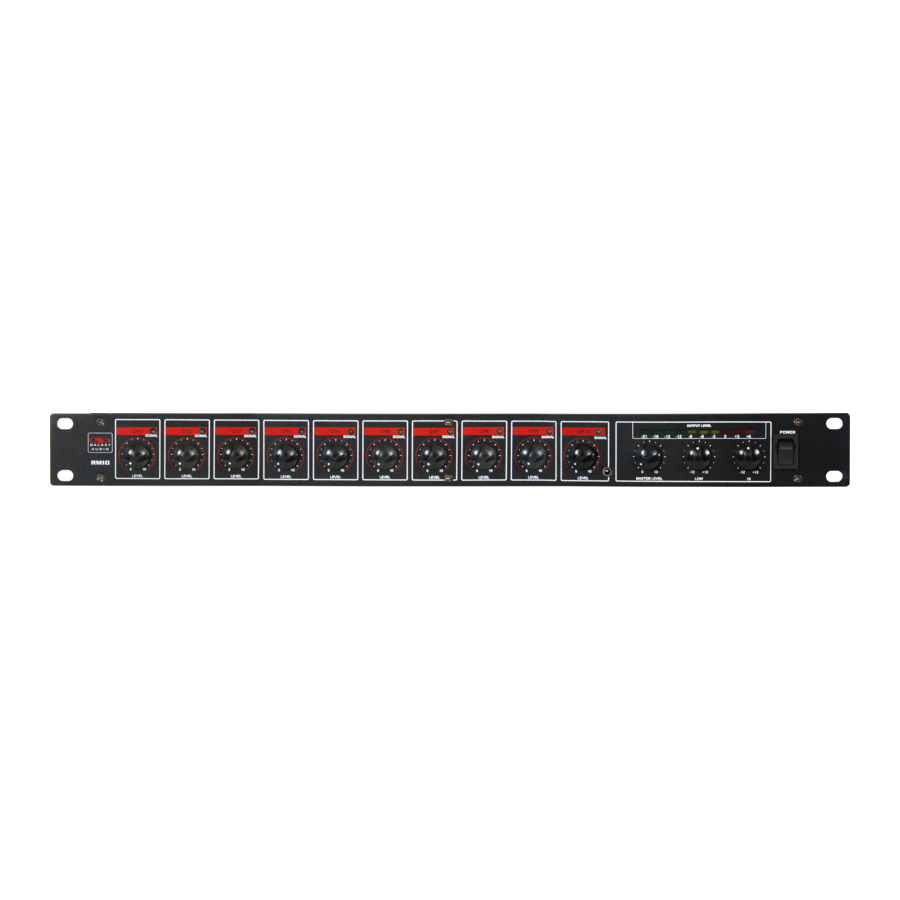

RM10 RM10-Rack Chassis Some of the uses of the RM10 Rack Mount Mixer include: 1.) Main mixer for small House of Worship, educational classroom and athletic facilities 2.) Adding inputs to an existing mixer by creating a sub-mix of two or more sources before sending the signals to the main mixer or powered speaker 3.) Serve as the main mixer for solo or duo acts as well as AV presentations... -
Page 5: Input Channels
RM10 Using the RM10: The following illustration shows just some of the many ways the RM10 may be connected with other audio devices. For best performance, always use high quality shielded cables of the correct type. Switch the power on and turn all Volume Controls to minimum before connecting other audio devices to the RM10. -
Page 6: Phantom Power
RM10 Phantom Power: Two Phantom Power Switches control the 48Vdc Phantom Power on Channels 1 through 8. Phantom Power Switch one controls Phantom Power for Channels 1 through 4 and Phantom Power Switch two controls Phantom Power for Channels 5 through 8. -
Page 7: Auxiliary Buss Section
RM10 Auxiliary Buss Section: A ¼" TRS stacking jack is located on the back of the unit between the Channel 10 Stereo RCA jack and ¼" Line Level Output jack for linking multiple units together. When two RM10's are bussed together the output of both units will be identical with the exception of master level and tone controls which are independent in each mixer. -
Page 8: Specifications
RM-10 Specifications: Channels 1 through 8 Electrical: Differential balanced or unbalanced Input Impedance: 18k ohms Differential 9k ohms Unbalanced Max Input: 2.25V RMS (+7 dBV, +9 dBu) with Pad Minimum Input: 3mV RMS (-50 dBV, -48 dBu) Nominal Input: 30mV RMS (-30 dBV, -28 dBu) Phantom Power: +48V DC Channel 9 &... -
Page 9: Phoenix Block Inputs
RM-10 Phoenix Block Inputs/Outputs Pin 1: Ground Pin 2: Pin 3: Two Band EQ: LOW: +/- 12dB @ 200 Hz HIGH: +/ - 12dB @ 10kHz 10 Segment VU Meter: -21dB, -18dB, -15dB, -12dB, -9dB, -6dB, -3dB, 0dB, +3dB, +6dB Distortion: THD 0.05% (22Hz-22kHz @ Nominal Volume) Noise:... - Page 10 RM-10 Tone Controls Flat Low Boost 12dB Low Cut 12dB High Boost 12dB High Cut 12dB...
- Page 11 RM-10 This Page Intentionally Left Blank...
-
Page 12: Warranty
WARRANTY Information can be viewed online at http://www.galaxyaudio.com/warranty.php Specifications in this manual are subject to change without notice. For the most up to date manual and information visit www.galaxyaudio.com. 1-800-369-7768 www.galaxyaudio.com © Copyright Galaxy Audio 2012 Printed in China V004172013...
