U-Line H-2932 Instructions Manual

H-2932, H-4734, H-6265
H-7176, H-7766

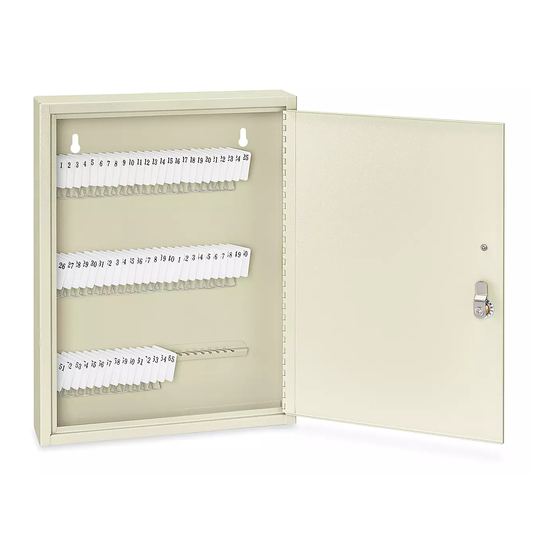

DIGITAL
KEY CABINET
ELECTRONIC LOCK
1
ELECTRONIC LOCK FUNCTIONS
FEATURE KNOB
Moves lock mechanism
90 or 180 degrees
FUNCTION
clockwise or
counterclockwise
to lock and unlock
cabinet.
This lock can operate using 3 codes (factory or master
code, supervisor code and user code).
Factory/Master Code – This code must
be reprogrammed to a 6-digit master
code. (See Page 2)
Supervisor/User Codes – 3 to 6 digits
need to be programmed into
the lock by following the steps. All
codes are retained by the lock after
unlocking and if the battery is changed.
PAGE 1 OF 12
1-800-295-5510
uline.com
OVERVIEW OF CONTROLS
4
3
2
5 6
KEYPAD
BUTTONS
For entering and
programming lock
codes.
INSTRUCTIONS
Factory/Master
Code
Supervisor Code
3-6 Digits
User Code
3-6 Digits
ELECTRONIC LOCK FEATURES
#
1
2
3
4
5
6
7 7
PROGRAM
BUTTON
Initiate programming Will flash and
mode by pressing the illuminate to indicate
front thin edge of the operating conditions.
black button.
A Note on Codes – The numbers 6, 7, 8 and 9 can be
entered by pressing two keys simultaneously in order to
produce a sum.
For example, 2 and 4 can be pressed simultaneously to
produce the number 6.
NOTE: If the code was programmed using
2 + 4 as the 6 digit, the 2 + 4 must be used
when accessing the lock. Other combinations
that equal six, such as 1 + 5, are distinguished
from 2 + 4.
Para Español, vea páginas 5-8.
Pour le français, consulter les pages 9-12.
5 6
5 5
2
28 5
27 5
3 4 5
2
1
5
5
5 50
49
DESCRIPTION
Knob
Keypad
Battery Holder With Cover
Program Button
Yellow LED – Low Battery
Red LED – Error
Green LED – Proceed
GREEN AND YELLOW
RED LEDS
Will flash five times
after lock is operated
to signify the battery
level is low and should
be replaced.
LED
0521 IH-2932
