Summary of Contents for Maruyama MC2602RS

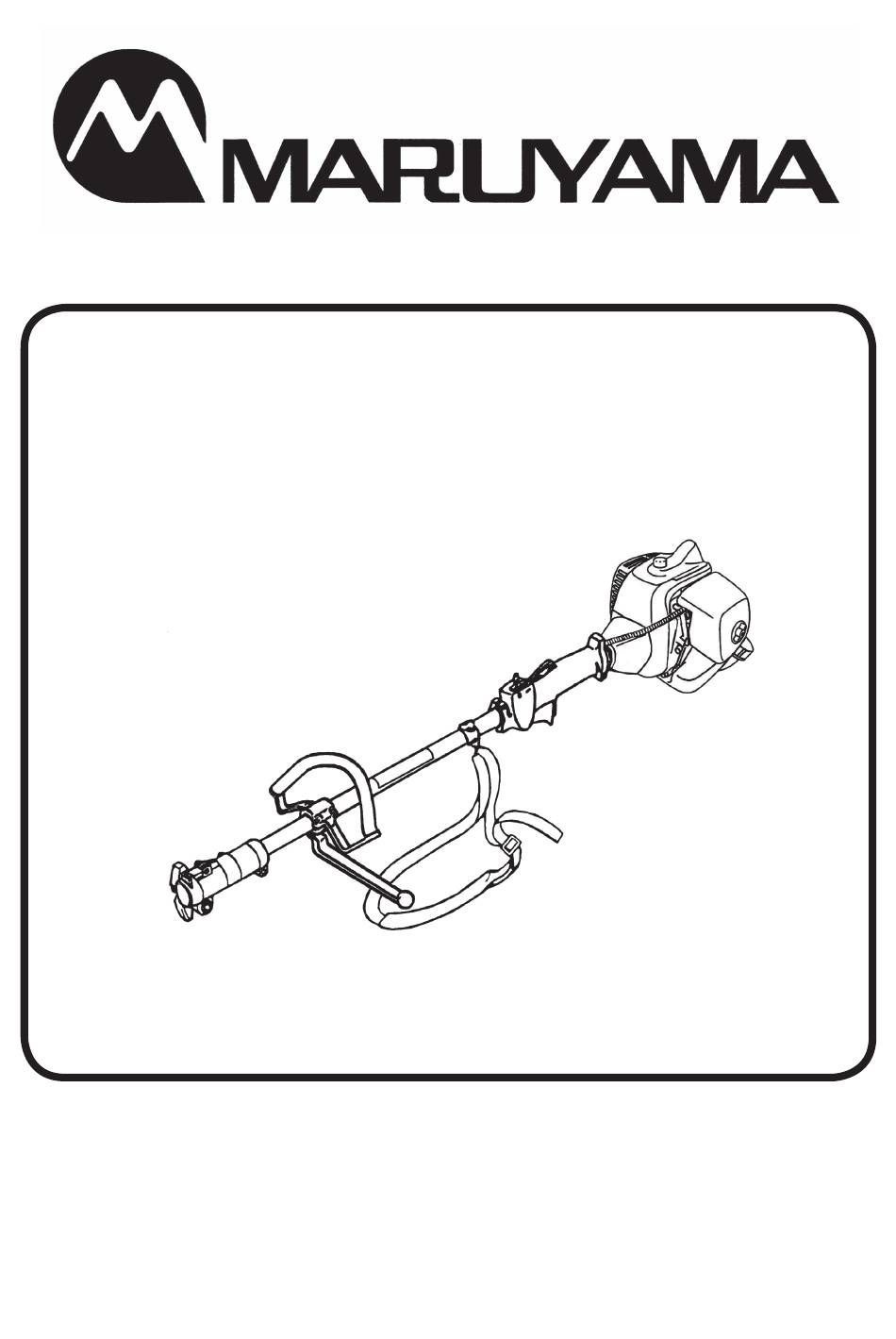

- Page 1 Multi-Cutter Power Unit MC2602RS Owner’s/ Operator’s Manual Completely read and understand this manual before using this product.
-
Page 2: Table Of Contents
It is essential that any operator of this Multi-Cutter reads and understands the contents this manual before using the Multi-Cutter. For additional assistance, contact any local authorized MARUYAMA dealer. Important Notice The benefits to the consumer given by this warranty are in addition to other rights and remedies of the con- sumer under a law in relation to the goods or services to which this warranty relates. -
Page 3: Safety Instructions
5. Inspect the tool attachment and replace any parts that are cracked, chipped or damaged before using the Multi-Cutter. 6. Never use a tool attachment or replacement parts that are not approved by MARUYAMA. 7. Maintain the Multi-Cutter according to the recommended maintenance intervals and procedures in the Maintenance section beginning on page 11. -
Page 4: Fuel Safety
9. Keep a firm footing and balance. Do not overreach. 10. Use the right tool for the job. Do not use the Multi-Cutter for any job that is not recommended by MARUYAMA. ＿ 3 ＿... -
Page 5: Safety And Instruction Decals
Safety and Instruction Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any that are damaged or lost. ON ENGINE （Part No. 246211） Product Description 1. Shaft connector 2. -
Page 6: Assembly
Assembly Loop Handle Installation Loop Handle Screw（4） 1. Place the loop handle and the bottom clamp on the shaft approximately 28cm (11 inches) from the end of the stop switch/ throttle trigger assembly. 2. Install the four screws and nuts. Tighten the screws evenly. 3. -
Page 7: Attaching And Detaching For The Power Unit And The Shaft Assembly
Attaching and Detaching for the Power Unit and the Shaft Assembly Attaching Shaft Coupler First, loosen the clamping knob before Positioning attaching the shaft assembly to the shaft cou- Lever pler. Note: Do not over loosen the clamping Positioning Hole knob or it may fall out. -
Page 8: Before Operation
Before Operation Oil and Fuel 1. Mix and pour fuel outdoors and where there are no sparks or flames. 2. Always shut off the engine before refueling. Never remove the Multi-Cutter fuel tank cap while the en- gine is running or immediately after stopping the engine. WARNING POTENTIAL HAZARD ・... -
Page 9: Mixing Petrol And Oil
Recommended Oil Type Only use a two-stroke engine oil formulated for use in high-performance, air-cooled two-stroke engines. IMPORTANT: Do not use two-stroke oil intended for water cooled outboard motors. This type of two- stroke engine oil does not have the additives for air-cooled two-stroke engines and can cause engine damage. -
Page 10: Starting And Stopping
4. If the engine fails to start after three to four pulls, follow the instructions in the Cold Starting Procedure section above. If the engine fails to start after you follow the above procedures, contact an authorized MARUYAMA dealer. To Stop the Engine 1. -
Page 11: Idle Speed Adjustment
Turn the screw out (counter-clockwise) to decrease the engine idle speed. If idle speed adjustment is necessary, and after adjustment the cutting attachment rotates or the engine stalls, stop using the Multi-Cutter immediately! Contact your local authorized MARUYAMA Dealer for assistance and servicing. ＿ 10 ＿... -
Page 12: Maintenance
Maintenance Air Filter Maintenance Interval Knob ・The air filter should be cleaned daily, or more often when working in extremely dusty conditions. ・Replace after every 100 hours of operation. Air Filter Cleaning 1. Remove the foam element. 2. Clean the foam element with warm, soapy water. Let the element dry completely. -
Page 13: Cylinder Cooling Fins
Cylinder Cooling Fins Maintenance Interval ・ The cylinder cooling fins should be cleaned after every 25 hours of operation, or once a week, whichev- er comes first. ・ Air must flow freely around and through the cylinder cooling fins to prevent engine overheating. Leaves, grass, dirt and debris build-up on the fins will increase the operating temperature of the engine, which can reduce engine performance and shorten engine life. -
Page 14: General Cleaning And Tightening
・ Always turn off your Multi-Cutter before you clean or perform any maintenance on it. The MARUYAMA Multi-Cutter will provide maximum performance for many, many hours if it is maintained properly. Good maintenance includes regular checking of all fasteners for correct tightness, and cleaning the entire machine. -
Page 15: Troubleshooting
・Throttle wire has come loose ・Tighten throttle wire Engine lacks power or stalls ・Dirty air filter ・Clean or replace air filter when cutting If further assistance is required, contact your local authorized MARUYAMA service dealer. Specifications MC2602RS Weight, kg ※1 Engine Displacement, cm 25,4... - Page 16 Manufacturing: Maruyama Mfg. Co., Inc. 4-15 Uchi-kanda 3-Chome, Chiyoda-ku Tokyo 101-0047 Japan Tel. 03-3252-2281 P/N.241962-00 GB 1905 IN...
