Summary of Contents for REDGUM Brand RGFEP1

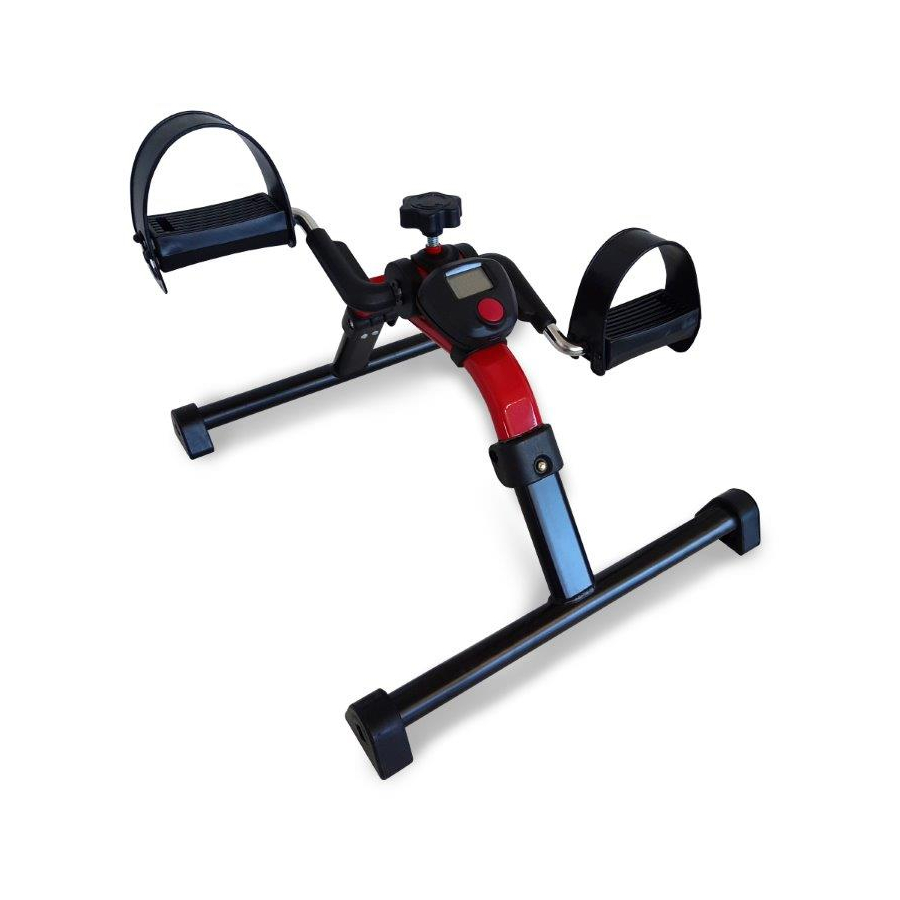

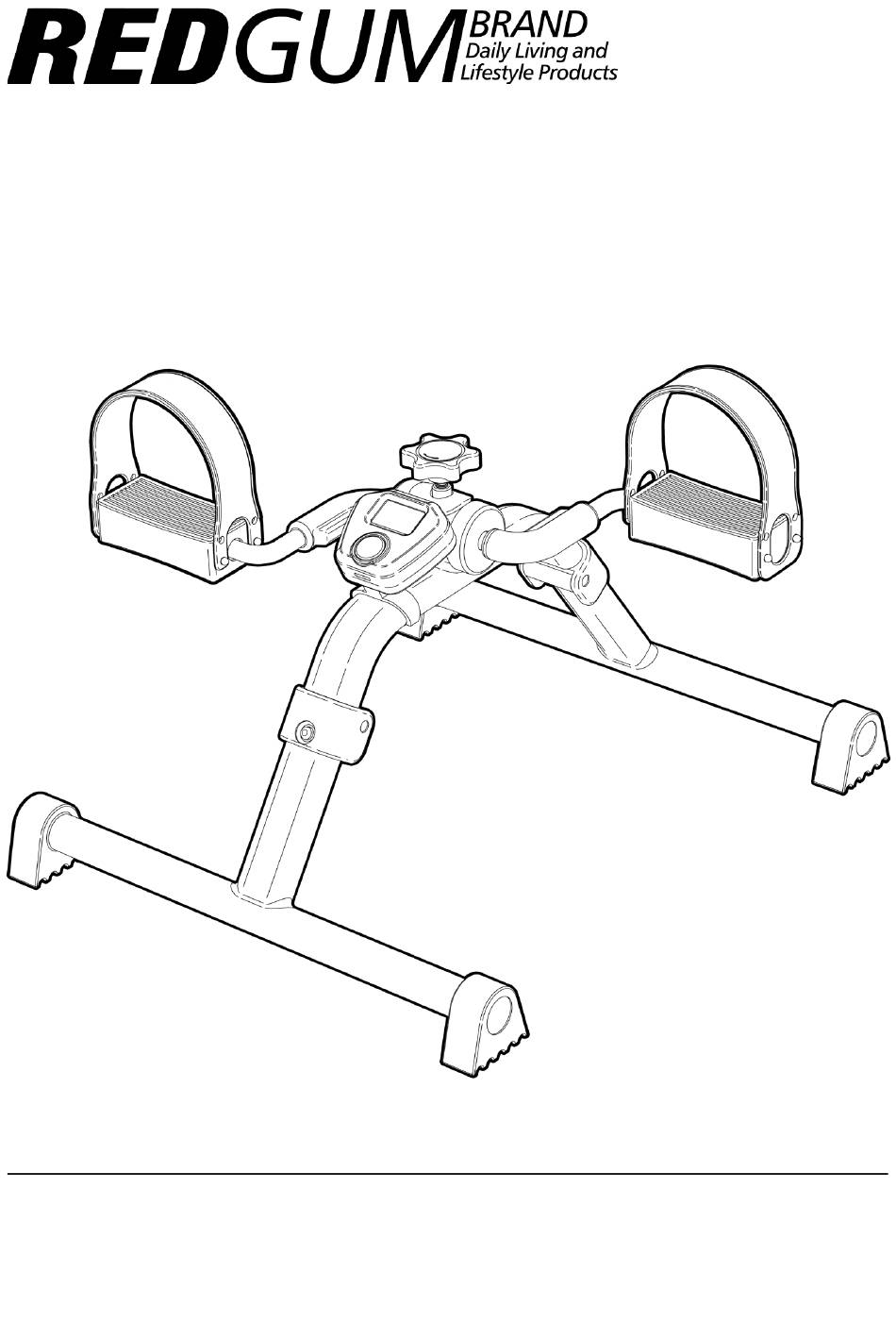

- Page 1 PEDAL EXERCISER RGFEP1 USER MANUAL Please read and keep these instructions redgumbrand.com.au...
- Page 2 PEDAL EXERCISER user manual. Any information contained in this user manual shall not be photocopied, reproduced or translated into any other languages without the prior written consent of REDGUM Brand. REDGUM Brand strives to provide the highest quality products possible.
- Page 3 CONTENTS INTRODUCTION - INTENDED USE PRODUCT OVERVIEW - FEATURES / SPECIFICATIONS SET UP - UNPACK and INSPECT SUPPLIED PARTS ASSEMBLY - UNFOLD LEGS ASSEMBLY - INSTALL BATTERY IN DISPLAY UNIT ASSEMBLY - FIT DISPLAY UNIT AND TENSION WHEEL OPERATION - TENSION ADJUSTMENT OPERATION - PEDAL STRAP ADJUSTMENT OPERATION - DISPLAY UNIT CONTROLS USAGE GUIDELINES - DO’s + DON’Ts...
- Page 4 INTRODUCTION Thank you for purchasing this quality REDGUM Brand product. If you have any issues or questions about the pedal exerciser please contact your supplier or REDGUM Brand direct: T: +61 8 9248 4180 E: sales@for-de.com.au A: 1 Business Way, Malaga Western Australia 6090 INTENDED USE This product has limitations and should be used in accordance to these guidelines.
- Page 5 - Product Weight: 2.2kg IMPORTANT NOTE: Weight limit is not applicable if product is used properly. This unit is not designed to support a user’s weight. Please contact REDGUM Brand if you would like any further information on the pedal exerciser. redgumbrand.com.au...
- Page 6 SET UP - UNPACK and INSPECT SUPPLIED PARTS Ensure you have been supplied with the following parts: - We recommend that you visually inspect the pedal exerciser parts prior to assembly. - Ensure all packaging material has been removed from parts before assembling. BODY (x1) TENSION...
- Page 7 ASSEMBLY - UNFOLD LEGS Please follow these steps to unfold the pedal exerciser legs correctly: 1. Take one leg and unfold it as shown on the Potential Pinch Point image (be aware of potential pinch points). 2. Repeat the process for the other leg. 3.
- Page 8 ASSEMBLY - INSTALL BATTERY IN DISPLAY UNIT Please follow these steps to install battery in display unit: 1. Flip display unit upside down, press 2. Drop the front cover down to remove. the slot in and rotate the front cover out. IMPORTANT NOTE: Battery must go behind 4.
- Page 9 ASSEMBLY - FIT DISPLAY UNIT AND TENSION WHEEL Please follow these steps to fit display Tension Wheel unit and tension wheel: 1. Place display unit on products frame make sure the holes at the top are aligned. 2. Screw tension wheel into the tapped hole Display Unit until you feel resistance.
- Page 10 OPERATION - TENSION ADJUSTMENT Please follow these steps to adjust the pedaling tension: 1. Rotate the wheel clockwise to increase the tension. 2. Rotate the wheel anti-clockwise to decrease the tension. IMPORTANT NOTE: DO NOT OVER TENSION when adjusting the tension control wheel. redgumbrand.com.au...
- Page 11 OPERATION - PEDAL STRAP ADJUSTMENT Please follow these steps to adjust the pedal straps (two settings): 1. Remove straps from pedals. 2. Align the desired strap holes with the pedal adjustment points. 3. Push the pedal strap in and make sure they are fixed in position. Strap Holes Location Pins redgumbrand.com.au...
- Page 12 OPERATION - DISPLAY UNIT CONTROLS Please follow these steps to operate the display unit: Power On: Move the pedals or press the button. Rest Mode: When pedalling has stopped count is displayed. Count: Press the red button once to display pedal revolution count and calorie count. Total Count: Press the red button again to display pedal revolution count and total count.
- Page 13 - Keep others including children & pets away from equipment when in use. - We recommend that enclosed shoes are worn while using the pedal exerciser. If you have any issues or questions about the pedal exerciser please contact your supplier or REDGUM Brand direct. redgumbrand.com.au...
- Page 14 PRODUCT CARE - INSPECTIONS / CLEANING INSPECTIONS We suggest that the pedal exerciser is visually checked periodically for signs of damage or wear prior to use. Overall check following: - Plastic components (pedals/display unit etc) are not damaged or cracked - Pedals work as required - Pedal straps are not damaged CLEANING...
- Page 15 If you have any issues or questions about the pedal exerciser please contact your supplier or REDGUM Brand direct on: T: +61 8 9248 4180 E: sales@for-de.com.au...
- Page 16 DISTRIBUTOR: Proudly Australian Owned and Operated redgumbrand.com.au...
