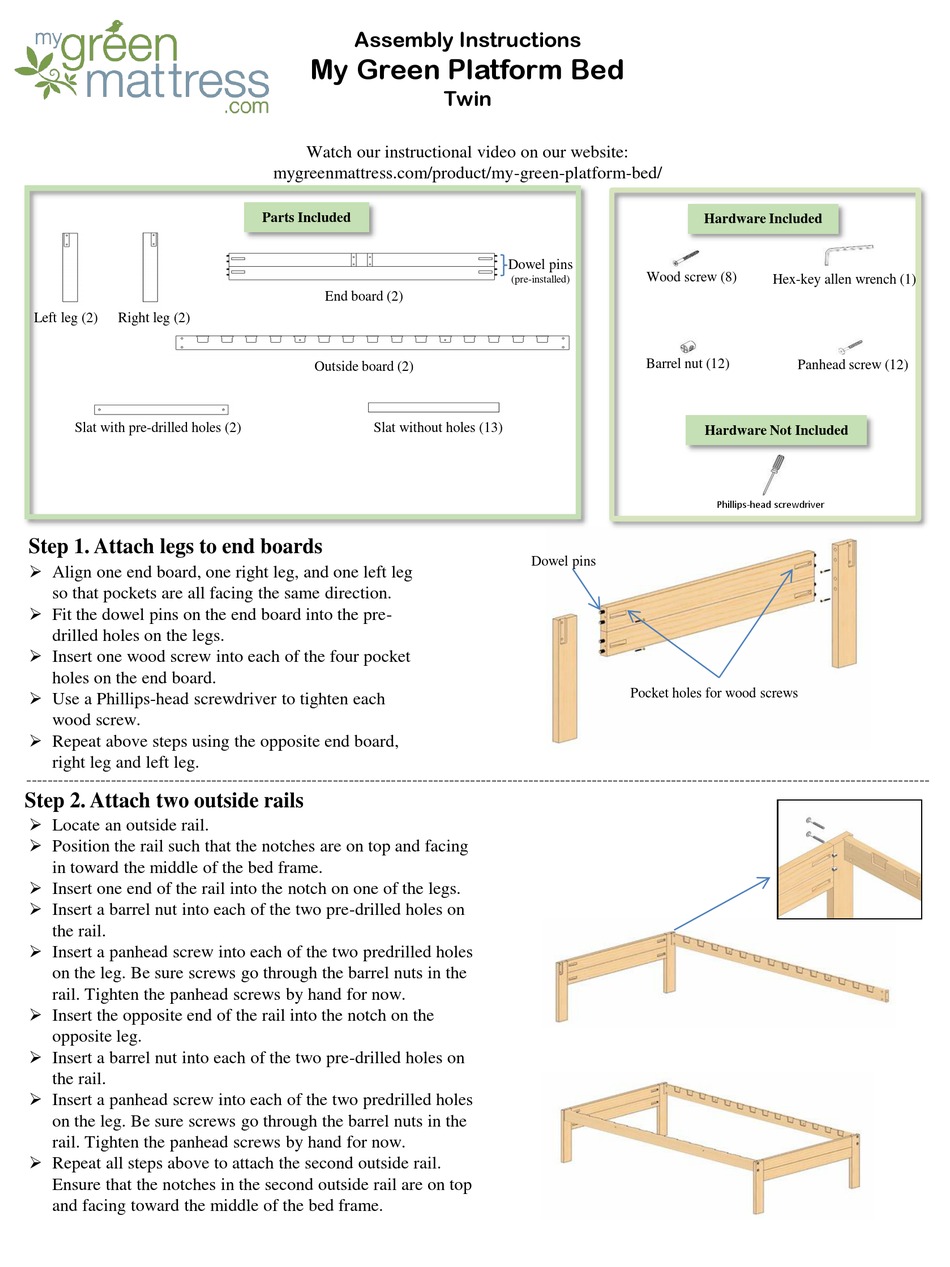

My Green Mattress My Green Platform Bed Twin Assembly Instructions

Left leg (2) Right leg (2)
Slat with pre-drilled holes (2)
Step 1. Attach legs to end boards
 Align one end board, one right leg, and one left leg
so that pockets are all facing the same direction.
 Fit the dowel pins on the end board into the pre-
drilled holes on the legs.
 Insert one wood screw into each of the four pocket
holes on the end board.
 Use a Phillips-head screwdriver to tighten each
wood screw.
 Repeat above steps using the opposite end board,
right leg and left leg.
Step 2. Attach two outside rails
 Locate an outside rail.
 Position the rail such that the notches are on top and facing
in toward the middle of the bed frame.
 Insert one end of the rail into the notch on one of the legs.
 Insert a barrel nut into each of the two pre-drilled holes on
the rail.
 Insert a panhead screw into each of the two predrilled holes
on the leg. Be sure screws go through the barrel nuts in the
rail. Tighten the panhead screws by hand for now.
 Insert the opposite end of the rail into the notch on the
opposite leg.
 Insert a barrel nut into each of the two pre-drilled holes on
the rail.
 Insert a panhead screw into each of the two predrilled holes
on the leg. Be sure screws go through the barrel nuts in the
rail. Tighten the panhead screws by hand for now.
 Repeat all steps above to attach the second outside rail.
Ensure that the notches in the second outside rail are on top
and facing toward the middle of the bed frame.
Assembly Instructions
My Green Platform Bed
Watch our instructional video on our website:
mygreenmattress.com/product/my-green-platform-bed/
Parts Included
End board (2)
Outside board (2)
Slat without holes (13)
Twin
Dowel pins
(pre-installed)
Dowel pins
Hardware Included
Wood screw (8)
Hex-key allen wrench (1)
Barrel nut (12)
Panhead screw (12)
Hardware Not Included
Phillips-head screwdriver
Pocket holes for wood screws
