for Volkswagen MFD3/RNS510,
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle's software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
Version 29.01.2013
TV-Free
Video-in-motion Interface
TF-MFD3
Skoda Columbus
and Seat Trinax
navigation systems
TF-MFD3
Advertisement
Table of Contents
Related Manuals for dvblogic TF-MFD3
Summary of Contents for dvblogic TF-MFD3
- Page 1 TV-Free Video-in-motion Interface TF-MFD3 for Volkswagen MFD3/RNS510, Skoda Columbus and Seat Trinax navigation systems Legal Information By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not accept any liability for material damage or personal injury resulting, directly or indirectly, from installation or operation of this product.

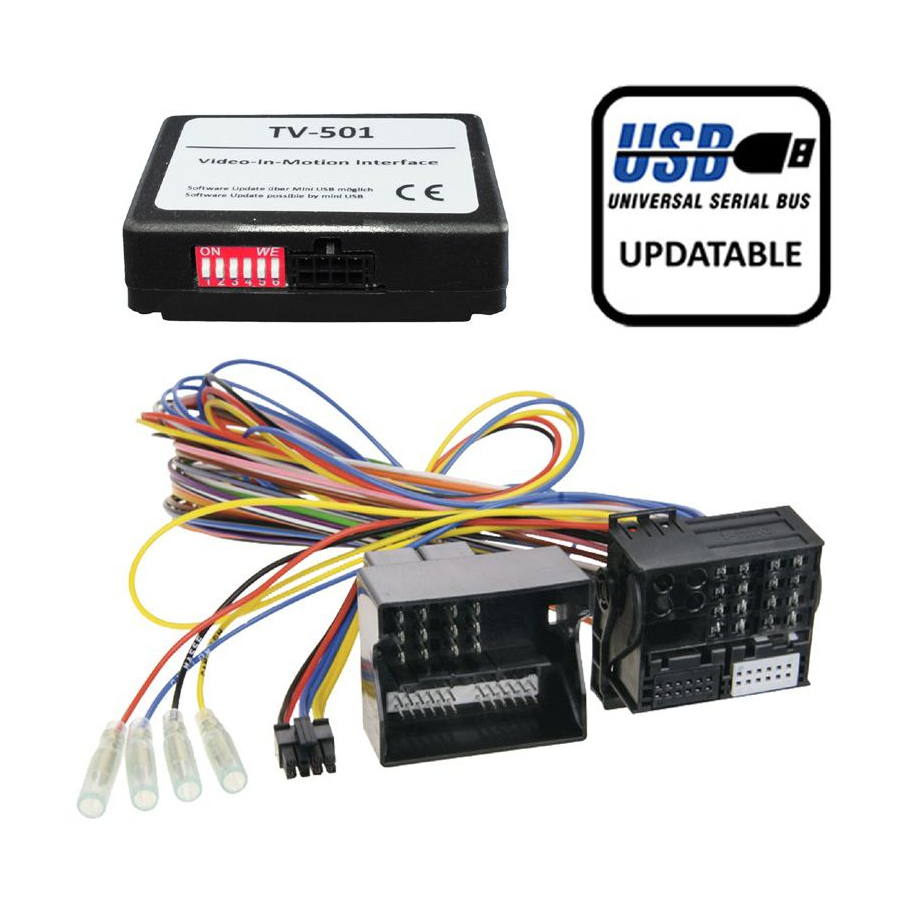

- Page 2 1.1. Delivery contents Take down the SW-version and HW-version of the interface boxes, and store this manual for support purposes. CAN-box TV-500 Harness HW_____ SW_____ TV-VW02 Version 29.01.2013 TF-MFD3...
- Page 3 Dip 3 – no function Dip 4 – no function Dip 5 – CAN-bus termination resistor on the vehicle side Dip 6 – CAN-bus termination resistor on the head-unit side 1.4. Pin-assignments Pin-assignment vehicle connector Cable colour Assignment Version 29.01.2013 TF-MFD3...
- Page 4 2. Disconnect Quadlock connector from the backside of the navigation computer and connect it to harness TV-VW02. If the original Quadlock connector carries 12pin inserts, disconnect the inserts and connect them to harness TV-VW02. Connect TV-VW02 to the navigation computer. Version 29.01.2013 TF-MFD3...
- Page 5 4. Specifications Operation voltage 10.5 – 14.8V Stand-by power drain <2mA Operation power drain ~60mA Power consumption ~0,08W Temperature range -30°C to +80°C Weight Measurements (box only) W x H x D 76 x 27 x 54 mm Version 29.01.2013 TF-MFD3...
