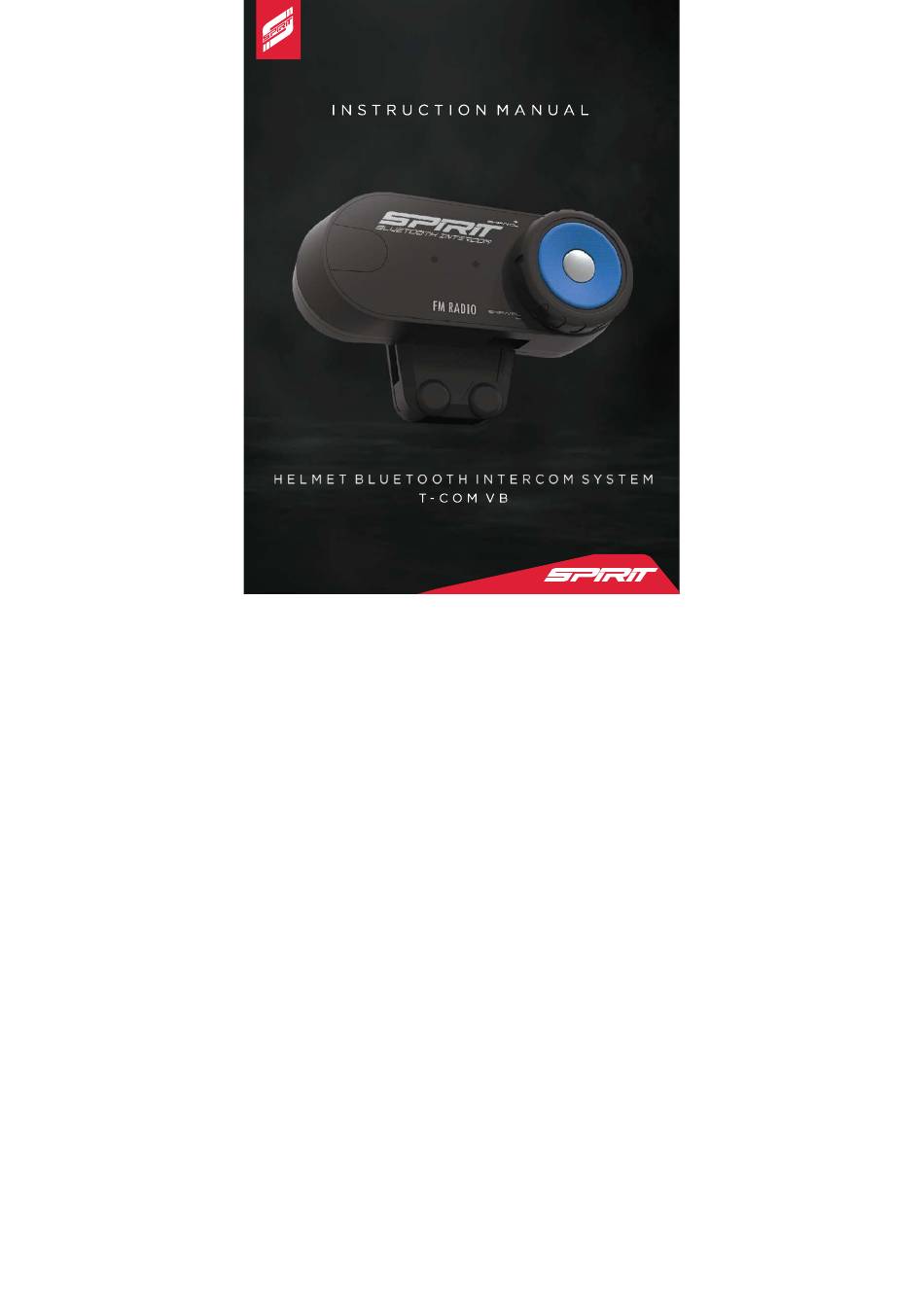

Spirit T-COM VB Instruction Manual

Helmet bluetooth intercom system

Hide thumbs

Table Of Contents

Table of Contents

Need help?

Do you have a question about the T-COM VB and is the answer not in the manual?

Questions and answers

Summary of Contents for Spirit T-COM VB

Page 2: Table Of Contents
Contents: Warranty Details Welcome General Safety Instructions Motorcycle BluetootlfProduct Features Parts List Technical Specification Product Controls Fitting to your helmet T-COMVB functions TCOM-SC functions Troubleshooting...
Page 3: Warranty Details
Helmet BIuetootI1’Intercom Kit Warranty Details The product is guaranteed to be free from defects in workmanship and parts for a period of 6 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired or replaced at our discretion.
Page 4: Welcome
Welcome Congratulations on choosing to buy T-COMVB / TCOM-SC. By doing so you now have the assurance and peace of mind that comes with purchasing a product made by one of the leading manufacturers. All products brought to you are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 6 months Warranty.
Page 5 Motorcycle Helmet BIuetooth”Kit Product Features • Complete system for all your communications needs while riding your motorbike. • The Bluetooth’function will keep you connected to your mobile phone, play music and connect with BIuetooth°GPS systems. • The intercom means you can communicate with your pillion or other riders within 800m while you ride.
Page 6: Parts List
Parts List 1. 1(2)=Bluetooth”Receiver 5. 4(8)•FeIted Adhesive Earphone Pads 2. 1(2)=USB Cable 6. 1(2)•Ear Speaker & Microphone Headset 3. 1 Screw Driver 7. 1•Headset Clip & Fastening Screws 4. 1(2)=Power Adaptor Note: Different country may have different power adaptor. Technical Specifications Battery Type: Rechargeable BIuetootI1”Version:2.1+EDR Polymer 400mAh...
Page 7: Product Controls
SKIP/VOL FM RADIO SKIP/VOL...
Page 8: Fitting To Your Helmet
Instructions Fitting the Bluetooth°receiver to your helmet Using the provided screw driver, loosen the Headset Clip screws. 2. Slide the Headset Clip onto the left side of the helmet (when on your head).Take care to place the inside of the Headset Clip under the helmet padding.
Page 9 7. Attach ear speaker to the felted pad. Run the microphone arm along the inside wall of the helmet, to where your mouth will be. the microphone arm is flexible and should to adjusted so it sits in the bast position in front of your mouth. Some helmet have removable to run the speaker and microphone under the padding.
Page 10 T-COMVB ..page8-11 Charging the BluetootlYDevice Before using this device, fully charge the Bluetooth“device. 1. Insert the USB plug of the charging cable into the small USB jack on the headset. Insert the other end of the charging cable into the Power Adaptor or your computer’s USB port.
Page 11 3. Press and hold down the Power/Intercom bukon for 8 seconds to turn on the Bluetooth”devices until you see a red & blue lights flashing. You will also hear a “DuDu” tone when the unit enters pairing mode. 4. Activate the Bluetooth”function on your mobile phone and search for the device.
Page 12 To Start A Conversation Via Intercom 1. Once the two headsets are paired with each other, press the Power/Intercom button on either receiver to begin. 2. Use the Jog wheel to increase or decrease the headset volume. Tip: You only need to press the Power/lntercom button once to establish a connection;...
Page 13 To Play Music Via Bluetootl1”Mp3 Player If you are using a dedicated Mp3 player, the player must be a Bluetooth”enable device and be paired your Motorcycle Bluetooth°receiver. 1. Select music to play directly from your music device (check your Mp3 player instructions for how to do this).
Page 14: Tcom-Sc Functions
TCOM-SC ..page12-16 Charging the BluetootPDevice Before using this device, fully charge the Bluetooth”device. 1. Insert the USB plug of the charging cable into the small USB jack on the headset. Insert the other end of the charging cable into the Power Adaptor or your computer's USB port.
Page 15 in the center of it). You can adjust the TCOM-SC headset speaker volume by turning the dial during a call or adjust the rinp volume when you are not engaged in a call. Volume Increase Volume Decrease SKIP/VOL (turn clockwise) (turn counter clockwise) FM RADIO SKIP/VOL...
Page 16 5. To transfer the sound back to your mobile phone. During a call using your headset, press the Multi-function button for about 2 seconds. if your headset woks with Headset Profile, you just need turn down your headset. 6. To transfer sound from mobile phone to headset. If you make a call using your phone, you can transfer the sound to the headset if the headset is on by pressing the Multi-function button for about 2 seconds.
Page 17 Press A twice » and connect B » A and B begin to intercom. Press C once » and connect B » B and C begin to intercom. Press C twice » and connect A » A and C begin to intercom. How To Make Intercom Calls 1.
Page 18 Tip: To improve the performance of your headset, make sure the volume is set to the highest on your music device. To Answer A Call While Listening to Music 1. Calls will automatically come through the headset while music is playing. To reject a call hold the multi function button down until you hear a beep.
Page 19: Troubleshooting
Tips & Troubleshooting The Bluetooth“ The headset must be charged for at least 4 hours Receiver prior to first use. Refer to Charging the Bluetooth” has no power. Device on page 8(12) for further details. My helmet is The placement of the speakers within the helmet uncomfortable to may require repositioning.
