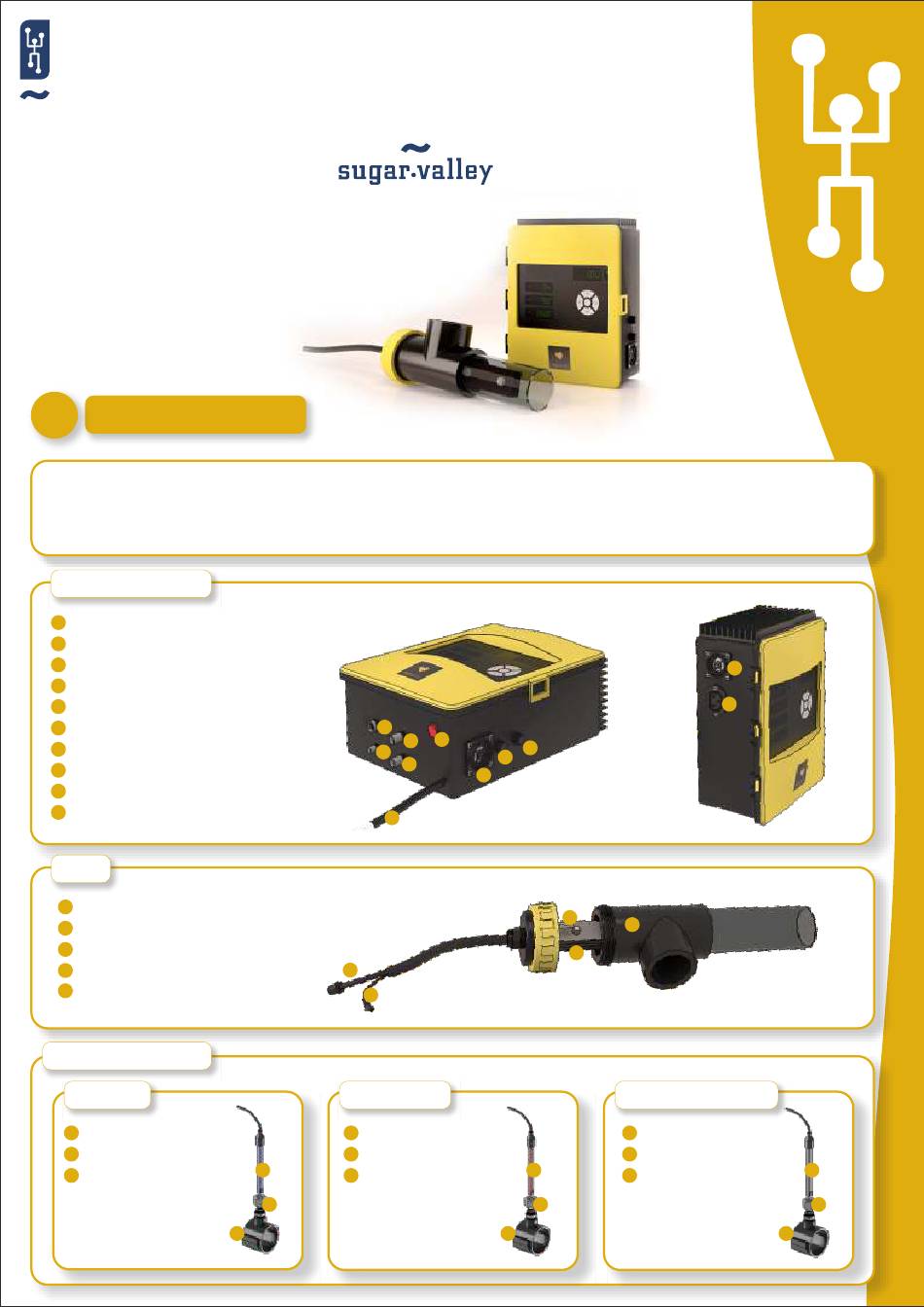

QUICK INSTALATION GUIDE
1

DESCRIPTION

The salt water electrolysis produces Chlorine on the bases of salt water of low salinity (approximately 5g Salt per litre). As
the swimming pool water containing the salt flows through the electrolysis cell, the salt is converted to Sodium-hypo-
chloride (liquid chlorine). Organic mater present in the water is oxidised and eliminated by the chlorine. The Sodium-
hypo-chloride reconverts into salt on its way back to the swimming pool.

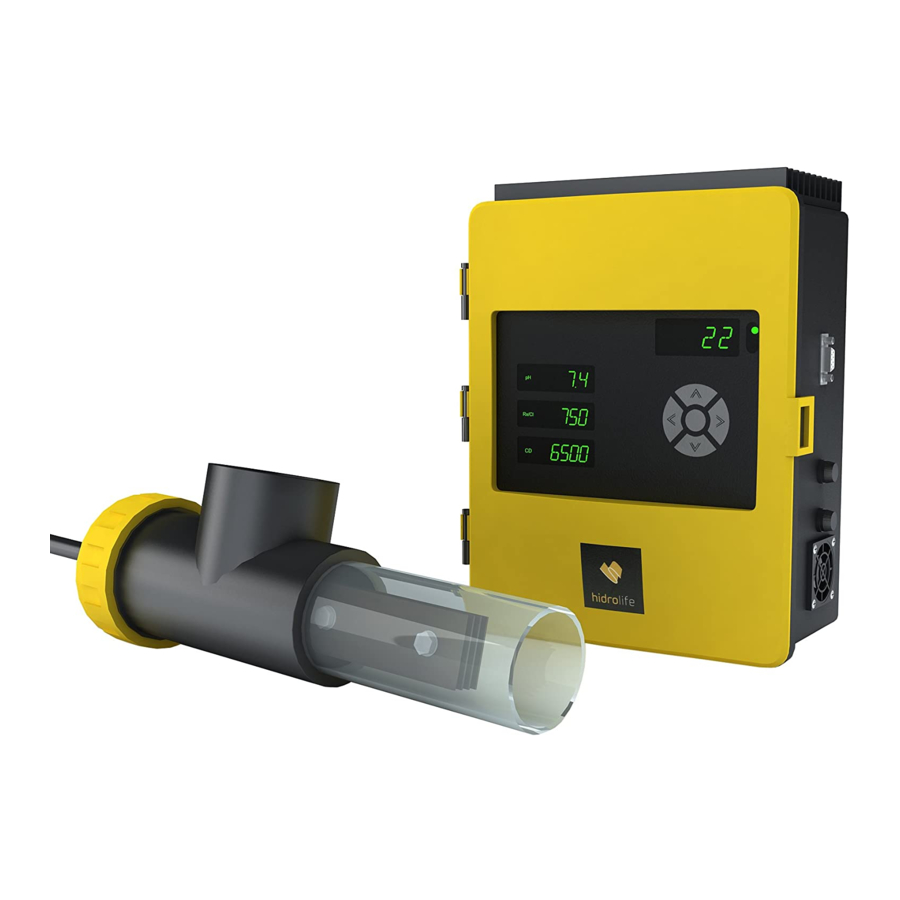

Electronic unit
Electrolysis
2
RCA flow detector
3
pH probe
4
Redox probe
5
Mains connection 220v.
6
3.15A fuse
7
250 mA fuse
8
On-off switch
9
Air vent
10
Acid pump connection
11
Cell
Electrolysis cell
1
RCA flow detector
2
Cell connector
3
Flow/gas detector
4
Cell housing
5
Optional extras
pH Probe
Probe
1
Probe casing
2
Connection housing
3
HIDROLIFE
2
4
3
5
6
3
2
Redox Probe
Probe
1
Probe casing
2
1
Connection housing
3
2
3
9
7
8
10
4
1
1
2
3
10
11
5
Conductividad Probe
Probe
1
Probe casing
2
Connection housing
3
3
1
2
