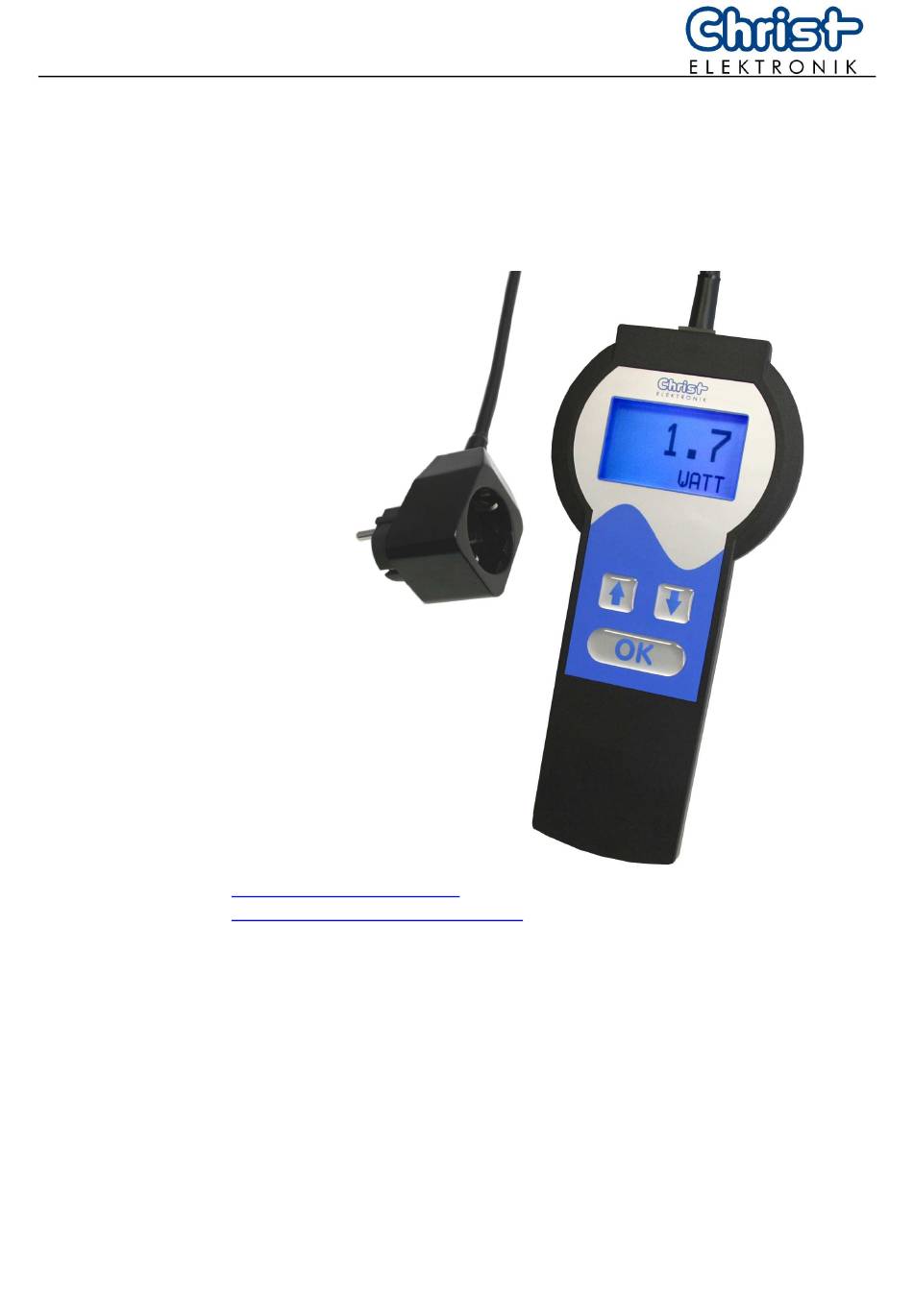

Christ CLM1000 Standard Instruction Manual

Wattmeter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Document-No.
Issue
Dated
Postal address
Phone
Fax
eMail
Internet
Copyright
Technical
modifications
E461755
01
19.01.2011
Christ-Elektronik GmbH
Alpenstraße 34
DE-87700 Memmingen
+49 (0)8331 8371 – 0
+49 (0)8331 8371 – 99
info@christ-elektronik.de
http://www.christ-elektronik.de
It is forbidden to reproduce or process (using electronic systems),
copy or distribute any part of this document. Translation into
another language requires written authorisation. This document is
for the personal use of the owner of the device or Christ-Elektronik
GmbH personnel only.
Christ-Elektronik GmbH reserves the right to modify the
designations, specifications and technical data without prior
notice.
Instruction manual
Wattmeter
CLM1000 Standard

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLM1000 Standard and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Christ CLM1000 Standard

Summary of Contents for Christ CLM1000 Standard

  • Page 1 It is forbidden to reproduce or process (using electronic systems), copy or distribute any part of this document. Translation into another language requires written authorisation. This document is for the personal use of the owner of the device or Christ-Elektronik GmbH personnel only. Technical...

  • Page 2: Table Of Contents

    Table of contents Seite General information....................2 Maintenance......................2 Safety instructions ....................2 Operation ........................3 Brief instruction .......................3 Contrast setting .......................3 CLM1000-Standard operational system..............4 2.3.1. Adjusting menu of the CLM1000-Standard .............5 2.3.2. Display of the CLM1000-Standard .................6 2.3.3. Description of the ON%-function ................7 Error handling......................8 Technical data......................9 CLM1000 variant types and measurings ..............9...

  • Page 3: General Information

    General information Maintenance INFORMATION! This device is made to DIN EN ISO 9001 standard and has left the factory flawless condition regarding technical safety. To maintain this condition and ensure safe operation pay attention to the information and warnings contained in this instruction manual.

  • Page 4: Operation

    Operation Brief instruction Unplug the load (e.g. household appliance, HIFI, PC…) and plug it in the adapter of the measuring device. Subsequently connect the adapter of the measuring device to the socket. All readings are saved even after unplugging the wattmeter or a mains failure.

  • Page 5: Clm1000-Standard Operational System

    CLM1000-Standard operational system The Wattmeter CLM1000-Standard is made for measuring the following electric parameters: • Instantaneous real power [W] • min. and max. of Instantaneous real power [W] • Voltage [V] • min. and max. of Voltage [V] • Current [A] •...

  • Page 6: Adjusting Menu Of The Clm1000-Standard

    2.3.1. Adjusting menu of the CLM1000-Standard By the simultaneous pressing of the two arrow keys for approx. 2 seconds the adjusting menu of the CLM1000- Standard appears. With the arrow keys the different menu options can be started. With exit the adjusting menu will be left. Beginning of a new measurement In this attitude: If the key is pressed, then all...

  • Page 7: Display Of The Clm1000-Standard

    2.3.2. Display of the CLM1000-Standard Meaning Display Mode of Range operation Real power] 0,0 - 4224 Watt Instantaneous real RESET 35.9 power of the consumer. WATT 1(9) Active energy 0,0000 - 99999,99 Energy since begin the RESET 0.0238 [kWh] measuring. (consumption) 00:39 2(9)

  • Page 8: Description Of The On%-Function

    Display Mode of operation Range Meaning Max. Current [A] 0,000 - 16,00 A Maximum current of the 0.231 RESET measuring. Amax 0.196 7(9) Amin Min. Current [A] 0,000 - 16,00 A Minimum current of the measuring. Max. real power 0,0 - 4224 W Maximum real power of 43.7 RESET...

  • Page 9: Error Handling

    Error handling The CLM1000 gives users warning of internal errors which occurred! If there is an error the display is red. Error Meaning Solution Internal error 1! Unplug the CLM1000 and ERROR1 CLM1000 doesn’t start! plug it again! If the error continues to exist the CLM1000 can’t be used.

  • Page 10: Technical Data

    Technical data CLM1000 variant types and measurings CLM1000 H=Home S=Standard P=Professional Modes Range Resolution Real power 0,0 - 4224 W 0,1 W / 1 W ● ● ● Real power (min/max) 0,0 - 4224 W 0,1 W / 1 W ●...

  • Page 11: Display And Operation

    Display and operation Display 128*64 Display with varying background lighting Control elements 3 membrane buttons Measuring principle and accuracy Measuring principle Voltage is measured directly at the load and current is measured by a precision shunt. Measuring rate approx. 1 second Sampling rate approx.

  • Page 12: Faq

    Question 1: The displayed current varies between 0 mA and 3 mA? Answer 1: The measured current almost corresponds to the one of the no-load operation's detection. As a result the displayed value varies between 0 mA (no-load operation detection) and the minimum measurable current of 2 mA. Consider the tolerance of +- 3 mA too.
