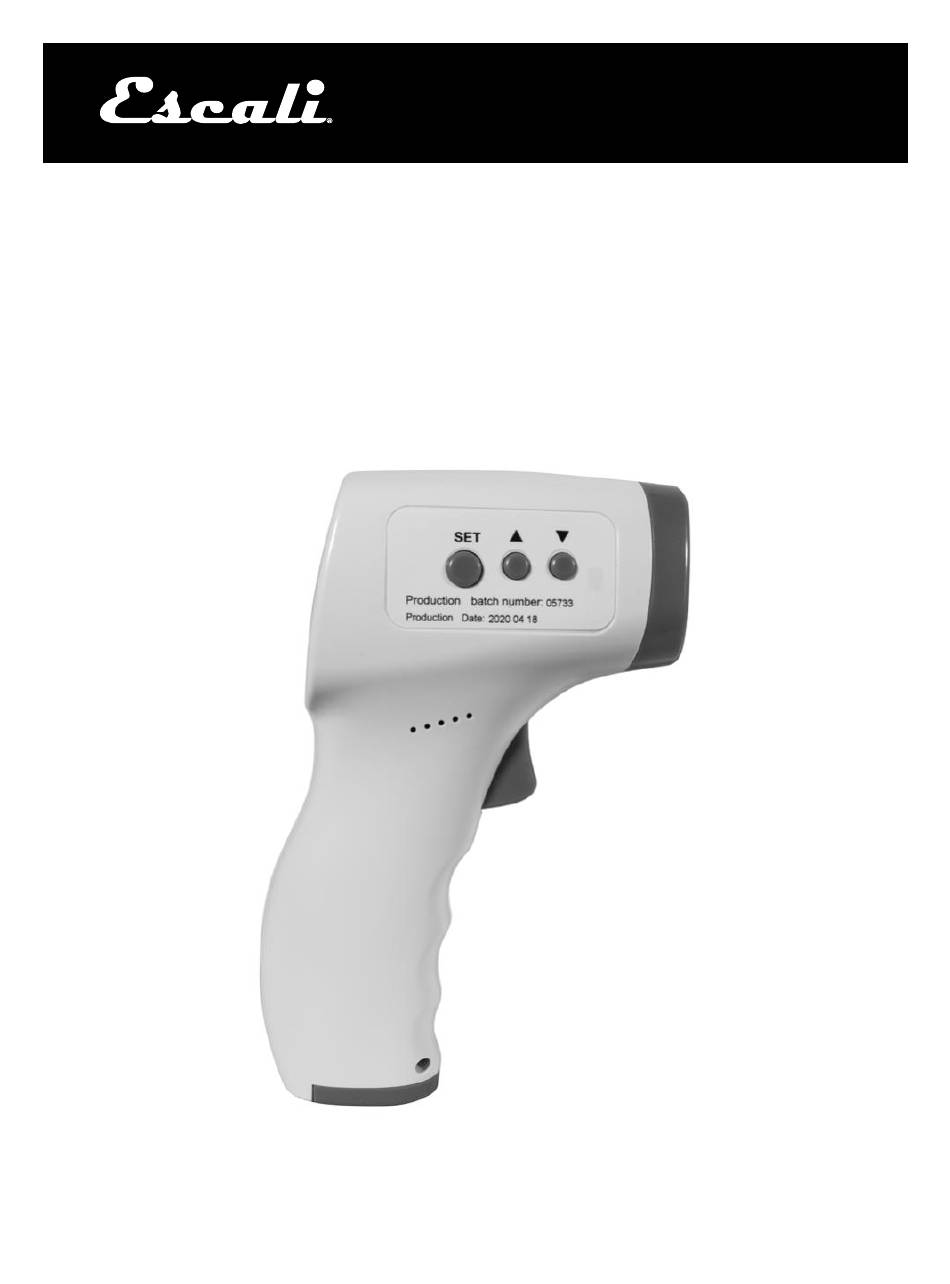

- Page 1 PRODUCT MANUAL Non-contact Infrared Forehead Thermometer Model # BT503 www.escali.com...
-
Page 2: Table Of Contents
Directory Scope of Application ..................3 .......................... Properties of Product ..................3 .......................... Product Characteristics ................... 3 .......................... Special Storage Conditions and Methods ............3 .......................... Technical Index ....................4 .......................... The Product Description and Shape ..............4 .......................... Product Care ....................5 .......................... -
Page 3: Scope Of Application
Scope of Application The body temperature of a subject is displayed by measuring the thermal radiation from the center of the forehead. Properties of Product Product performance measurement error: ≤ ±0.4°F (±0.2°C). Fast measuring: less than 1 second. Easy to use: one button measurement. Non-contact: infrared forehead measurement, no contact with human skin to avoid cross infection. -
Page 4: Technical Index
Technical Index 50 ° F (10°C) ~ 104 ° F (40°C) Normal Working Conditions: Relative Humidity: ≤ 85% Atmospheric pressure: 70kpa - 106kpa Power Supply Voltage: DC 3V (two AAA batteries); Product Size: 149mm x 77mm x 43mm (length x width x height) Host Weight: 172g (excluding electric pool) Body Temperature Measurement Range:... -
Page 5: Product Care
Product Care • This product does not have parts for users to repair or debug. This manual does not provide the circuit diagram, and component list. • Follow the maintenance recommendations in this manual. • This product is suitable for professional or family use. •... -
Page 6: Tips & Settings
Tips 1. You must stay still until you hear the beep for measurement completion. The thermometer cannot be moved away from the position of measuring temperature before the measurement is completed. Doing so may cause inaccuracies. 2. When taking the temperature, the product should be pointed to the center of the forehead, above the brow center, and kept vertical. -
Page 7: Warranty
Switching Temperature Unit Press the “measure switch/trigger” once. When the LCD is lit, press and hold the “SET” button until you see F-1, and release the button. Press the “SET” button twice until you see F-3. Once F-3 is on the display you can now press the UP and DOWN arrow buttons to switch between °C and °F. -
Page 8: Troubleshooting
Troubleshooting The temperature is not displaying. Solution: Try to replace the current batteries with a brand new set. The battery power could be insufficient to operate the thermometer. The temperature of part of the human body appears as "Lo" in the same environment. Solution: The reasons to exclude are as follows: (a) The measurement distance is too far. -
Page 9: Maintenance
Maintenance • External dirt: Clean the dirt with a soft damp cloth or with a cotton swab with medical alcohol wipes. Be careful to not allow too much water, or alcohol to enter the product which may result in damage. •... -
Page 10: Warranty Card
3203 Corporate Center Drive, Suite 150, Burnsville, MN 55306, USA Escali’s liability is limited to two (2) times the cost of the product. © Escali Corp., Minneapolis, MN, USA. All rights reserved. Escali, the Escali logo and other Escali marks are owned by Escali Corp.
