Summary of Contents for Inline Qi-Plate 01477G

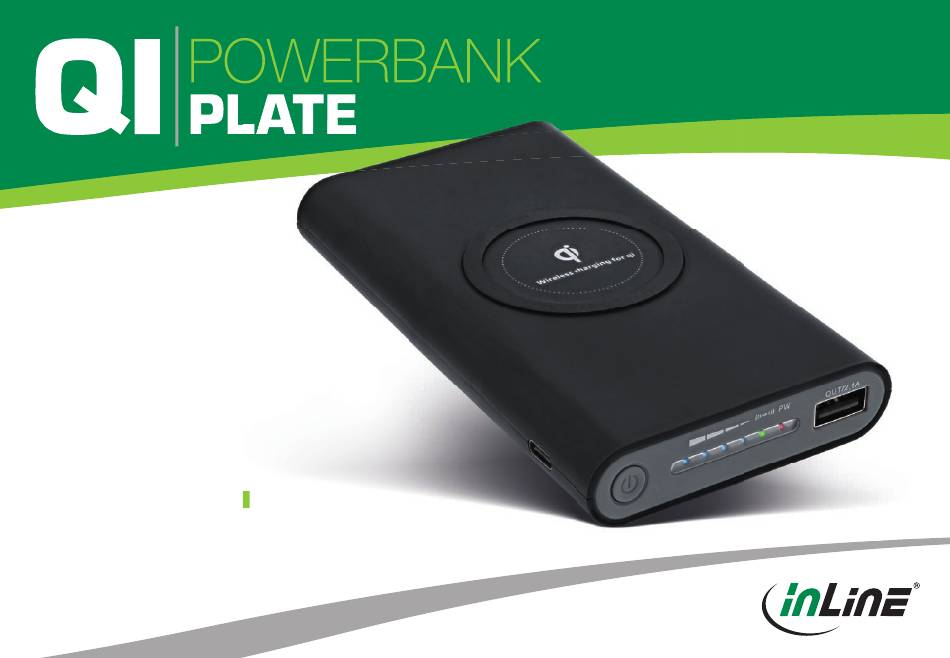

- Page 1 Article-No.: 01477G/S/W 8.000mAh Powerbank, 8.000mAh Powerbank, wireless charging...
-
Page 2: Table Of Contents
CONTENT Content ............. Application / Commissioning ....7.1 Charging the powerbank itself - General information ........connection to a power supply ......6 Validity ............3 7.2 Charging the powerbank itself - Manufacturer..........3 connection to a notebook ......6 Date: ...............3 Charging the powerbank itself - connection to a PC ........7... -
Page 3: General Information
• Micro USB charging cable, appr. 30cm long • User manual • 01477G InLine® Qi-Plate Power Bank, wireless charging, 8000mAh, grey Please check the content of delivery for completeness. • 01477S InLine® Qi-Plate Power Bank, wireless If individual components are missing, please con- charging, 8000mAh, black tact your dealer. -
Page 4: Technical Characteristics
TECHNICAL CHARACTERISTICS • Battery: Lithium-polymer • Output voltage wireless charging: DC5V/1A max. • Battery capacity: 8000mA (the effective capacity • Interfaces: 1x USB type C, 1x micro-USB, 1x USB-A can be about 70-80% of the rated capacity) • Dimensions: 135x73x19mm (LxWxH) •... -
Page 5: Intended Use
INTENDED USE The InLine® Qi-plate powerbank allows you to NOTE! The InLine® Qi-Plate Powerbank includes recharge compatible smartphones and tablets wi- relessly. Alternatively, devices can also be charged a rechargeable lithium-polymer battery. by cable. Parallel charging via induction and cable... -
Page 6: Improper Use
IMPROPER USE Line® Qi-Plate powerbank on the wireless charger to start charging. As soon as the InLine® Qi-Plate powerbank is The following shall be deemed to be improper use charged, the LED display turns on automatically, the within the meaning of a foreseeable misuse: power LED (PW) lights up red and the 4 blue LEDs for indicating the remaining capacity fl... -
Page 7: Charging The Powerbank Itself - Connection To A Pc
The green LED, which indicates the wireless char- ched in 25% steps, the respective LED lights up. As ging process, goes off and the red power LED (PW) soon as all 4 blue LEDs light up, the InLine® Qi-Plate lights up. powerbank is fully charged. -
Page 8: 7.5 Charging Devices Via Usb
7.5 CHARGING DEVICES VIA USB PARALLEL CHARGING OF TWO DEVICES Press the On/Off button to turn on the InLine® With the InLine® Qi-Plate powerbank you have the Qi-Plate powerbank. The LED display confi rms this possibility to simultaneously charge two devices. -
Page 9: Parallel Charging Of Two Devices: Application Example
NOTE! NOTE! If the InLine® Qi-Plate powerbank does not react as desired or if the LEDs do not light up as described above, please remove all devices to be charged (wireless and/or by cable), switch off the InLine® Qi-Plate powerbank by pressing and holding the power button for about 2 seconds... -
Page 10: Maintenance And Cleaning
We will help you to fi nd suitable products for your needs, we provide support in fi nding supply sources, answer technical questions and gladly help you to install your InLine products e.g. by pro- viding up-to-date drivers. Mo. - Fr.: 9am to 5pm... -
Page 11: Accessories
USB C, 40W, available in black or white 31420x InLine® Lightning USB Cable, for iPad, iPhone, iPod, 2m, available in silver/ 3571x InLine® USB 3.1 Cable, Type C aluminium and black/aluminium male to A male, black, various lenghts 31505x InLine® USB power adaptor 3573x InLine®... - Page 12 Keep away from children, please. possible that this manual may still contain typogra- phical defects or printing errors. InLine is a brand of: However, the information in this manual is reviewed INTOS ELECTRONIC AG regularly and corrections will be made in the next Siemensstrasse 11, D-35394 Giessen edition.
