Hytronik HE4030-A Instruction Manual

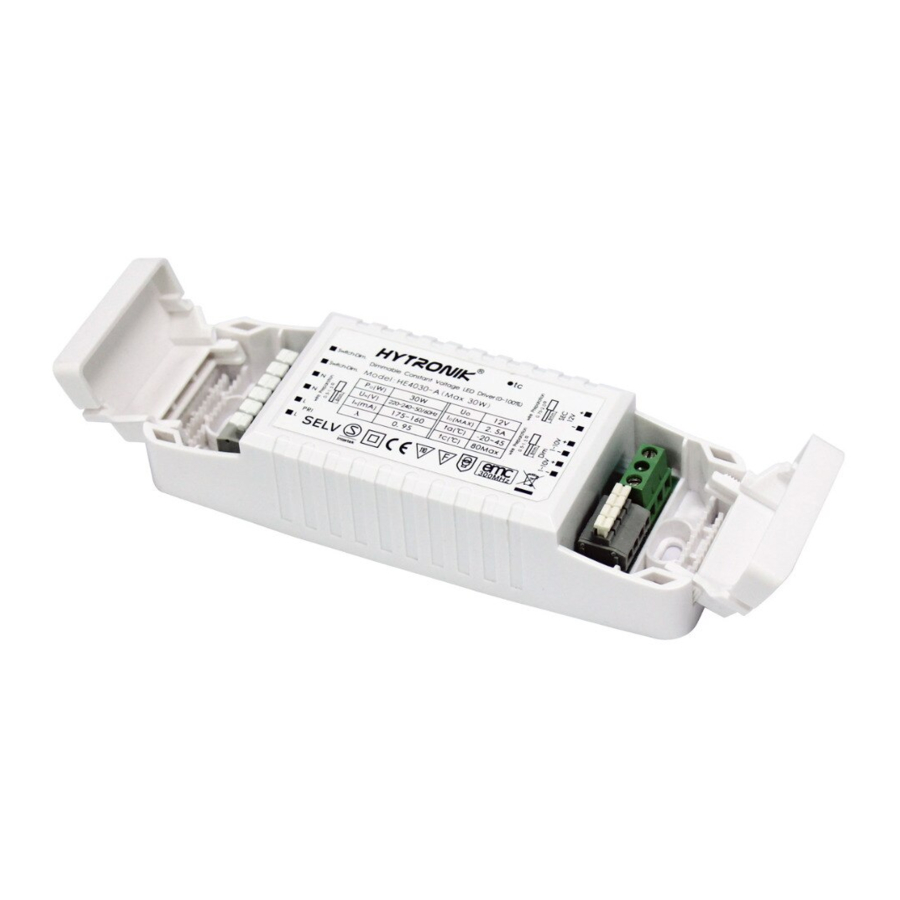

INSTRUCTION MANUAL FOR 30W DIMMABLE LED DRIVER

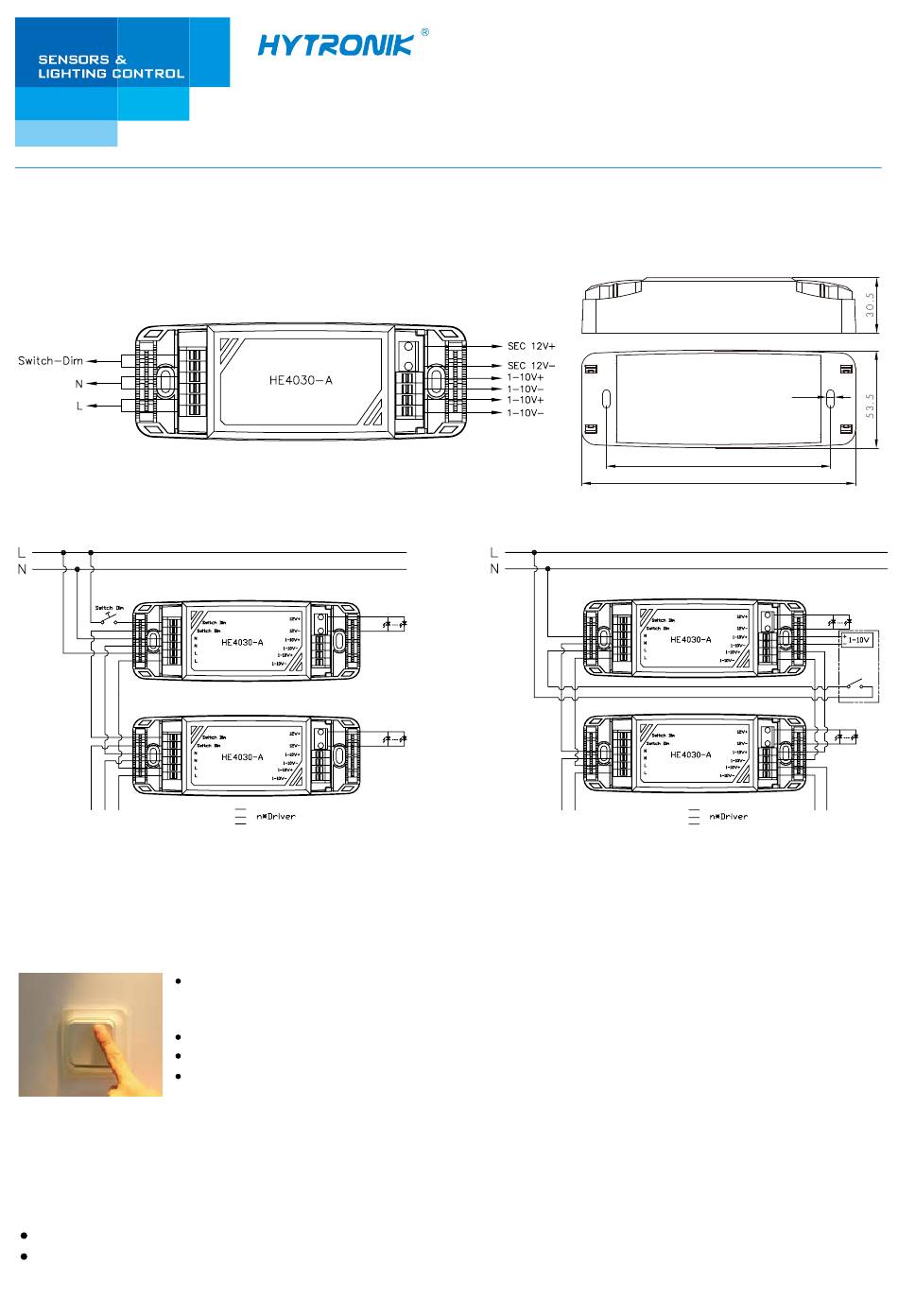

WIRING DIAGRAM

Switch-Dim wiring diagram
Note: 1. Default setting is "1-10V" dimming.
2. This "1-10V" output is isolated, SELV output.
3. To shift dimming from "Switch-Dim" to "1-10V", the end-user should short-circuit "1-10V" first for at least 3s.

SWITCH-DIM

On/off control: short push (<1s) on the switch.
push and hold to dim
Note: Short push should be at least 0.12s, and the time interval between two pushes should be longer than
0.12s also.
Stepless dimming: long push (>1s) on the switch.
For fine tuning of light level: with every other long push, the light level goes to the opposite direction.
Built--in with permanent memory: light returns to the previous dimming level when switched off and on again,
even at power failure.

SYNCHRONIZATION

Up to 50pcs drivers can be connected to the same switch, thanks to the programme. This means there is no need for any additional
synchrony wire in large installation, where many drivers should be controlled by one switch.
Please follow the steps below to achieve synchronization function if more than one driver are connected to the same push botton:
Press the push button for more than 1s (long push), then a short push (<1s). Now the devices are switched off.
Long push the button, the system is now synchronized.
HYTRONIK INDUSTRIAL LIMITED
Room D, 10/f, Tower A, Billion Center, 1 wang Kwong Road,
Kowloon Bay, Kowloon, Hongkong
T: 00852-35197525 F: 00852-30116936
E: info@hytronik.com
MODEL NO.: HE4030-A
CHINA FACTORY
3rd Floor, block C, complex building, 155#, Bai'gang road south,
Bai'gang village, Xiao Jin Kou town, Huicheng district, Huizhou 516023
Tel:86-752-2772020
E: info@hytronik.com
1-10V wiring diagram
F:86-752-2777877
W:www.hytronik.com
4.1
122.8
150
