Summary of Contents for Morel Elate Carbon/Pro 52
- Page 1 Elate Carbon Installation Guide Elate Carbon / Pro 52, 62, 53, 63, 93, 52A, 62A, 53A, 63A, 93A Components Alto tweeter, MT450, MW5, MW6, MW9, MM3, MXT280C, MXT380C...
- Page 2 Thank you for choosing Morel for your car audio speaker solution. Morel prides itself on engineering and producing the best high-fidelity speaker systems. We hope you enjoy your Elate Carbon speakers for years to come. If you have any questions, please contact your Morel dealer or Morel support at: www.morelhifi.com...

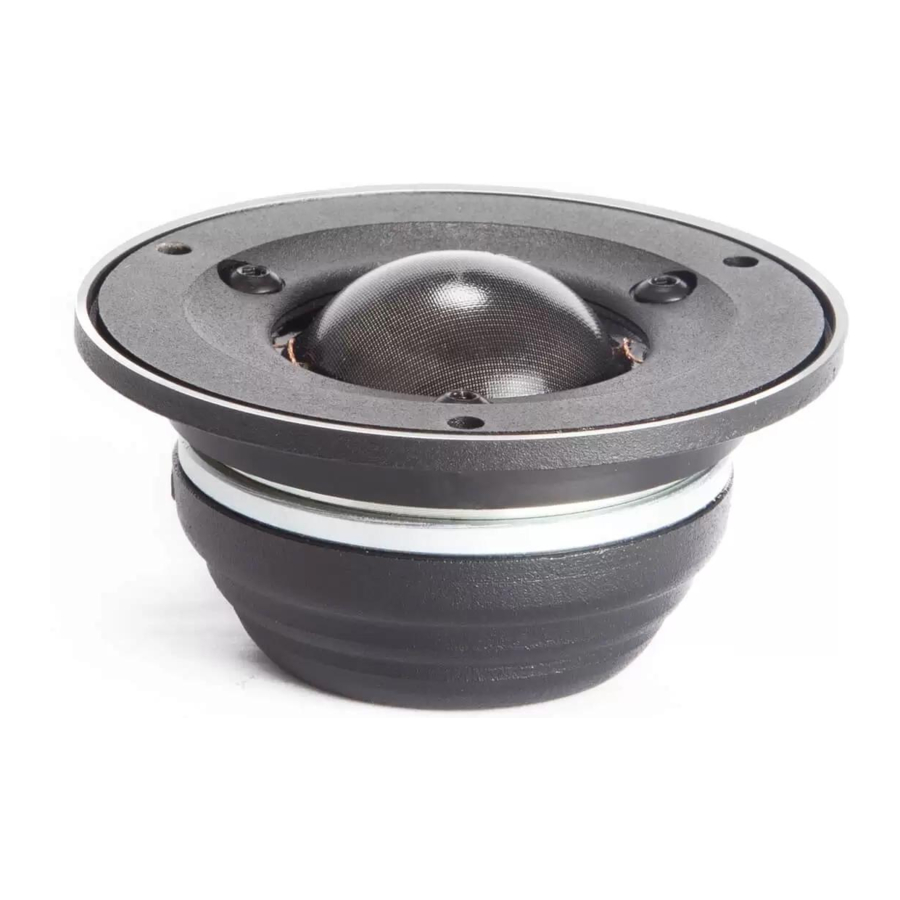

- Page 3 Elate Carbon Components Elate Carbon MW5, MW6, and MW9 Woofer MT450 Tweeter (6”) (5”, 9”) MXT380c/MXT280c Crossover Alto Tweeter (PRO line only) MM3 Midrange...
- Page 4 Woofer, Midrange and Alto Tweeter mounting MW6 woofer MW5 and MW9 woofer 5”: ø122mm (4.80”) 9”: ø192mm (7.56”) Add black tack in 5 spots 6”: ø141mm (5.55”) Alto Tweeter Add black tack Add black tack in 5 spots in 5 spots ø55mm (2.16”) MM3: ø83mm (3.3”)
- Page 5 MT450 Tweeter and Crossover Mounting MT450 Flush Mount MT450 Surface Mount CLICK Crossover mounting...
- Page 6 Crossover Connections 2-WAY Systems Crossover 3-WAY Systems Crossover Standard wire connection/ Bi wire connection/ Bi Amp connection/ Standard wire connection/ Bi wire connection/ Bi Amp connection/ With bridged jumpers No bridged jumpers No bridged jumpers With bridged jumpers No bridged jumpers No bridged jumpers 2-WAY Crossover Alignment System 3-WAY Crossover Alignment System...
- Page 7 Bi wire / Bi amp Bi wire / Bi amp * Woofer highpass: 40Hz-80Hz/12dB * Morel operates a policy of continuous products design improvement, consequently specifications are * When used with an active subwwofer system. subject to alteration without prior notice...
- Page 8 Wishing you many years of sound enjoyment! Morel, Ness Ziona, 70400 Israel. Morel America, Chandler, AZ, USA Tel: +972-8-9301161 Toll free number:1-877-667-3511 Fax: +972-8-9301312 Fax: 1-718-721-1560 E-mail: info@morelhifi.com E-mail: info@morelamerica.com w w w . m o r e l h i fi . c o m...
