Kittec Slab roller RM 1 User Manual

Table of Contents

Download this manual

Users Manual

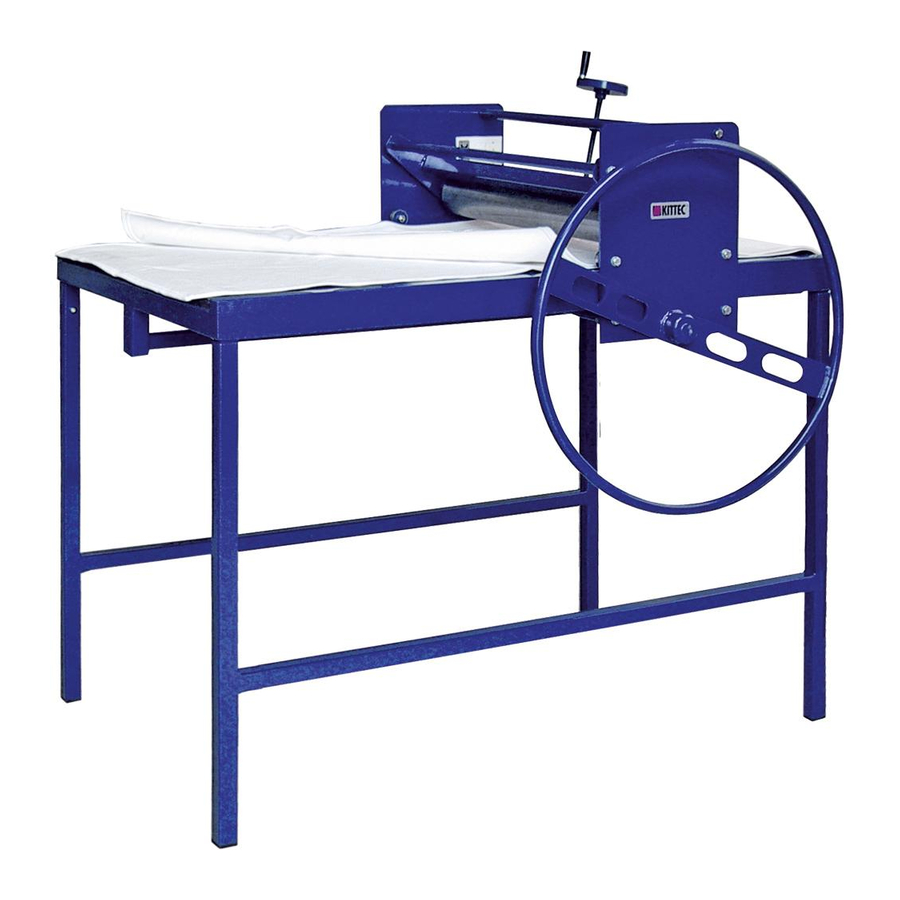

Slab roller RM 1/RM 2

Packing and Transport



For the transport on a pallet the Kittec

slab roller is wrapped with a cover foil.

Please check the slab roller instantly after receipt of the forwarder on damages.

Remove the packing, lift up the roller table laterally that you can put in on after another pair

of legs into the table. Secure the stand with the M5 screws on the four push in corners. Stick

the hand wheel flushing to the groove on the axle of the roller drive. Secure the hand wheel

against twisting or gliding out with the M6 screws on the axle. Fix the linen cloths laterally in

the clip board.

Unlock the roller drive on the left side by turning out the red wing screw until it is freely

movable. To roll the clay put it for protection of the slab roller between the linen cloths. Adjust

the height with the hand wheel. Turn and rotate the clay between the steps. Tip: You can

protect the cloths with foil.

Table of Contents

Do you have a question about the Slab roller RM 1 and is the answer not in the manual?

Page 1 Users Manual Slab roller RM 1/RM 2 Packing and Transport  For the transport on a pallet the Kittec slab roller is wrapped with a cover foil. Please check the slab roller instantly after receipt of the forwarder on damages. Installation Remove the packing, lift up the roller table laterally that you can put in on after another pair of legs into the table.
Page 2 Clean the roller with a damped cloth. Do not use solvent or metal objects for mechanic   cleaning. Additional linen cloths are available from your Kittec -Dealer or from Kittec Kittec GmbH Uhlandstr. 5a D-83024 Rosenheim Phone:+49 (0) 8031/892462 Fax.: +49 (0) 8031/892779...
Page 3 Further details (not necessary for guarantee, but help us to reach you faster if necessary): phone: + (with dialling code) Fax: (with dialling code) eMail: Warranty regulations: We grant three years guarantee on the slab roller. Please send this form back for registration! eMail: service@kittec.de Fax: +49 (0) 8031 / 892779...
