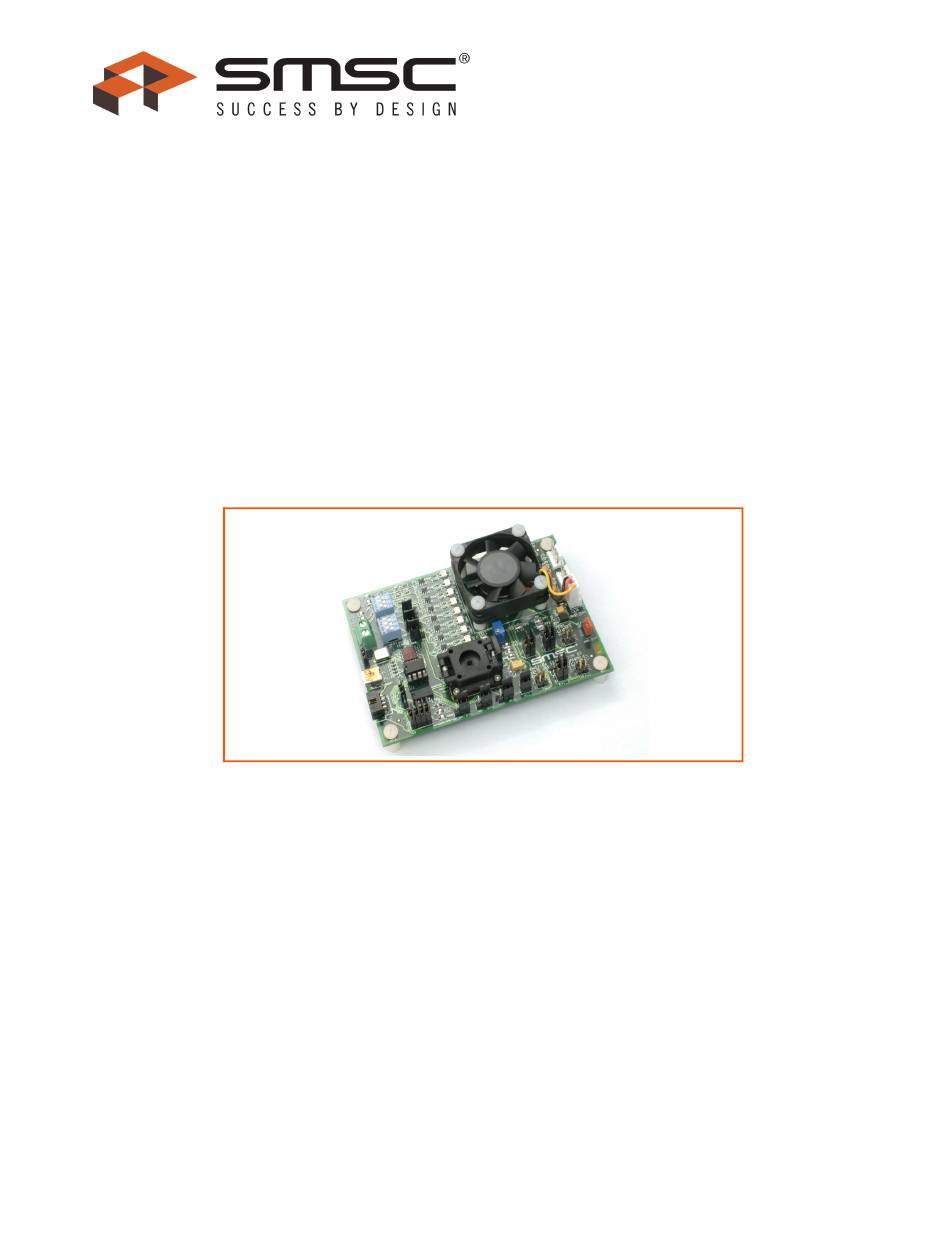

EMC2106 EVB User Manual
Copyright © 2007 SMSC or its subsidiaries. All rights reserved.
The information contained herein is proprietary to SMSC, shall be used solely in accordance with the agreement pursuant to which it is provided,
and shall not be reproduced or disclosed to others without the prior written consent of SMSC. Although the information is believed to be accurate,
no responsibility is assumed for inaccuracies. SMSC reserves the right to make changes to this document and to specifications and product
descriptions at any time without notice. Neither the provision of this information nor the sale of the described semiconductor devices conveys any
licenses under any patent rights or other intellectual property rights of SMSC or others. The product may contain design defects or errors known as
anomalies, including but not necessarily limited to any which may be identified in this document, which may cause the product to deviate from pub-
lished specifications. SMSC products are not designed, intended, authorized or warranted for use in any life support or other application where
product failure could cause or contribute to personal injury or severe property damage. Any and all such uses without prior written approval of an
officer of SMSC will be fully at the risk of the customer. SMSC is a registered trademark of Standard Microsystems Corporation ("SMSC").
SMSC DISCLAIMS AND EXCLUDES ANY AND ALL WARRANTIES, INCLUDING WITHOUT LIMITATION ANY AND ALL IMPLIED WARRAN-
TIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND AGAINST INFRINGEMENT AND THE LIKE, AND ANY
AND ALL WARRANTIES ARISING FROM ANY COURSE OF DEALING OR USAGE OF TRADE. IN NO EVENT SHALL SMSC BE LIABLE FOR
ANY DIRECT, INCIDENTAL, INDIRECT, SPECIAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES; OR FOR LOST DATA, PROFITS, SAVINGS
OR REVENUES OF ANY KIND; REGARDLESS OF THE FORM OF ACTION, WHETHER BASED ON CONTRACT; TORT; NEGLIGENCE OF
SMSC OR OTHERS; STRICT LIABILITY; BREACH OF WARRANTY; OR OTHERWISE; WHETHER OR NOT ANY REMEDY OF BUYER IS
HELD TO HAVE FAILED OF ITS ESSENTIAL PURPOSE, AND WHETHER OR NOT SMSC HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
SMSC EMC2106
Revision 1.1 (08-22-07)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMC2106 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SMSC EMC2106

  • Page 1 The information contained herein is proprietary to SMSC, shall be used solely in accordance with the agreement pursuant to which it is provided, and shall not be reproduced or disclosed to others without the prior written consent of SMSC. Although the information is believed to be accurate, no responsibility is assumed for inaccuracies.
  • Page 2 EMC2106 EVB User Manual 1 Overview The EMC2106 is an SMBus compliant fan controller with up to five (up to 4 external and 1 internal) temperature channels including hardware set thermal / critical shutdown circuitry. The fan drivers can be operated using two methods each with two modes. The methods include an RPM based Fan Speed Control Algorithm and a direct fan drive setting.
  • Page 3: Related Documents

    EMC2106 EVB User Manual Related Documents The CD included with the evaluation board contains the following documents: Evaluation Board Checklist Bill Of Materials Schematic Datasheet Chip Manager Application Register Definition File (EMC2106.xml) SMSC EMC2106 Revision 1.1 (08-22-07)
  • Page 4: Getting Started

    Follow the instructions in the readme.txt file to complete the installation process. 3. Start the EVB Software by selecting the Chip Manager application from the SMSC folder from the Programs Windows Start menu. The EVB will initialize and the Chip Manager Quick Help screen...
  • Page 5 EMC2106 EVB User Manual Figure 2.1 Chip Manager Quick Help Startup Screen SMSC EMC2106 Revision 1.1 (08-22-07)
  • Page 6 EMC2106 EVB User Manual Figure 2.2 Chip Manager Help Screen Revision 1.1 (08-22-07) SMSC EMC2106...
  • Page 7: Board Layout

    The EVB was designed for ease of use and user experimentation with easily accesible jumpers and access to the SMBus data lines. Figure 2.3 below shows the silkscreen for the EMC2106 EVB. Figure 2.3 EMC2106 Board Outline and Silkscreen SMSC EMC2106...
  • Page 8: Hardware Description

    EMC2106 The EMC2106 is an SMBus temperature sensor with 1 internal and 4 external sensor in an 28 pin QFN package. Communications with the EMC2106 sensor is via the SMBus. USB to SMBus Bridge The USB to SMBus bridge is based on an 8051 microcontroller with integrated USB and SMBus interfaces as well as internal flash and RAM.
  • Page 9: Led Indicators

    EMC2106 via Chipman. If a 5V 4-wire fan is available, connectors J1 and J2 can be used to evaluate the EMC2106’s ability to drive and control these types of fans. If PWM1 is to control the 4-wire fan, the appropriate register in Chipman should be set.
  • Page 10 The remote diode on board the EMC2106 EVB has a heater and an optional inline series resistance adjustment. Checking the REC feature of the EMC2106 is accomplished by removing the jumper on JP9. This adds 100 ohms of series resistance to the DN line of the diode connection. To return to 0 ohm series resistance, replace the jumper on JP9.
  • Page 11 2 GPIO6 switch 3 The EMC2106 EVB also allows testing of all the muxed pins as well as voltage input adjustments for the TRIP_SET and VIN4 functions. Table 3.5 summarizes all of the jumpers that appear on page 2 of the schematic SCH-7106.
  • Page 12: Software Description

    ChipMan application. then select Options -> Plot Register Data from the menubar. Once the graph appears, select Control -> Start to begin plotting data. The history plot continuously updates the register data reported by the EMC2106. Figure 4.1below is a typical Temperature History with the external diode starting at room temp and then being heated using the HEATER jumper (JP10).
