I I I I nstallation
nstallation
nstallation
nstallation

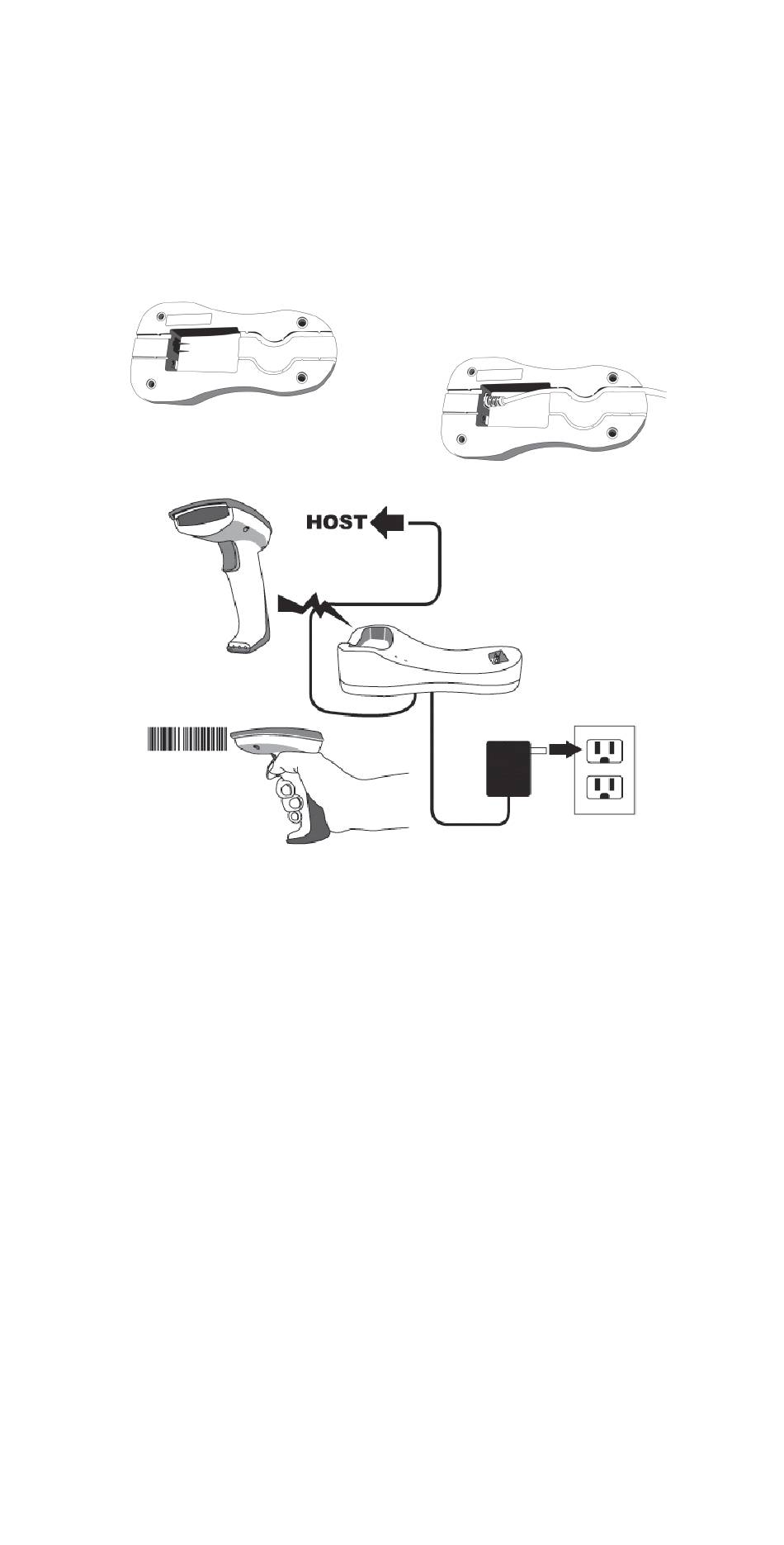

The AS-8520 Wireless Imager is easy to install and use.
Please see the following figure showing the steps to perform
the installation.
Note
Note
* Note
Note: Turn off the host computer before installation.
1.
Connect the interface (I/F) cable to the cradle.
2.
Connect the power cord to the cradle.
3.
Route the I/F cable and power cord through the notch.
4.
Connect the I/F cable to the host computer
communication port.
5.
Connect the AC adapter to the wall outlet.
6.
Place the imager in the cradle and verify the charge
LED is flashing. Charge the battery for at least 8 hours
before the first use.
7.
To verify operation, please link the imager with cradle
first (Refer to "Wireless Connection" in page 5). Point
the imager at the barcode and pull the trigger. The
imager should emit a beep indicating that the barcode
has been scanned and transmitted to the cradle
successfully.
1
