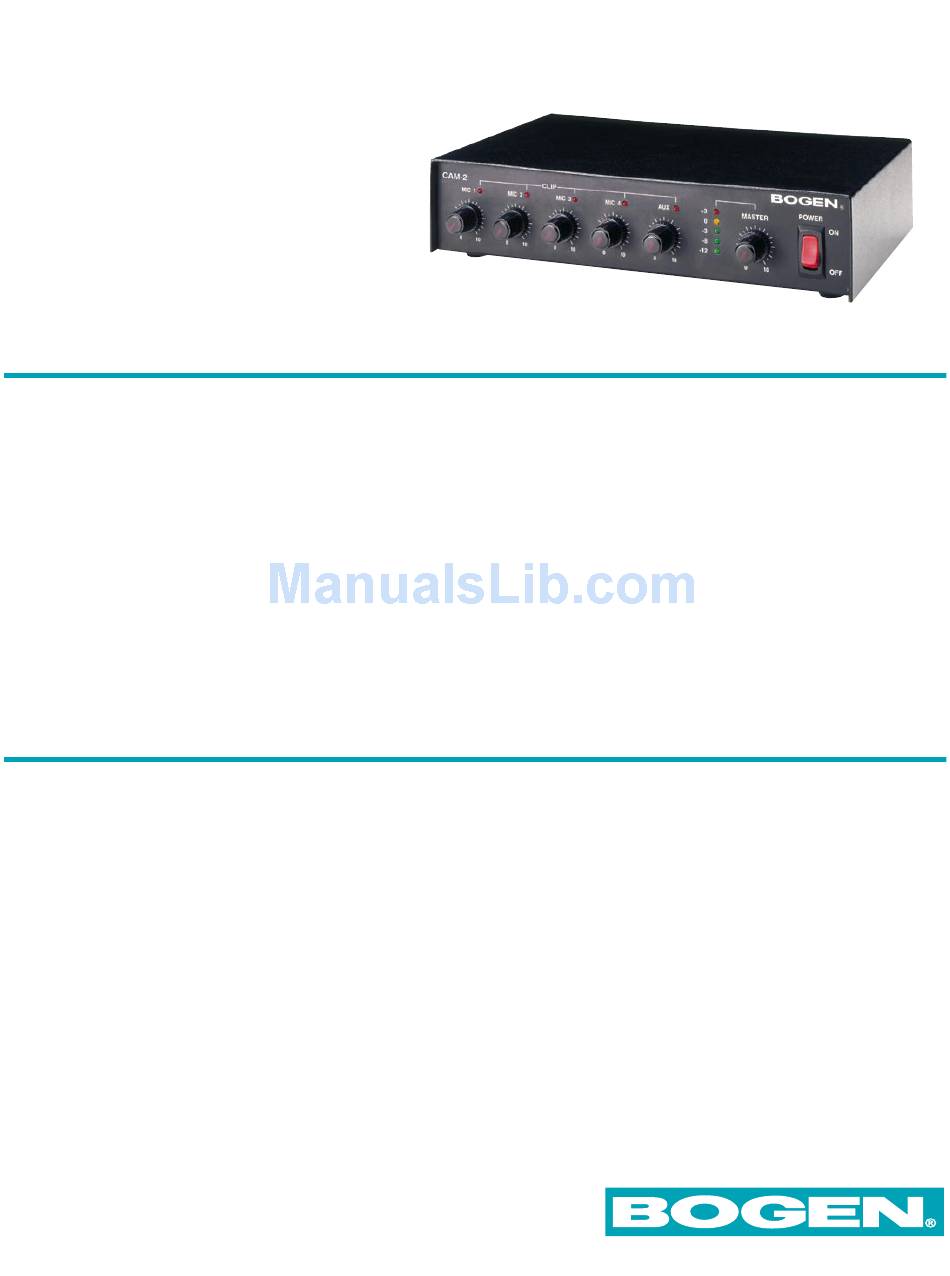

Bogen CAM2 Specifications

Mixer/Pre-amplifier
The Bogen Model CAM2 is a 5-input mixer/pre-amplifier that meets a wide variety of applications.
The CAM2 is particularly well-suited for expanding the number of inputs on Bogen or other public address
amplifiers. The CAM2 provides four professional, low-impedance, balanced microphone inputs through XLR
Description
connectors and one auxiliary input.
Individual phantom power switches for each input allow the use of both dynamic and condenser microphones
on the same unit.A bridging input allows for simple interconnetion of multiple CAM2 mixers for system expan-
sion without the need to sacrifice any mixer inputs. Clipping indicators for each input and an output level
meter provide information to the system operator about sound integrity. Wide frequency response, low dis-
tortion, low-noise and high channel crosstalk isolation ensure superior sound quality. The CAM2's balanced
mixer output can be switched between line level (+4 dBu) or microphone level (-50dBu) for compatibility to
a wide range of sound processing equipment.
The CAM2 is listed by UL and C-UL.
The unit may be rack-mounted with a Model RPK35B Rack Panel Kit (1 or 2 rack spaces high), or vertically
in-wall mounted with a Model WMK1 Wall Mounting Kit.The CAM2 operates from 120V AC, 60Hz.
• 4 Microphone inputs
• Low-impedance, balanced microphone inputs
• 1 High-impedance auxiliary input
• Low-noise, active mixing
Features
• Master volume control
• Input clipping indicator for each channel
• 5 Segment LED output level meter
• XLR microphone input connectors
• Phantom power selectable per mic input
Model CAM2
• Unbalanced line level output
• Balanced XLR output
• Illuminated power switch
• Switchable output level (+4/-50 dBu)
• UL and CSA listed
• Compact size
• Bridging input for connecting together multiple
CAM2 mixers
Specifications subject to change without notice.
© 2001 Bogen Communications, Inc.
Part No. 54-5099-01R1 Printed in U.S.A. 0110
