IQ WIFI QUICK INSTALL GUIDE
FEATURES & OVERVIEW

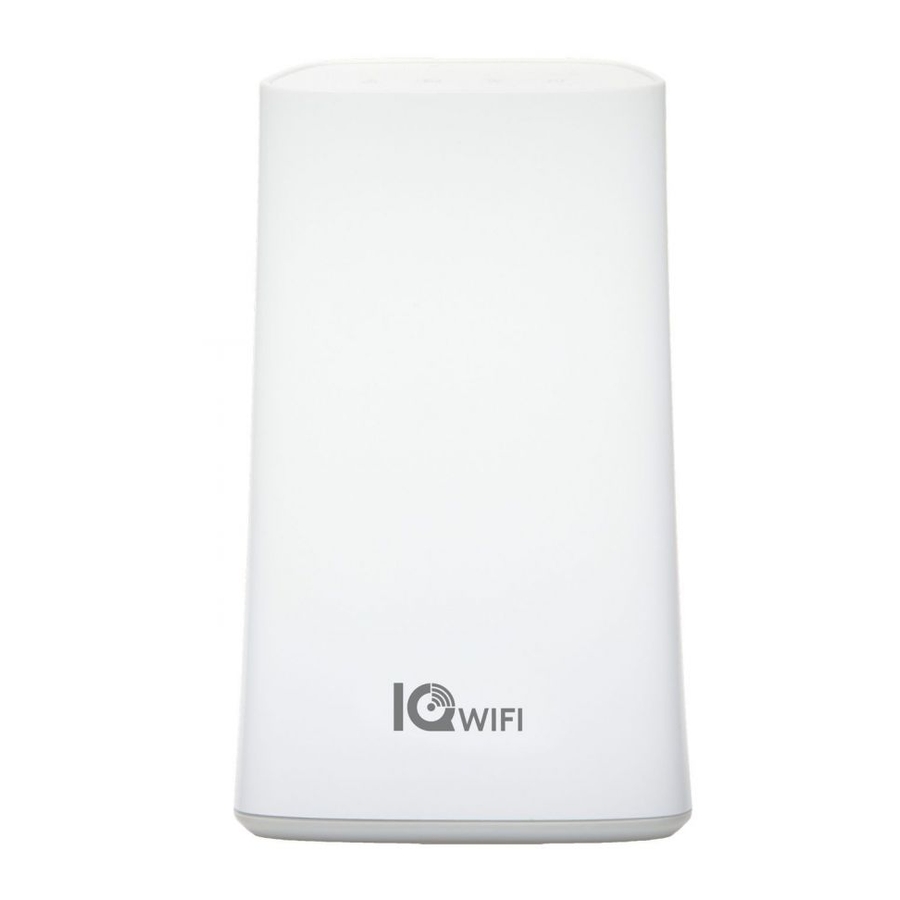

The IQ WiFi is a mesh capable router that
covers every corner of every room with safe,
seamless WiFi.
Features:
• WiFi mesh prioritizes ethernet backhaul
(wired connection) then shared wireless
backhaul (if wired connection isn't available)
• Stand alone or parallel configuration
supported
• Web interface or IQ Panel configurable
• WiFi version 5
• Supports Dual-band 2.4G/5G
• Supports 7 additional Agents (1 Controller)
This is a quick guide for experienced installers only. Refer to technical downloads at http://dealers.qolsys.com (login required)
SPECIFICATIONS
SKU: QW8200-840
Dimensions: 150mm x 89 mm x 57.2 mm
Weight: 172g
Usage: For Indoor use only
Compliance: FCC
Process and Memory: SSoC: MT7621DA
(MIPS1004Kc dual-core 880MHz, SPI NOR Flash
64MB)
Memory: 128MB DDR3 embedded
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Relative Humidity: 10% - 90% RH (non-condensing)
Operating Distance: Up to 130ft
Frequency Type:
Wireless IEEE 802.11 b/g/n 2.4GHz
IEEE 802.11 a/n/ac 5GHz
Wired Type:
LAN and WAN Gigabit Ethernet Ports
LED Indicator: 2 color LED (Green and Red)
Power Supply:
Input: 100-240VAC, 50-60Hz, 0.3A Max
Output: 12 VDC, 1A
Advertisement
Summary of Contents for QOLSYS IQ WiFi
- Page 1 LAN and WAN Gigabit Ethernet Ports LED Indicator: 2 color LED (Green and Red) Power Supply: Input: 100-240VAC, 50-60Hz, 0.3A Max Output: 12 VDC, 1A This is a quick guide for experienced installers only. Refer to technical downloads at http://dealers.qolsys.com (login required)
- Page 2 Note: LED behavior; LED will slowly flash indicating proceeding to the next pairing WPS mode has been enabled. If followed by step. a red flash, pairing was unsuccessful. This is a quick guide for experienced installers only. Refer to http://dealers.qolsys.com (login required)
- Page 3 Installation > Devices > security key WiFi devices > IQ WiFi 3. Touch Save icon 2. Touch the down arrows to make edits to the Network Name (SSID’s) This is a quick guide for experienced installers only. Refer to http://dealers.qolsys.com (login required)
- Page 4 GREEN. Adding Additional Agents: - Add up to 7 agents per Controller for a total of 8 IQ WiFi units. - Ethernet backhaul is supported and will default to wired Great for: -Keeping the security and smart-home devices...
