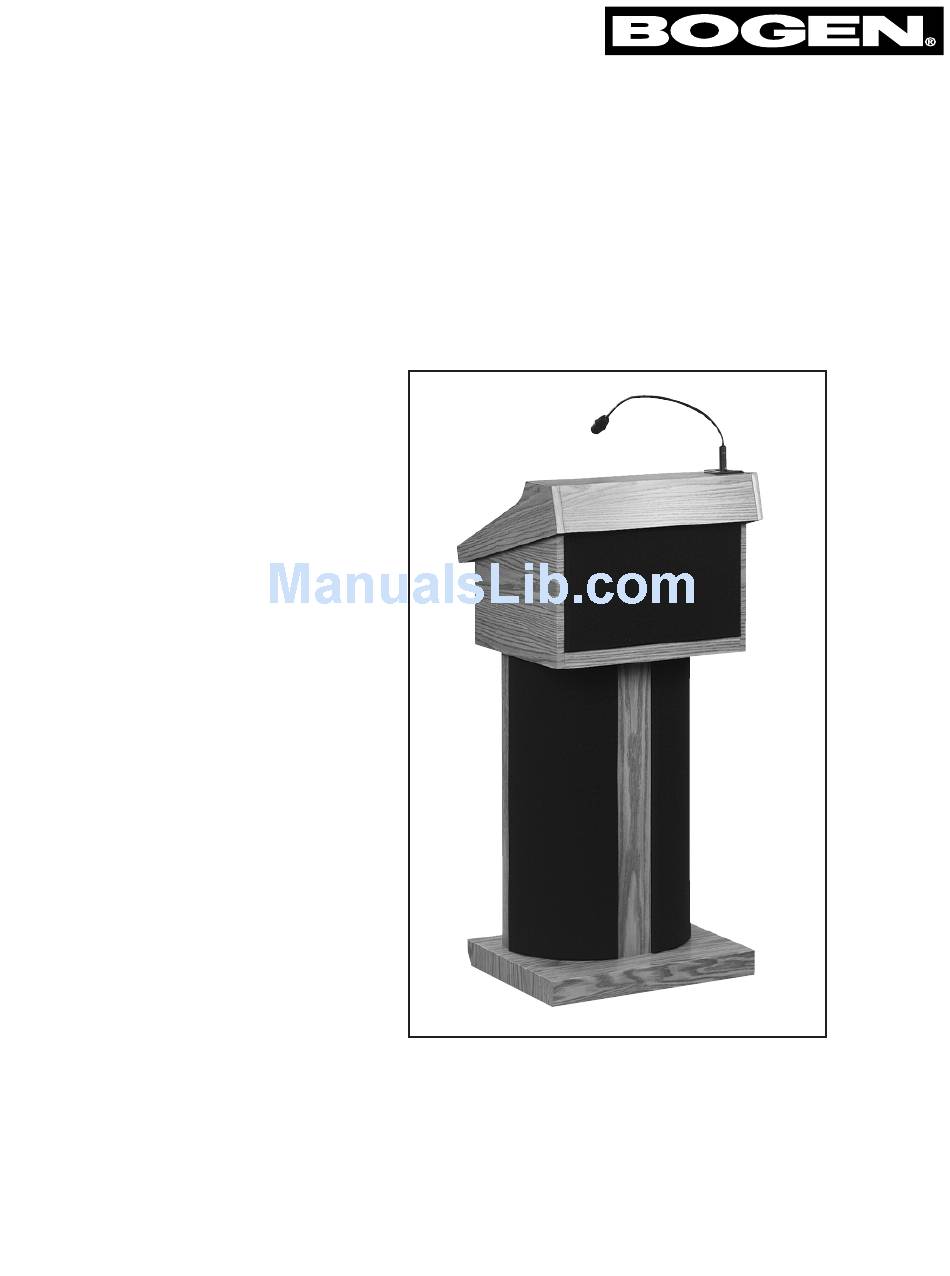

- Page 1 Modular Lectern Array Models MLA40, MLA40T (Top) Instruction Manual © 2000 Bogen Communications, Inc. All rights reserved. 54-5001-02R2 0007 Printed in U.S.A.
- Page 2 The war- ranty will become void if repairs are made by other than the Bogen Service Department or an authorized service agency. Our Applications Engineering Department is available to help you troubleshoot problems with your Bogen equipment.
-
Page 3: System Overview
The podium base contains a 4 speaker array. It connects electrically to the MLA40T table-top section. The MLA40T consists of the amplifier and a 2-speaker array. Note: The MLA40 can be unassembled so that it can also be used as a table-top only lectern, when needed. - Page 4 Set the table top section onto the connecting plate and secure with 4 round head bolts. If using the MLA40 tabletop section alone or the MLA40T, attach the 4 plastic feet to the underside of the tabletop using the 4 round head bolts.
- Page 5 Operation Install Lectern Microphone The gooseneck lectern microphone plugs into the three-pin receptacle located on the top of the lectern. Connect Power Use the power cord supplied. Plug one end of the cord into the receptacle on the lectern labeled AC LINE INPUT. Plug the other end of the cord into a properly grounded three-wire AC receptacle.
- Page 6 Additional Amplifier Functions Install Additional Microphone The lectern amplifier supports an external microphone. Plug the additional microphone into the 3-pin receptacle labeled MIC 1. Use the MIC 1 control to adjust the level. Aux Input The lectern amplifier can accommodate input from an auxiliary (music) source, such as a cassette deck. Connect the source via a mono RCA plug to the jack labeled AUX.
- Page 7 Have all internal servicing performed by a qualified technician. The warranty will become void if repairs are made by other than the Bogen Service Department or authorized service agency. In the event of difficulty, contact our techni- cal support group, 1-800-999-2809, 8:30 AM until 6:00 PM, Eastern Standard Time, Monday through Friday.
-
Page 8: Specifications
Speaker Out (2) — 1/4” mono phone jack Auxiliary AC Power: 300 watts max., unswitched Dimensions: MLA40 — 21-5/8” W x 48” H x 19-1/2” D MLA40T — 21-5/8” W x 17” H x 19-1/2” D Shipping Weight: MLA40T (carton 1) — 53 lbs.
