Elmes Electronic CB32 Installation And Operation Manual

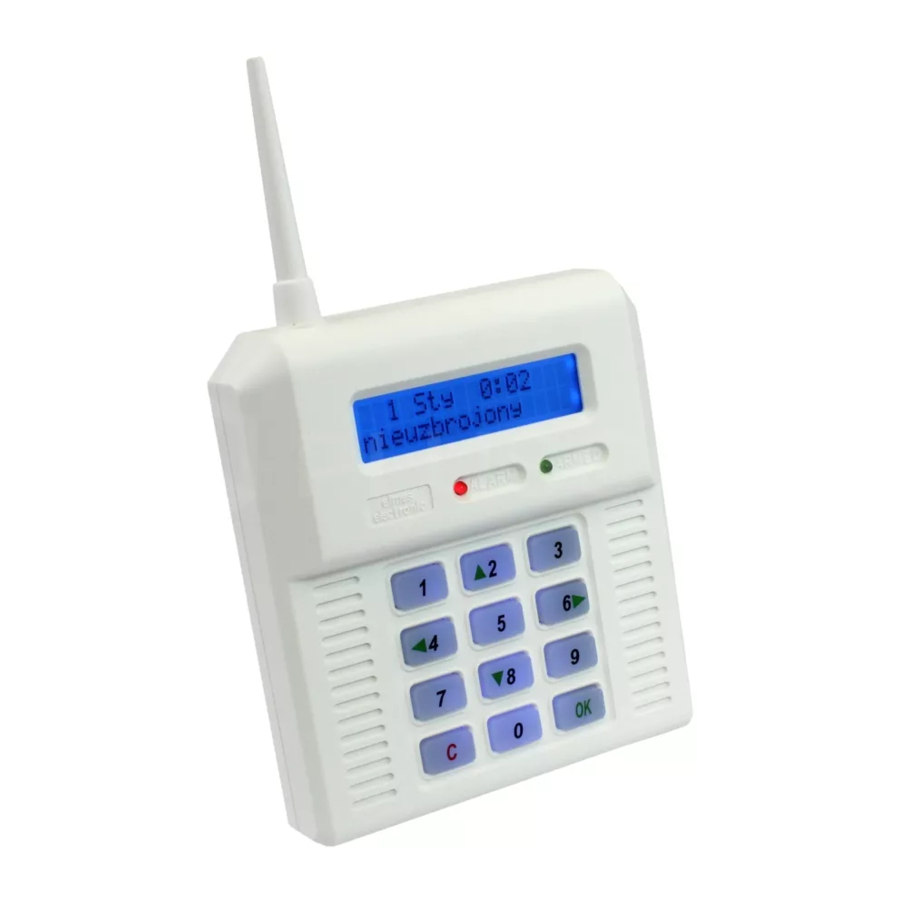

ELMES CB32 CONTROL PANEL
v 1.3 03.2006
Installation and operation manual - contents:
INTRODUCTION..........................................................................................................2
KEYPAD USE AND ARMING METHODS ...............................................................3
ARMING & DISARMING OF ALARM SYSTEM.
1. Arming & disarming alarm using control panel keypad.
2. Arming & disarming alarm using remote control transmitter.
3. Arming the system with bypassing selected alarm zones.
SELECTED FUNCTIONS DESCRIPTION................................................................5
MONITOR OF ALL ALARM DETECTORS
ANTI-SABOTAGE PROTECTION OF EXTERNAL DEVICES
ALARMS MONITORING USING GSM PHONE
MAIN MENU..................................................................................................................5
ALARM MEMORY
FAILURE CHECK
SERVICE SETTINGS
1. Password Change.
2. Event Memory.
3. Alarm Zone Settings.
4. Outputs settings.
5. System Users - adding, editing and removing a user.
6. Times settings.
7. Alarm notification & monitoring by GSM phone.
8. Auxiliary functions settings.
RESETTING PASSWORD CODE OF USER 1
DESIGNING WIRELESS ALARM SYSTEM ..........................................................14
POWER SUPPLY SOLUTIONS
ALARM SYSTEM WITH ELMES CB32 CONTROL PANEL
WIRING DIAGRAMS
SPECIFICATION ........................................................................................................19
LIMITED WARRANTY .............................................................................................20
- 1 -
INTRODUCTION
Elmes CB32 programmable, wireless alarm control panel is designed for use in anti-
burglary, anti-robbery, intrusion detection and access control installations in houses,
flats, shops, offices, etc. It operates with Elmes Electronic made wireless motion
detectors, glass break detectors, magnet contact detectors and key-fob transmitters. Its
three 1A current draw alarm signaling outputs are intended for connecting external
signaling devices such as sirens, bells or strobes and alarm notification devices as phone
dialer. The panel features a real-time clock, non-editable memory log of last 256 events
and may also be programmed to automatically send SMS alarm messages when
connected to an external GSM phone. The backlit LCD displays appropriate status
information while numeric keypad allows convenient handling and programming of the
3
control panel. In the event of AC power failure, special software procedures minimizing
3
energy consumption allow up to 72-hour autonomy with the use of two internal
4
1800mAh AA type rechargeable batteries. The panel supports up to 16 system users and
4
enables monitoring of up to 32 wireless detectors identified as alarm zones. Each user
and each zone may have any defined name with the length of 16 characters.
5
The CB32 control panel also supports wireless detectors in wired alarm systems. It may
5
be powered from the power supply line of the wired system, and its three signaling
5
outputs can be connected to the alarm detection terminals of a wired control panel.
WARNING! This wireless control panel has been designed to be effective as much
6
as possible. However, there are circumstances that alarm system may fail to operate
6
as expected for variety of reasons. Users and installers are warned that radio
6
signals from wireless detectors and sensors may not reach the CB32 panel receiver
6
under all circumstances that could include metal objects placed on radio
6
transmission path, deliberate jamming or other local radio signal interference.
7
9
General features of Elmes CB32 control panel:
9
- microprocessor architecture, alphanumeric backlit LCD display and real-time clock,
10
- 32 wireless alarm zones (detectors) with user defined name,
11
- identification of 16 users including 4 administrators with defining their names,
12
- arming and disarming of the panel by entering a password (3 to 6 digits security code)
14
on the keypad or with the use of remote control transmitter,
- wide range of alarm zone types for specialized purposes,
15
- functional modes of partial arming of the control panel (day, night modes),
16
- panic and robbery alarm function (call for help) activated by remote control,
18
- interface to GSM phone for monitoring of alarms with SMS/CLIP notification,
- memory of the last 256 events, such as arming, disarming, alarms and power failures,
- acoustic signaling (beeps) of entry in a "chime type" zone,
- entry delay activated either with remote control or by entering of the delayed zone,
- programmable "entry" and "exit" delay times in the range from 0 to 99 seconds,
- monitoring of detectors (zones) presence by the control panel,
- three transistor type alarm outputs with up to 1A current draw, overload protection
and user defined signaling purpose (alarm, AC power failure or system arming),
- 2 -
