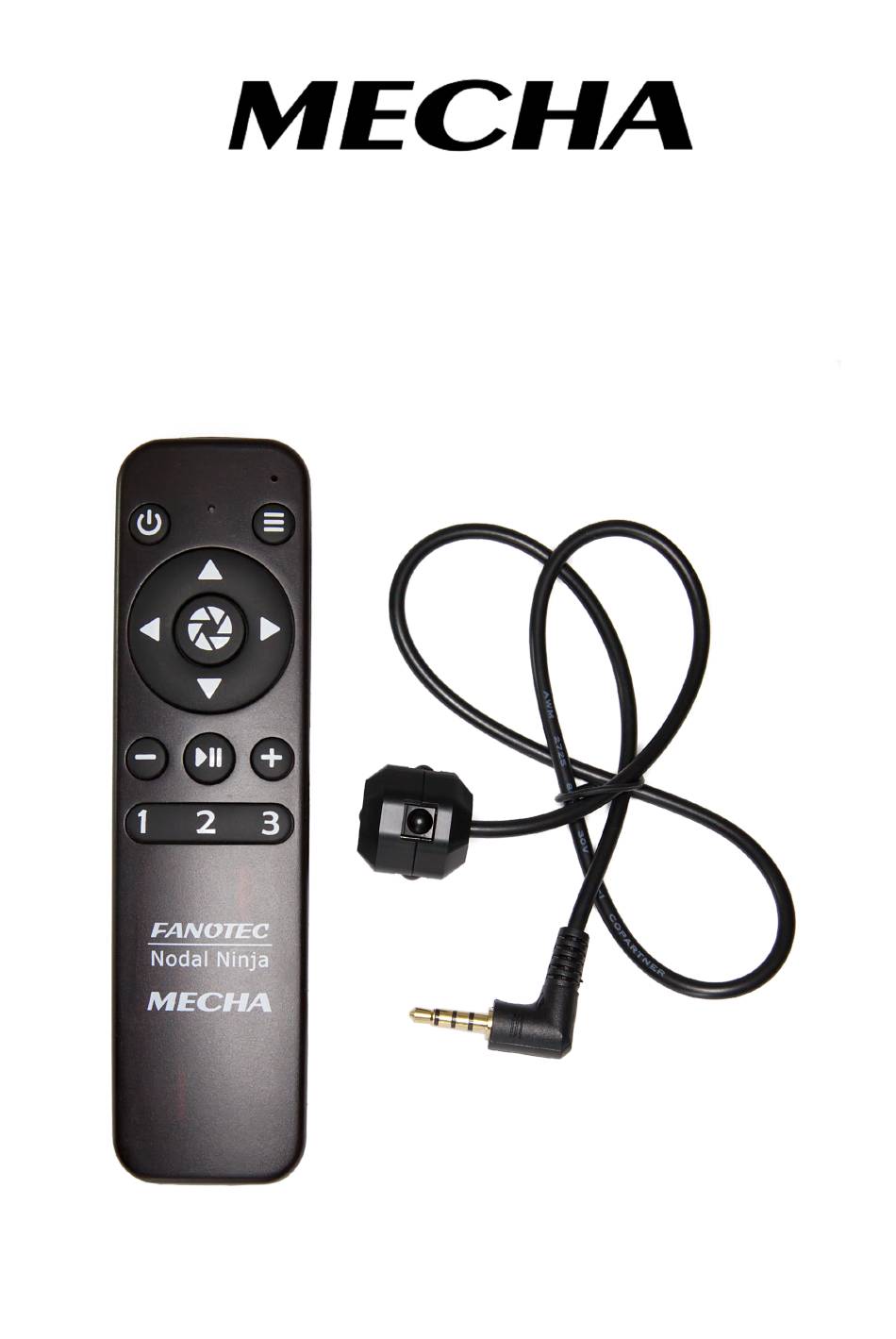

- Page 1 MECHA IR Remote Commander and Receiver v.01 IR REMOTE COMMANDER & RECEIVER April 12, 2021 © 2021 FANOTEC...
-
Page 2: Table Of Contents
Numerical Buttons..................7 Specifications.............. Test the IR Remote Commander & Receiver ..MECHA IR Remote Commander & Receiver Copyright © 2021 by Fanotec International Limited www.nodalninja.com www.fanotec.com To report errors, please send a note to mecha@nodalninja.com. All rights reserved. No part of this guide may be reproduced or transmitted in any form by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of the publisher. -
Page 3: Introduction
MECHA IR Remote Commander and Receiver v.01 Introduction IR Remote Commander and MECHA C1 Controller Receiver for MECHA is a kit specially designed by Fanotec to work with MECHA C1 and C2 Controllers. It allows basic controls and execution of program presets wirelessly without touching the camera, controller or any smart device. -
Page 4: Before First Use
● To be able to use the IR Remote Commander and Receiver for MECHA, connect the Receiver to the Aux Port of the C1 or C2 Controller used. MECHA C1 Controller MECHA C2 Controller AUX PORT Receiver © 2021 FANOTEC... - Page 5 → Use Nodal Ninja IR Remote ○ Check the following checkbox on the Configuration page if you prefer to press the Commander’s power button twice to power off MECHA: → Double press the Nodal Ninja IR Remote power button for power © 2021 FANOTEC...
-
Page 6: Functions
For example, you can execute the preset 01 PresetName very easily with the button combination. Please note that the power button, , can always be used as an emergency stop, if necessary, except for the speed calibration procedure (code: 123123<). © 2021 FANOTEC... -
Page 7: Menu Button
Numerical Buttons ● Use it to enter the number 1. Use [Save 1] button in UI to save a preset and assign it to this button. © 2021 FANOTEC... -
Page 8: Specifications
● 10m (33 ft) of reach. Since light is used to transmit signals, line of sight is required for outdoor, meaning an unobstructed path between Commander and Receiver. ● The IR Receiver has five infrared sensors to easily detect the infrared light from IR Commander. ● SKU: F9988. © 2021 FANOTEC... -
Page 9: Test The Ir Remote Commander & Receiver
The button code is not important, it just needs to be displayed. The test is successful if all the buttons pass the test. ● To end the test, press the button on the C1 or C2 Controller used. © 2021 FANOTEC... - Page 10 Nodal Ninja Youtube Channel https://forum.nodalninja.com/ Nodal Ninja's Panoramic Photography Forum https://www.fanotec.com/ Fanotec International Limited official website Developed and manufactured by Fanotec International Limited. Address: Flat 2, 4/F, Kar Wah Indl. Bldg. 8 Leung Yip Street Yuen Long, Hong Kong © 2021 FANOTEC...
