SKEDCO SKED-EVAC Instructions

Skedco, Inc.
Web Site: http://www.skedco.com
P.O. Box 3390
Phone (503) 691-7909
SKED-EVAC
™

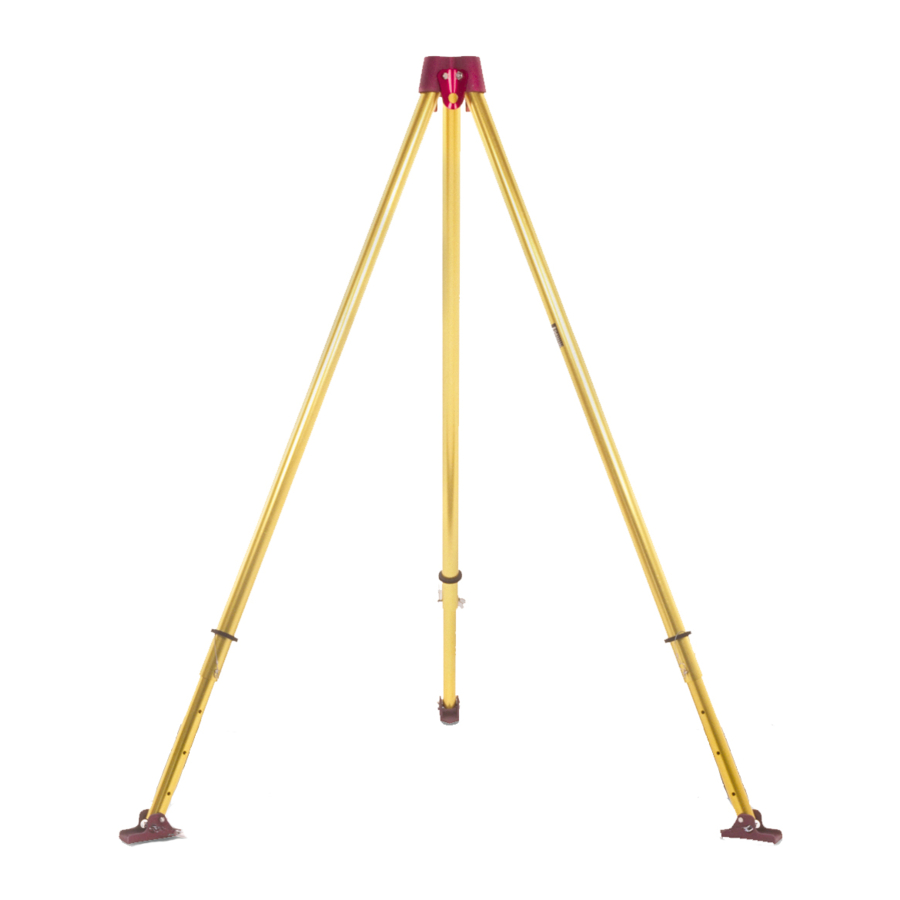

The Sked-Evac rescue/entry tripod is the safest and most versatile available today. It features
three beefy anchors which are interconnected with the head and legs with 1/2" stainless steel
bolts, which provides exceptional strength and safety. The three anchors are cut from extra heavy
aircraft aluminum and feature an extra large hole that will accept two large carabiners at the same
time. The three anchors provide tie-in points for connecting one or two people, as well as fall
protection. The ladder feet can pivot from a horizontal position for solid surfaces to vertical with a
pointed end down for stability on soft ground. A steel chain connects the feet to prevent over
spreading of the legs when the tripod is loaded. The legs adjust in five inch (5") increments for
leveling on uneven surfaces and/or to achieve height adjustment from 6 to 10 feet at the anchors.
The adjustment positions on the legs are each lettered from A to L, providing for easy leveling.
Stainless steel hitch pins are provided to allow easy and secure adjustment of each leg. They
include an attached lock (Cotter) pin which is attached with a plastic coated stainless steel lanyard
and are secured to the tripod with an extra heavy "O" ring to prevent accidental loss.
™
The Sked-Evac tripod has been tested by an independent testing company. Proof load tests
were done to indicate maximum load without permanent distortion and a safe working load at
each height. All tests were done from one anchor at a time. A report of these tests is provided
with these instructions.
• Remove the tripod from its storage/carrying case and remove the retainer strap from the foot
end. Extend the legs to the desired length and lock them into position with the hitch pin.
Place the cotter pin through the hole at the end of the hitch pin to prevent it from accidentally
working its way out.
• Attach the haul system and fall protection to the anchors with carabiners (snap links), and be
sure they are locked by turning the thumb screw to the closed position.
• Stand the tripod up and spread the legs outward to the maximum distance allowed by the
tripod head. Then move each leg inward about 2 inches.
• Remove the chain from its storage bag and thread it through the holes in the sides of the feet.
Connect the one end of the chain with the other end using the screw link provided, preventing
the legs from spreading. It will be necessary to move inward from the end link at one end of
the chain to secure the chain tightly, forming a triangle between the three legs. The chain
must be used on this tripod unless the feet are properly bolted down and immovable.
•
E-mail: skedco@skedco.com
•
Tualatin, Oregon 97062 USA
•
FAX (503) 691-7973
™
Tripod Instructions

FEATURES

INSTRUCTIONS
