Summary of Contents for EKOS EKOSync 1588

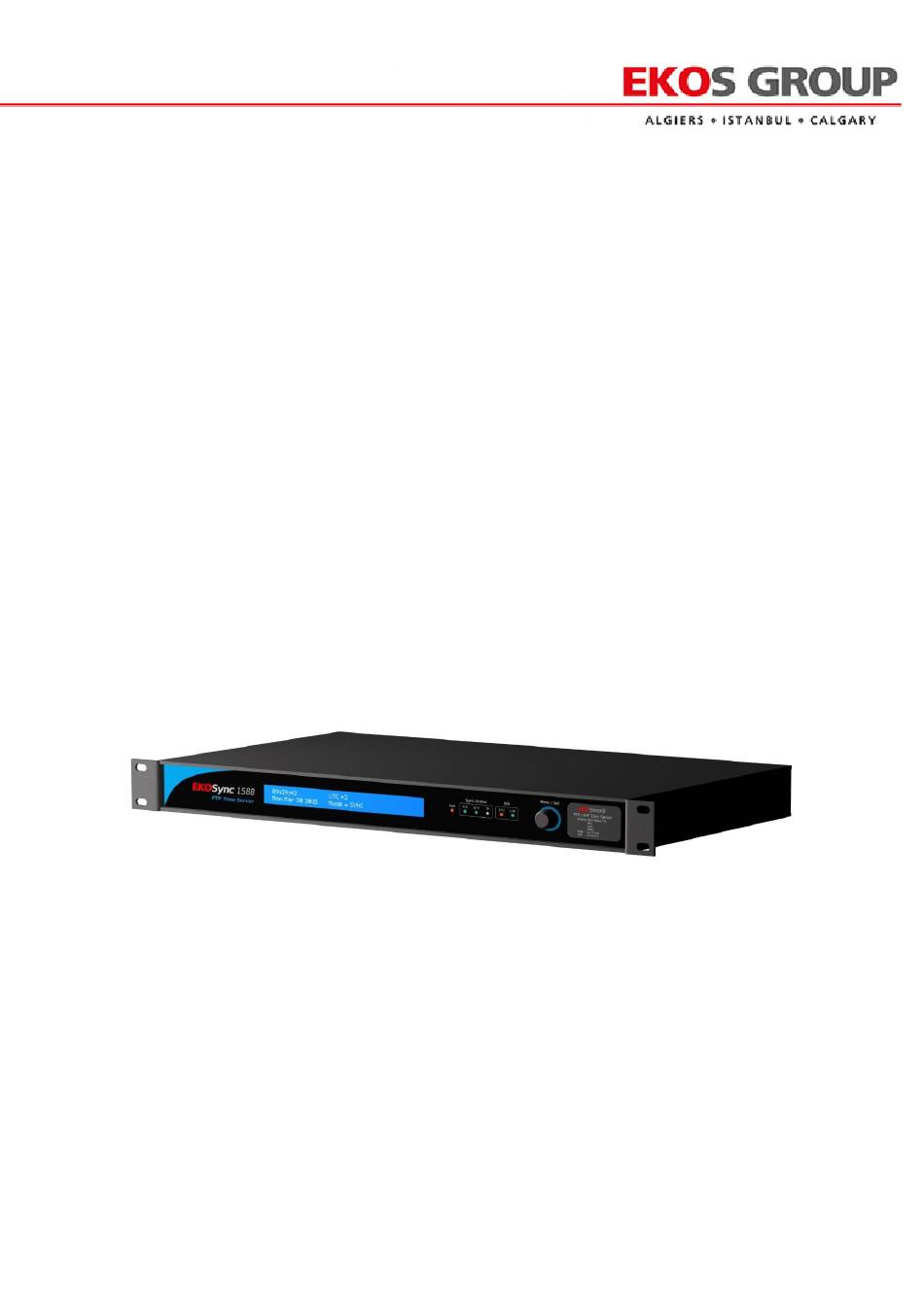

- Page 1 EKOSync 1588 PTP / NTP TIME SERVER USER MANUAL Document Revision No: 3.10...
- Page 2 This instrument is intended for use in dry, indoor locations only. Do not wet the instrument when cleaning it. Safety Symbols These symbols, which have these meanings, may be marked on this instrument. EARTH (GROUND) TERMINAL EKOSync 1588 User Manual rev 3.10...
-
Page 3: Table Of Contents
Table of Contents I. FEATURES & SPECIFICATIONS………………………………………………………………………………………...4 1 Description……………………………………………………………………………..4 2 Features………………………………………………………………………………….4 3 Specifications………………………………………………………………………….4 Electrical……………………………………………………………………………………….4 Networking…………………………………………………………………………………..5 Environmental Specifications……………………………………………………….6 Mechanical Specifications…………………………………………………………….6 Antenna Port Specifications………………………………………………………….6 EKOSync 1588 User Manual rev 3.10... - Page 4 II. OPERATION DESCRIPTIONS……………………………………………………………………………………………….…7 1 Precise Time Synchronization……………………………………………………….7 The IRIG-B Time Code Standard………………………………………………………………7 Network Time Protocol / Simple Network Time Protocol……………………….8 SNTP………………………………………………………………………………………………………8 NTP / SNTP in the EKOSync 1588…………………………………………………………...9 FREQ……………………………………………………………………………………………………...9 ALARM RELAY………………………………………………………………………………………..9 2 IEEE 1588 / PTP / C37.238……………………………………………………… III. INSTALLATION…………………………………………………………………………………………………………………….12 Device Hardware…………………………………………………………………………..12...
-
Page 5: Features & Specifications
EKOSync 1588 PTP TIME SERVER I. FEATURES & SPECIFICATIONS Description EKOSync 1588 PTP Time Server provides sub-microsecond accuracy time information for synchronizing energy distribution subsystem intelligent electronic devices, and proceeding according to IEEE 1588 v2 time protocol. Product includes adjustable hold-over times for discontinuities with GPS communication, and compensation for antenna reception distortions. -
Page 6: Networking
Fully configurable via SNMP V3 User-based Security Module (USM) support USM MIB support USM authentication methods: MD5, SHA USM privacy methods: DES, AES NOTIFICATIONS General: SNMP trap generation V1, V2C, and V3 EKOSync 1588 User Manual rev 3.10... -
Page 7: Environmental Specifications
II. OPERATION DESCRIPTIONS Precise Time Synchronization Precision Time Protocol (PTP), included in IEEE standard 1588 was originally designed to provide timing for critical industrial automation. PTP identifies two types of clocks, masters and slaves. A clock EKOSync 1588 User Manual rev 3.10... -
Page 8: Precise Time Synchronization
Binary Coded Decimal time-of-year (BCDTOY) and year (BCDYEAR) Control Functions (CF), set of bits reserved for user applications Straight Binary Seconds (SBS) time-of-day (0 to 86400 seconds) A comparison of IRIG-B coding methods is given in the figure below. EKOSync 1588 User Manual rev 3.10... -
Page 9: Network Time Protocol / Simple Network Time Protocol
NTP / SNTP in the EKOSync 1588 The EKOSync 1588 can act as an NTP or SNTP server, and is intended to be an NTP time server. The EKOSync 1588 synchronizes to GPS to provide accurate timing signals, and NTP time signals are published through the clock Ethernet port. -
Page 10: Freq
FREQ The EKOSync 1588 has one Frequency out port which produces 5-10-20-25MHz. ALARM RELAY Connect the Sync indication relay to the alarm circuit if required. (C = Common, NO = Normally Open, NC = Normally Closed) Example; The relay alarms when the antenna problems or poor sky view. - Page 11 This measurement is repeated every second between the master clock and the slave clock and the synchronization accuracy can be reduced to approximately 100 ns. IEEE 1588 synchronization network EKOSync 1588 User Manual rev 3.10...
- Page 12 However peer-to-peer transparent clocks measure the line delay associated. Transparent clocks improve synchronization between the master and slave clocks and ensure that the master and slave clocks are not impacted by the effects of packet delay variation. EKOSync 1588 User Manual rev 3.10...
-
Page 13: Installation
III. INSTALLATION Device Hardware Front Panel View Rear Panel View EKOSync 1588 User Manual rev 3.10... - Page 14 Mechanical Sizes EKOSync 1588 User Manual rev 3.10...
-
Page 15: Hardware Installation
(C = Common, NO = Normally Open, NC = Normally Closed) 6. Once the EKOSync 1588 is installed and configured, connect the clock outputs to your devices. – An RG58 cable is recommended to connect devices to the output ports. -
Page 16: Configuration & Settings
IV. CONFIGURATION & SETTINGS 1 Front Panel Overview This section explains use of the front panel. LED Indicators Front panel of the EKOSync 1588 contains six LEDs: Label Flashing Not powered Powered Disable Enable Disable Enable Disable Normal Operation PTP Disable... - Page 17 Local time at various locations around the world are explained at the end of the pages. 1 –UTC 2 –LOCAL → 1 –MIT 14 –EAT 2 –HST 15 –MET 3 –AST 16 –NET 4 –PST 17 –PLT 5 –MST, PNT 18 –IST 6 –CST 19 –BST EKOSync 1588 User Manual rev 3.10...
- Page 18 13 –EET, CAT, ART 26 –NST -LAN CONFG. IP: 168. 1. 103 Enable Static IP BACK MAIN -PRODUCT RELEASE RELEASE 1 –R1. 0/1.0 -EXIT Returns the main menu. 8 – RESET Reset to Default EKOSync 1588 User Manual rev 3.10...
-
Page 19: Accessing The Ptp/Ntp Time Server
Make proper IP settings on PC and enter the device IP address 169.254.100.115:7070 on web browser. The below picture will be seen; Username admin Password nimda Once accessed correctly, the following main screen will appear: EKOSync 1588 User Manual rev 3.10... - Page 20 The area timezone allows to configure the time zone of the device, and converting UTC time to local time. Daylight Saving Time The area DST, when enabled, allows to configure the beginning and the end of daylight saving time. EKOSync 1588 User Manual rev 3.10...
- Page 21 Pre gateway shows the gateway address of the device. If the IP address is changed, new IP address on web browser should be written. Then click the save tab, and press the OK button. Press save for permanent change. EKOSync 1588 User Manual rev 3.10...
- Page 22 Unicast, Manycast, Broadcast or Mixed. When NTP - Local Time is selected, the local time is sent via the NTP protocol according to the time zone and DST configuration. If this option is not checked, UTC is sent. EKOSync 1588 User Manual rev 3.10...
- Page 23 - Uptime: Running time of the , from the last time of turning on. TIME SERVER - Time (UTC): Date and time indication in UTC format. - Time (Local): Date and time indication according to the selected time zone. EKOSync 1588 User Manual rev 3.10...
- Page 24 From button: In this menu the following can be viewed: -Sattelite Signal Reception -Location -Antenna Status -Mask Angle -Low Satellites -Cable Delay EKOSync 1588 User Manual rev 3.10...
- Page 25 Eastern South America UTC,GMT,WET Coordinated Universal Time European Central Time EET,CAT,ART European Eastern Time Saudi Arabia +3.5 Iran West Asia +5.5 India Central Asia Bangkok China Japan +9.5 Central Australia Eastern Australia Central Pacific New Zealand EKOSync 1588 User Manual rev 3.10...
