ThermaCell E Series User Manual

How It Works

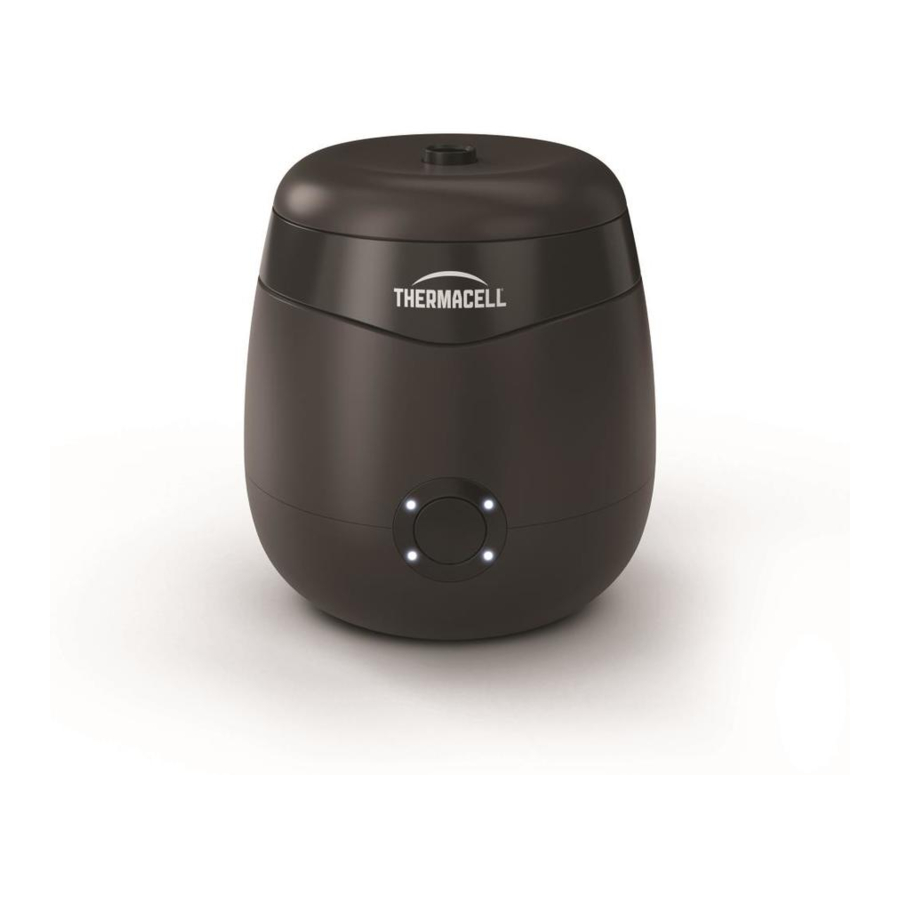

The Thermacell E-Series is an on-demand mosquito repeller.
The rechargeable battery powers a heater that diffuses mosquito
repellent from the repellent refill into the air. Turn it on and within 15
minutes you will be protected from mosquitoes in the surrounding area.
When finished using it just turn it off. It's that easy. No sprays to wash
off and no candles to blow out.
3. Using Your Repeller
• Press the power button to turn on.
• The repeller will sound with an ascending tone and the battery
indicator will illuminate with current battery level. The repeller will
then display a chasing pattern of light indicating it is starting to
heat up. Once temperature is reached the ring will stay illuminated.
• It can take up to 15 minutes for the Zone to fully establish.
• To turn off press and hold the power button for two seconds:
You will hear a descending chime and all lights will turn off.
Press power button to turn on and off.

In the Box

1 E-Series Zone Mosquito Repeller
•
1 E-Series Zone Mosquito Repellent Refill
•
1 USB Cable
•
Cap
Diffuser Vent
Wick
Repellent
Reservoir
Repellent
Control
Panel
Power Button
Repeller
USB Cable
USB Port under
power button
Control Panel
Your repeller will communicate different statuses through the control
panel.
Power Button - Turns device on and off.
Status Indicator - A visual communication tool that lets you know the
repeller status. No need to pick up the device or get close to check.
• Chasing Pattern: Unit is warming up
• Solid Illumination: Unit is up to temp/
Actively releasing repellent

1. Getting Started

Your repeller has a rechargeable battery. Prior to first use, fully charge
the battery. To charge the battery pull back the rubber cover to expose
the USB charging port located on the front of the repeller. Insert the
charging cable provided with the repeller. The battery indicator is
located below the power button.
Battery Indicator Light
Refill
• Charging:
• Fully Charged:
• Low Battery (Less than 20 minutes):
• Battery Too Low to be Turned On: Flashes
4. Place Your Device
• Repeller is best placed in the center of the desired Zone of repellency.
• If it is windy, place the repeller upwind of where you are sitting.
• Only operate with vent facing up.
• Do not cover repeller while it is in use.
To protect larger areas use multiple repellers.
•
2. Inserting a Repellent Refill
Remove top from repeller: To remove the top grasp the repeller
•
base with one hand and remove the top with the other.
• Remove the cap from a Repellent Refill.
• Insert the Repellent Refill into the repeller.
• Replace the repeller top taking care not to damage the Repellent
Refill wick. The repeller uses magnets to hold the top to the
bottom of the device.
Use only Thermacell Repellent Refills.
Care & Storage
!
Do not store with battery completely discharged for
extended periods of time. Batteries should be charged at
least once every 3 months during storage.
Occasionally debris or condensation may build up on your repeller
•
device. Simply use a damp paper towel or rag to wipe away any
build up.
Do not expose the repeller to extended periods of rain or submerge
•
in water.
Do not expose the repeller to temperatures above 140°F.
•
Store at room temperature in a dry environment when not in use.
•
Questions?
1-866-753-3837
We're here
service@thermacell.com
to help, 24/7
Thermacell Repellents, Inc.
26 Crosby Drive
Bedford, MA 01730 USA
