The Range of Digital Video Recorders

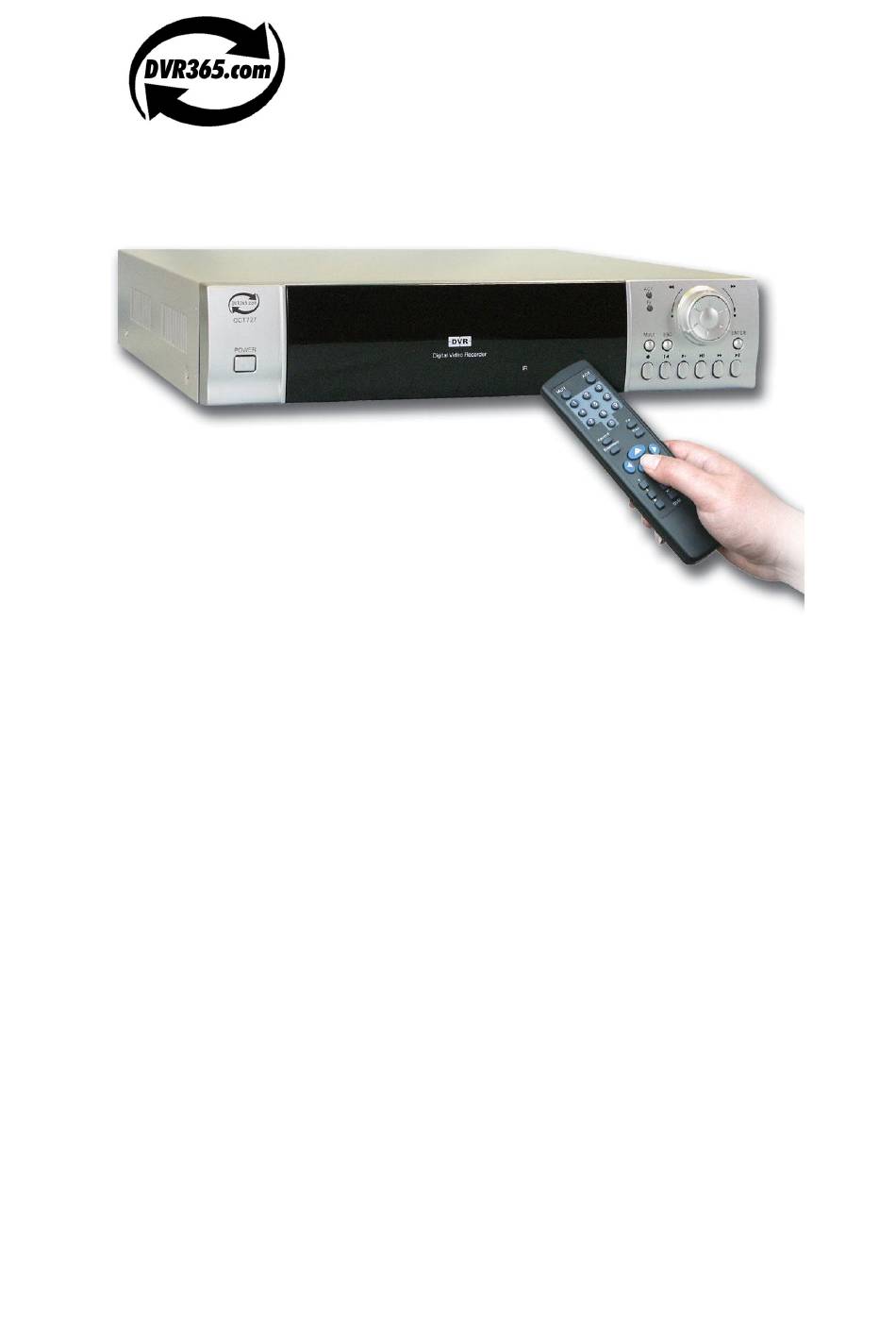

The MPEG 4 Digital Video Recorder
With three different models in the DVR365 range there' s a DVR for every
application.
Choose the 4-way DVR for those small but demanding CCTV installations, or the 8-
way DVR will suit most businesses requirements, for the large CCTV installations
choose the 16-way DVR.
The DVR365 will allow you to record video and sound in real time on every channel.
The DVR also acts as a " video server" so you can now keep an eye on your property
from anywhere in the world by logging onto the DVR via the Internet.
Whether you use the DVR365 for simple unattended automatic recording of camera
pictures in a small corner shop or you monitor the live activity of high street stores
worldwide, the DVR365 really is a fantastic all-round product.
