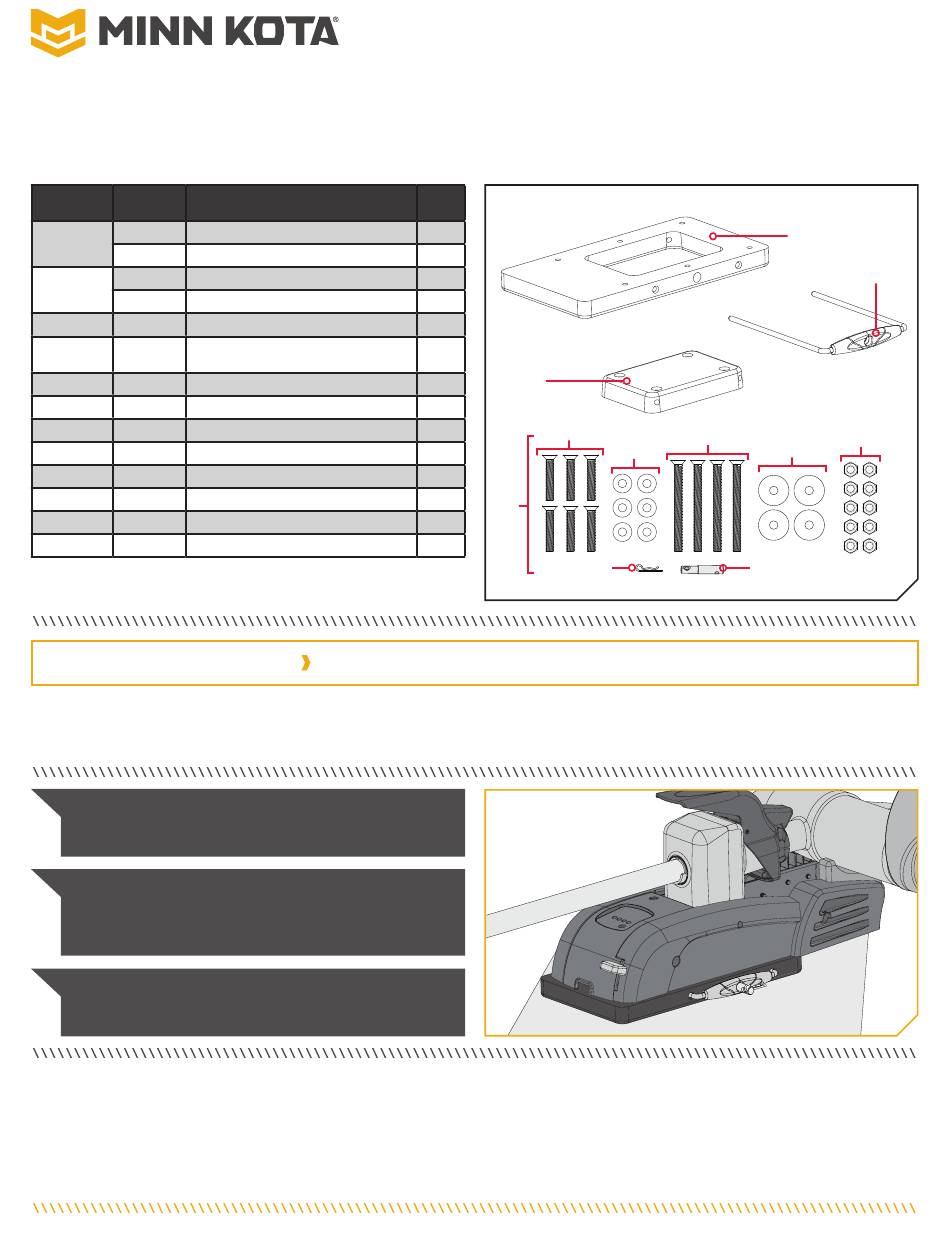

The MKA-21 is recommended for use with Minn Kota
freshwater trolling motors and the Deckhand 40. The RTA-17 is recommended for use with Minn Kota
PowerDrive™ and RT PowerDrive V2 saltwater trolling motors. Do not use with motors equipped with a shaft 72" or greater. Do not use with
112lb thrust motors.
Item /
Part #
Description
Assembly
2371965
PLATE-INNER PD/AP QCK REL.
2
2371966
PLATE-INNER PD/AP QRB BLK.
2371967
PLATE-OUTER PD/AP QCK REL.
4
2371968
PLATE-OUTER PD/AP QRB BLK.
6
2990906
HANDLE ASSY PD/AP QRB.
A
2994848
BAG ASSY PD/AP QRB
Includes 8-20
8
2372631
PIN-PADLOCK PD/AP QCK REL.
10
2260800
CLIP-HAIR SPRING,SS,MAX BG
12
2373480
SCREW-1/4-20 X 1 1/2 PFH SS
14
2371712
WASHER-FLAT 9/32 X 5/8 X 1/16
16
2373482
SCREW-1/4-20 X 3" PFH SS
18
2261713
WASHER-1/4 FLAT 18-8 SS
20
2073100
NUT-HEX 1/4-20 NYLOC-JAM SS
2374917
INSTRUCTIONS PD/AP QRB
Not shown on Parts Diagram.
This part is included in an assembly and cannot be ordered individually.
TOOLS AND RESOURCES REQUIRED
• Drill
• Drill bit 17/64"
• #2 or #3 Philips Screwdriver
NOTICE:
Do not use with motors equipped with a shaft
72" or greater. Do not use with 112lb thrust motors.
NOTICE:
Images are a graphical representation and
may vary from your motor. Save the box! A template for
installation is printed on the inside of the box.
NOTICE:
It is recommended to have a second person
help with this installation.
1 | minnkotamotors.com
Ulterra™, Terrova
, PowerDrive™, PowerDrive V2, and Pontoon PowerDrive™
®
®
Qty.
1
1
1
1
1
2
2
1
1
6
6
4
4
A A
10
1
• Awl, pencil or similar marking tool
• Scissors
Complete Typical
Complete Typical
Installation
Installation
MKA-21/RTA-17
QUICK RELEASE BRACKET
1854021 & 1854017
RT Ulterra™, RT Terrova
®
12
12
16
16
14
14
10
10
• A second person to help with
the installation
©2021 Johnson Outdoors Marine Electronics, Inc.
, RT
®
4 4
6 6
20
20
18
18
8 8

Advertisement

loading
Need help?

Need help?

Do you have a question about the MINN KOTA MKA-21 and is the answer not in the manual?

Questions and answers

Summary of Contents for Johnson Outdoors MINN KOTA MKA-21

  • Page 1 Save the box! A template for installation is printed on the inside of the box. NOTICE: It is recommended to have a second person help with this installation. 1 | minnkotamotors.com ©2021 Johnson Outdoors Marine Electronics, Inc.
  • Page 2 Inboard Inboard Inboard Inboard install nuts and washers. Recruit a second person to help with the installation, as an unsecured motor will tip when deployed and when left unattended. 2 | minnkotamotors.com ©2021 Johnson Outdoors Marine Electronics, Inc.
  • Page 3 Pin is in the Outer Plate. Rotate the Pin so that the hole in the Pin lines up with the hole in the Outer Plate. Outer Plate Outer Plate Padlock Pin Padlock Pin Padlock Pin Padlock Pin 3 | minnkotamotors.com ©2021 Johnson Outdoors Marine Electronics, Inc.
  • Page 4 Swing the Left Sideplate out and away from the Base Extrusion. Removing the sideplates exposes the Mounting Holes in the Base Extrusion. Base Extrusion Base Extrusion Mounting Mounting Holes Holes Left Sideplate Left Sideplate Right Sideplate Right Sideplate 4 | minnkotamotors.com ©2021 Johnson Outdoors Marine Electronics, Inc.
  • Page 5 Screw with a Nylock Nut. Inboard Inboard Stainless Stainless Re-install both side covers. Secure the Screws using a Steel Screw Steel Screw #3 Phillips Screwdriver. 5 | minnkotamotors.com ©2021 Johnson Outdoors Marine Electronics, Inc.
  • Page 6 Outer Plate through the Pontoon Hand Control Bracket. Secure each Screw with a Flat Washer (Item #14) and a Nylock Nut (Item #20). Outer Outer Plate Plate Stainless Stainless Inboard Inboard Steel Screw Steel Screw Inboard Inboard 6 | minnkotamotors.com ©2021 Johnson Outdoors Marine Electronics, Inc.
  • Page 7 Extension Damper in a safe place so they are Mounting Hole Mounting Hole Damper Damper not misplaced before they are reassembled later in the installation. Extension Extension Damper Pins Damper Pins E-clips E-clips Damper Damper 7 | minnkotamotors.com ©2021 Johnson Outdoors Marine Electronics, Inc.
  • Page 8 Outer Plate, Base Extrusion and Clipped Washers. Clipped Clipped Washer Washer Mounting Mounting Holes Holes Outer Plate Outer Plate Stainless Steel Screw Stainless Steel Screw 8 | minnkotamotors.com ©2021 Johnson Outdoors Marine Electronics, Inc.
  • Page 9 Replace the Left Sideplate. Replace the four sideplate Screws using a #2 or #3 Phillips Screw Driver. Screw Screw Right Sideplate Right Sideplate Screw Screw Left Sideplate Left Sideplate Screw Screw Screw Screw 9 | minnkotamotors.com ©2021 Johnson Outdoors Marine Electronics, Inc.
  • Page 10 Template Template Inboard Inboard Drill the holes to a 17/64” diameter. Inboard Inboard Template Template Drill Holes Drill Holes Drill Holes Drill Holes Markings Markings Markings Markings Outboard Outboard Outboard Outboard 10 | minnkotamotors.com ©2021 Johnson Outdoors Marine Electronics, Inc.
  • Page 11 If the Handle Assembly does not slide easily into place after completing the installation, it may be necessary to drill out the Handle Rod Holes using a letter “F” (.257”) drill bit. 11 | minnkotamotors.com ©2021 Johnson Outdoors Marine Electronics, Inc.
  • Page 12 Minn Kota Consumer & Technical Service 121 Power Drive Johnson Outdoors Marine Electronics, Inc. Mankato, MN 56001 PO Box 8129 Phone (800) 227-6433 ©2021 Johnson Outdoors Marine Electronics, Inc. minnkotamotors.com Mankato, MN 56001 Fax (800) 527-4464 All rights reserved. Part #2374917...
