- Page 1 O P E R A T O R ’ S M A N U A L...
-
Page 4: Output Impedance

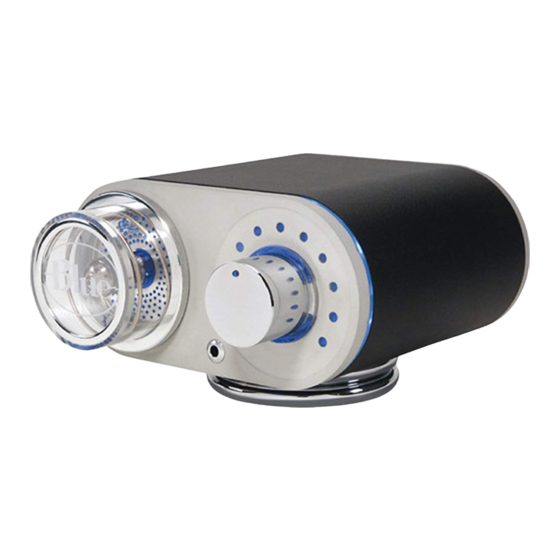

C L A S S - A D I S C R E T E M I C P R E Robbie is a Class-A discrete tube microphone and instrument preamplifier. With no ICs and only the highest-quality discrete components from input to output, Robbie is one of the quietest (-131 dB EIN @ 50Ω) and most detailed (THD 0.006%) tube preamps available today. -
Page 5: Front Panel
Robbie operates at 115VAC with USA power supply, or 230VAC with European power supply. Connect the male end of the AC power supply cable to Robbie by lining up the large top center tab with the large top center slot on Robbie’s female AC input jack. Make sure the cable is inserted fully into the jack and then gently twist to the right until it clicks into place. - Page 6 The balanced XLR male jack is for connection to your +4dBm balanced line-level input device with a XLR micro- phone cable such as the Blue Kiwi, Cranberry or Blueberry. Robbie’s nominal operating level is 0dB = 1.228V. Robbie’s line output is wired pin 2 hot.
-
Page 7: Safety Precautions
Notice: This manual provides general information about the operation and maintenance of Robbie the Mic Pre. The information contained in this manual is subject to change without notice. Blue, LLC, makes no warranties of any kind regarding this manual including, but not limited to, the implied warranties of merchantability and fitness for any particular purposes. - Page 10 5706 Corsa Avenue, Suite 102 • Westlake Village, CA 91362-4057 • www.bluemic.com...
