Summary of Contents for Aussie PRO RUNNER

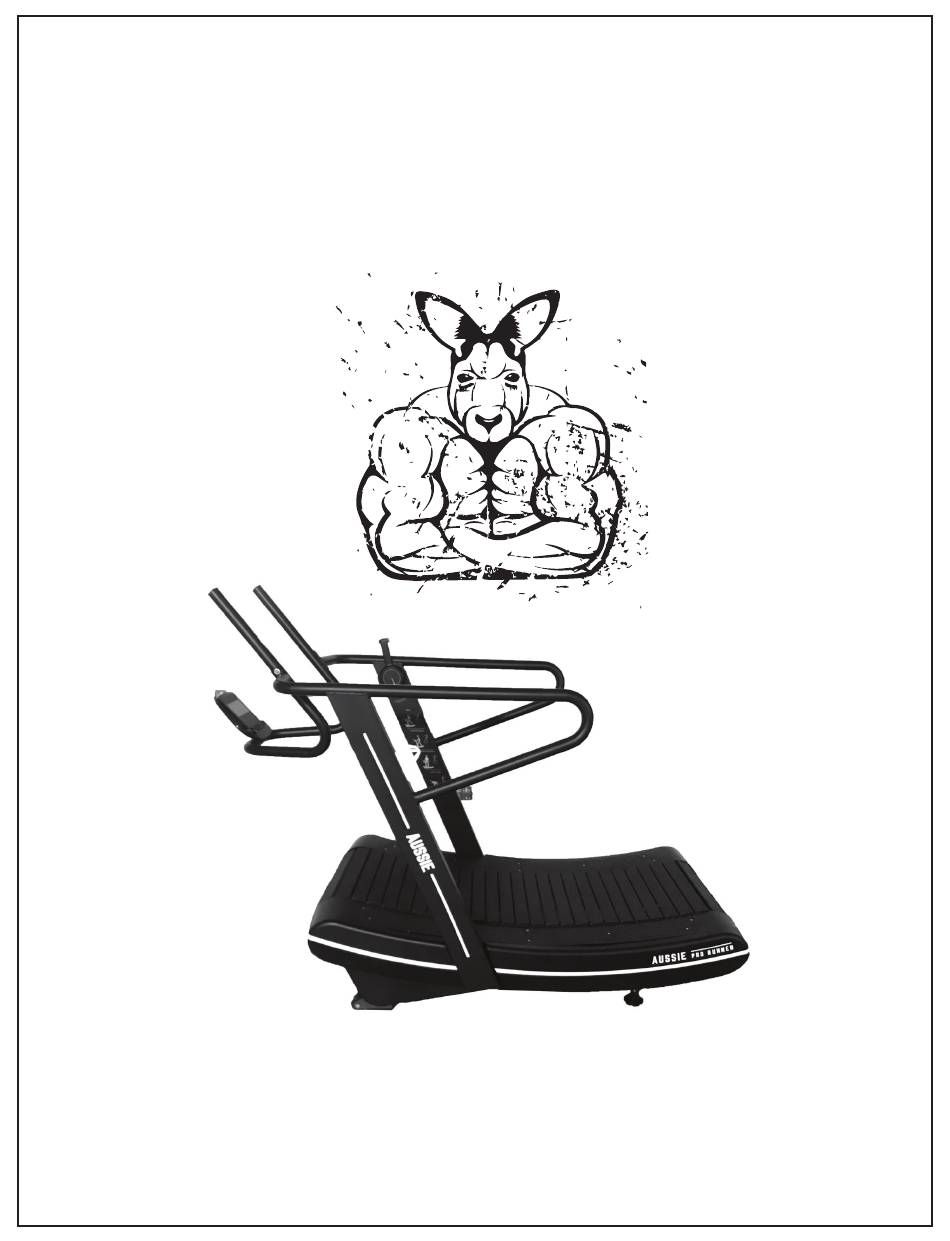

- Page 1 AUSSIE PRO RUNNER Owners Manual Read all instructions carefully before using this prouct. Retain his owner’s manual for future reference AUSSIE F I T N E S S P R O S...
-
Page 2: Important Safety Instructions
-Keep your treadmill in a suitable environment that ranges between 5 - 40 degrees Celsius to preserve the quality, integrity and longevity of the machine. AUSSIE F I T N E S S P R O S... - Page 3 -Pregnant or breastfeeding -Stop exercising immediately and consult your doctor if you feel dizzy, have heart pain or any other illness. -Drink water when exercising longer than 20 minutes AUSSIE F I T N E S S P R O S...
- Page 4 ASSEMBLY Pro Runner will be delivered in Crate Carefully open all sides of the crate and Cut Straps.
- Page 5 ASSEMBLY Remove all contents from the box. Remove Top Base Plate Bolts with Allen Wrench provided. (base plate has already been removed, set aside)
- Page 6 ASSEMBLY Remove shroud. There are 3 screws on top and 2 on the front that will hold it on. Do not remove the large bolts in the front FRONT Remove 4 Black bolts after the shroud has been removed. Set aside with washer and lock washer in same position...
- Page 7 ASSEMBLY Assemble the treadmill arms by removing the black bolts from frame and sliding the arms into the slot. Fasten together with the black bolts. Do not tighen all the way. This will leave some wiggle room to get the center column on easily.
- Page 8 ASSEMBLY Repeat previous steps to assemble the right treadmill column. Then connect the computer cable on the left arm and the magnetic resistance brake cable on the right arm. Attach the resistance brake cable by positioning over pulley and clipping on to magnetic housing clip point ( A ) *Make sure the resistance dial on right arm is set to low when attaching clip* Attach the computer cable by clipping the two ends together ( b )
- Page 9 ASSEMBLY Attach center column by : 1. removing bolts 2. Holding the center column in connecting position *best with two people so one person can hold the the center column with holes lined up* 3. attaching the computer cables and sliding back into hole 4.
- Page 10 ASSEMBLY Put shrouds back on. First put on the 2 screws in front of machine. Then 3 screws on top. Do not strip screws if using an electric driver. Place top plates back over shroud. Screw down.
- Page 11 ASSEMBLY Your Aussie Pro Runner is complete...
-
Page 12: Led Display
QUICK START Take your first stride on the Aussie Pro Runner and the computer will turn on. If you continue to run you will train in the quick start mode. In this mode your distance, time, pace, speed, and calories will be displayed. -
Page 13: Troubleshoot
TROUBLESHOOT Question 1: The magnetic resistance brake cable does not reach the housing clip. Answer: Make sure to adjust the lever on right arm to low resistance so that the magnetic resistance brake cable can reach the housing clip. Question 2: The bolts on the center column are having difficulty going in. -
Page 14: Weekly Maintenance
MAINTANENCE Weekly Maintenance: Clean handrails, the LED screen, treads, and the cover panels Inspect the overall condition of the treadmill Wipe off any dust or light dirt with a damp cloth and mildly soapy water. Dry with a dry cloth. Vacuum under the treadmill Annual maintenance Inspect for any bearing damage beneath the treads and for any loose bolts...
