Page 1 Junior Filter Pump Instruction Manual...
Page 2 Important information! Read these instructions carefully before commencing assembly. Please ask your specialist retailer for further information or advice on filters, water maintenance and accessories. We reserve the right to make changes to the product specification and design without advance notification within the context of further technical development.

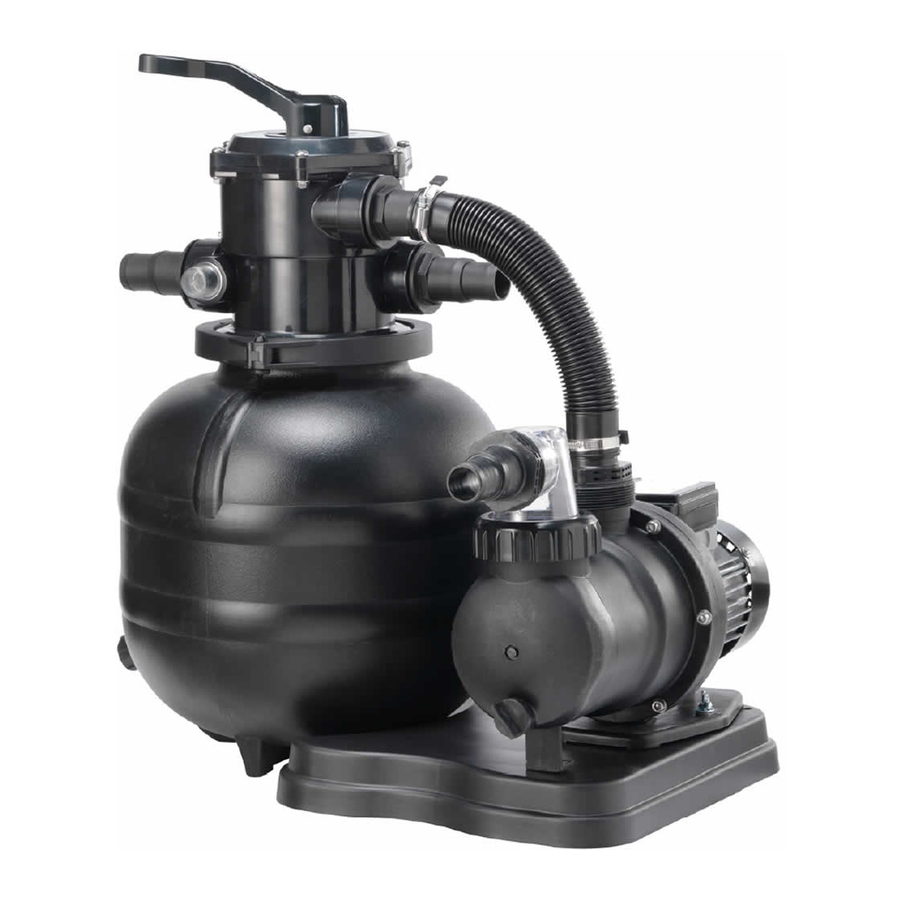

Page 3 Assembling the filter system Assemble the filter system at the desired location (transportation of the fully assembled filter system to the installation point is not recommended!). The filter pump consists of the following parts: (Fig. 1) 1. Pump 2. Valve 3.
Page 4 Filter tank 1. Insert the centre pipe including the lateral holder into the tank (Fig. 2) and screw the laterals into the lateral holder (Fig. 3). 2. After assembling all the laterals, position the centre pipe with the lateral holder on the floor of the tank.
Page 5 Hose connections (pump) 1. Skimmer line: Connection from the skimmer coupling to the front coupling at the filter system. 2. Pressure line: Connection from the upper coupling of the filter system to the “PUMP” coupling at the 6-way valve. 3. Return line: Connection from the “RETURN” coupling at the 6-way valve to the coupling at the injection nozzle (pool).
Page 6 Vacuuming the floor of the pool Turn the valve handle to the FILTER position when using a pool vacuum to clean the floor of the pool. Connect the pool vacuum to the vacuum hose at the skimmer. Do not switch on the filter pump until the pool vacuum has been connected properly and is ready for operation.
Page 7 During the winter At the end of the swimming pool season, disassemble and completely drain the filter system and/ or hoses. Open the drain plug and completely drain the filter tank and the filter pump. Open the filter tank and empty the filter sand. Check whether the filter sand is still ok (not stuck or clumped together) and clean it.
