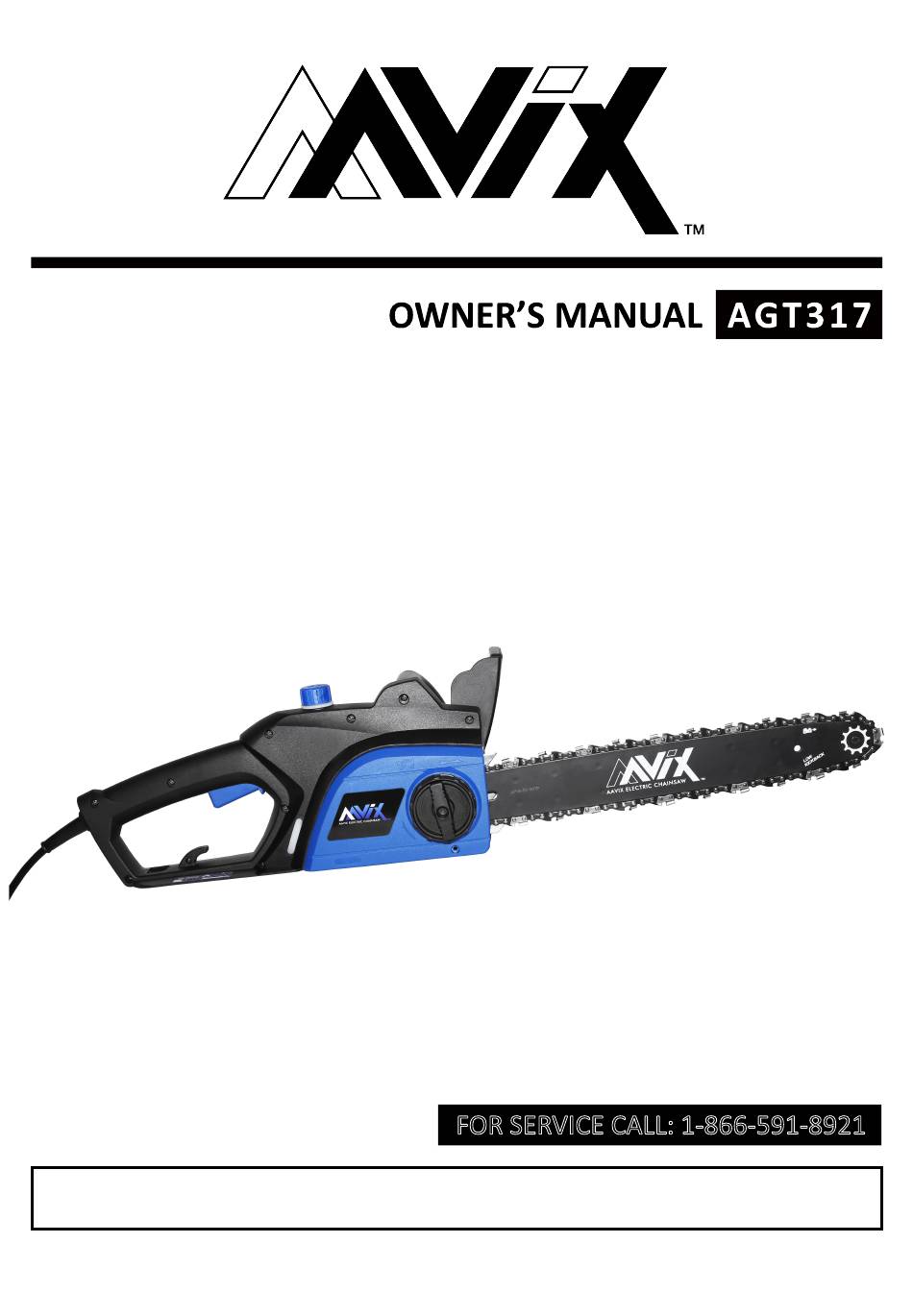

A A V I X
O U T D O O R S
16 INCH 15A CHAINSAW
FOR SERVICE CALL: 1-866-591-8921
WARNING : To reduce the risk of injury, user must read this manual before assembling, operating
and maintaining this unit, You are responsible for operating the product properly & safely.
Version: V1.20170106

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AGT317 and is the answer not in the manual?

Questions and answers

Related Manuals for AAVIX AGT317

Summary of Contents for AAVIX AGT317

  • Page 1 A A V I X O U T D O O R S 16 INCH 15A CHAINSAW FOR SERVICE CALL: 1-866-591-8921 WARNING : To reduce the risk of injury, user must read this manual before assembling, operating and maintaining this unit, You are responsible for operating the product properly & safely. Version: V1.20170106...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Information..……………………………………………………………………………….…2 Specifications..…………………..…………………………………..……………………………………………….….5 Know Your Chainsaw..………..…………………………………….…………………………………………….…..5 Assembly..………………..…………………………………………..………………………………………………..….5 Operation.…………………………………………………………………………………………………………….…….8 Maintenance……………………………………………..……………………………………………………………..10 Troubleshooting…..……………………………………………............12 Part List…………….….…………………………………..……………………………………………………………….13 Exploded View……..…………………………………………………………………………………………………...15 IMPORTANT SAFETY INFORMATION Warning - When using an electric chain saw, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: READ ALL INSTRUCTIONS Make sure you read and understand all instructions Important Safety Information.
  • Page 3 caught in moving saw chain. Wear the following safety gear when operating chain saw.  Heavy-duty gloves(wear rubber gloves when working outdoors)  Steel-toed safety footwear with non-skid soles  Eye protection such as safety glasses, goggles, or face screen ...
  • Page 4 toward you. This could also pull you off balance. 15. When cutting limb or tree trunk that is under tension, use extreme caution. Be alert for wood springing back. When wood tension is released, limb could spring back and strike operator causing severe injury or death.

  • Page 5: Specifications

    AMERICAN WIRE GAUGE RATING CHART EXTENSION CORD LENGTH(FEET) AMPS 0 TO 10.0 10.1 TO 13.0 13.1 TO 15 15 TO 18 SPECIFICATIONS 1.Motor: 120v/60hz, 15Amp 2. Bar length: 16inch/406mm 3. Max. cutting length: 15.5inch/395mm 4. Chain speed: 28.6mile/h(12.8m/s) 5.Chain oil tank capacity: 6.4 fl oz/190ml 6.Chain#:B-50-575 3/8 7.Bar#:AP16-57-507P 3/8 KNOW YOUR CHAINSAW...

  • Page 6: Assembly

    ASSEMBLY Assembling the guide bar and saw chain WARNING: The chainsaw must be unplugged. 1. The hand guard must always be in the brake(A) position. See photo below. IMPORTANT: Always loosen lock knob before turning the adjusting knob or else the sprocket cover and tension adjuster will be damaged.
  • Page 7 tip of the bar. Make sure the saw chain is inside the guide groove of the guide bar. 5. Place the saw chain round the chain wheel and make sure it is correctly mounted. Then place the guide bar with the saw chain on the guide bolt and chain tensioning bolt. 6.
  • Page 8 re-tension if necessary. Adding Chain Oil WARNING: To prevent dirt getting inside the tank, clean the oil tank cap before opening. Fresh SAE30 weight motor oil may be substituted. Use only a good quality bar and chain oil. 1. Check the oil level during sawing work by checking the oil gauge. 2.

  • Page 9: Operation

    To be able to use your chain saw again, you must release the saw chain again. First switch off the chainsaw. Then push the hand guard back into the vertical position until it locks in place (B). The chain brake is now fully functional again.
  • Page 10 use two hands in gripping the saw. Never use the saw one-handed. -Begin the cut on the side to which the tree is to fall. Cut a notch about 1/3rd of the way into the tree. The position of the notch is important since the tree will try to “fall” into the notch. See photo below. The felling cut is made on the opposite side of the notch at about 2”...

  • Page 11: Maintenance

    These limbs can spring back towards the operator and cause loss of control resulting in injury. Always stand to the left of the trunk and maintain a secure footing. Always use both hands when cutting. BUCKING The sawing of a log or fallen tree into smaller pieces. See photo below. When bucking up a log, check to see where the log is supported and determine which way the two halves will fall when cut.
  • Page 12 home owner to sharpen saw chains. An improperly sharpened saw chain will not cut effectively, require more physical effort, and cause high vibrations and a higher rate of wear. CARBON BRUSHES WARNING: Before accessing the carbon brushes, be sure that the chainsaw is disconnected from the power source.

  • Page 13: Troubleshooting

    TROUBLE SHOOTING Fault Cause Remedy Check socket, cable and plug Damaged cable: have repaired by Customer Service. It is prohibited to patch the cable with No electricity insulating tape Damaged switches have to be replaced by a Motor does not run Customer Service workshop.

  • Page 14: Part List

    PART LIST...

  • Page 15: Exploded View

    EXPLODED VIEW...
