Summary of Contents for MACDEV Gladiator inLine REG

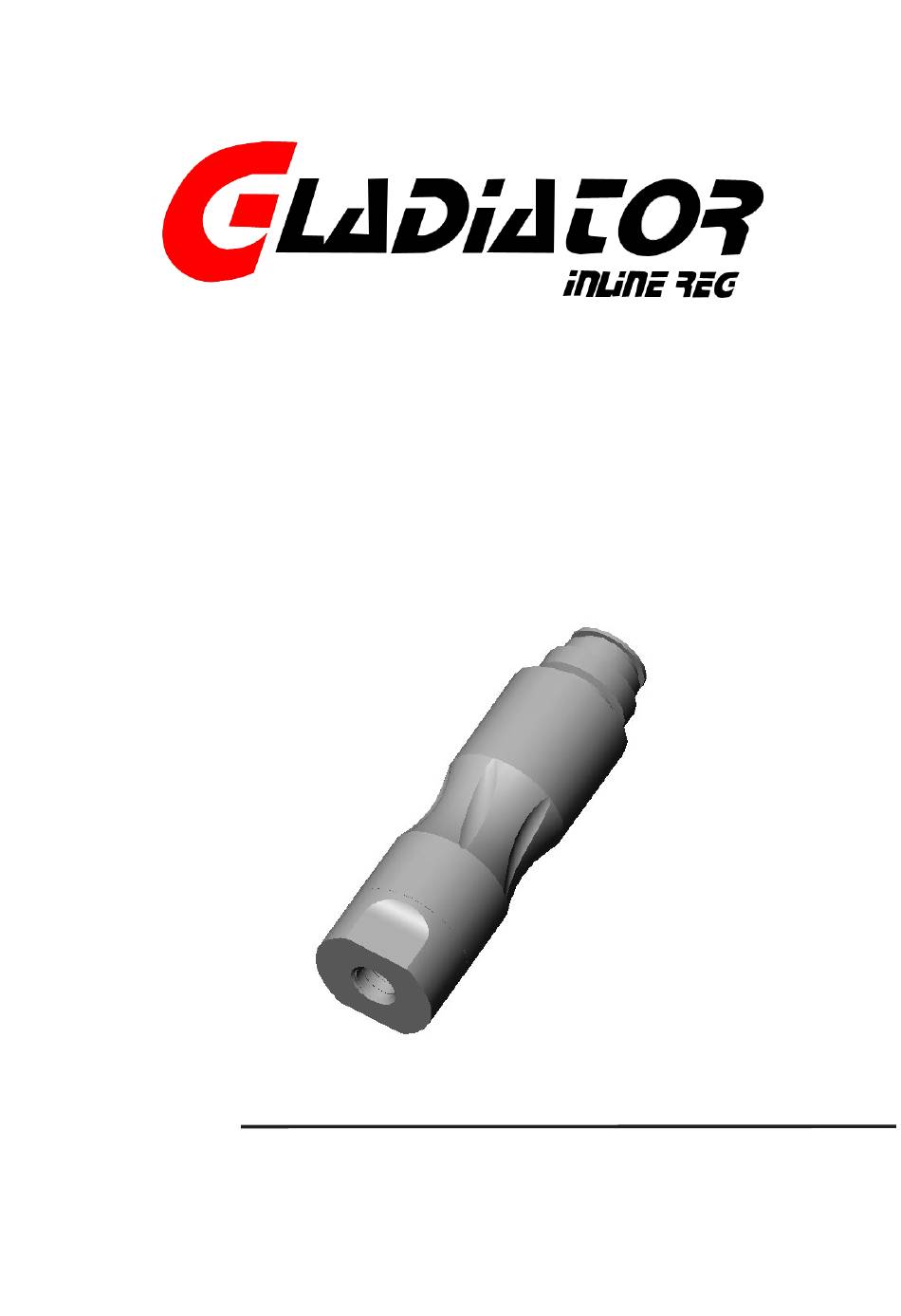

- Page 1 Users Manual Mac Developments - Australia www.macdev.net Info@macdev.net...
- Page 2 Users Manual Version 2.10 Copyright Mac Developments Pty. Ltd. 2003 All rights reserved No part of this document may be copied or reproduced in any form or by any means without the prior written consent of Mac Developments Pty. Ltd. Notice is hereby given that this manual is part of the article owned in whole by Mac Developments Pt.
-
Page 3: Installation
Installation Air Fitting Installation: Your Gladiator inline reg comes ready to have an air tting installed. To correctly install your air tting follow these steps. NOTE: failure to follow these instructions may result in damage to your Gladiator – this is not... - Page 4 Step 4: Connect your air system to the air tting and use it to blow air through your Gladiator bottom works as shown in gure 4. This will clear out any debris left over from the installation process and avoid damage to your seals. Step 5: re-assemble your gladiator.
- Page 5 Maintaining your Gladiator Just like you, the Gladiator likes to play paintball. And just like you, the Gladiator doesn’t like eating dirt. So always check the quality of air you are putting into your air system otherwise it will adversely affect your inline reg, your gun, your game and the way your team mates look at you when you go over the chrony.
- Page 6 8. Replace end cap and hose. Re- chrony your marker. NOTE: Keeping your piston clean and lubricated at all times is essential to keeping your Gladiator inline reg consistent over the Chronograph. Seat If your Gladiator seat is dirty or damaged, you will nd prob- lems such as creeping or inconsistency.
-
Page 7: Troubleshooting Guide
Troubleshooting Guide Inconsistency over the chronograph Clean and re-lubricate piston o-ring & piston bore. Check seat for contamination, clean or replace as necessary. Check paint and barrel match If all of the above are correct, check your markers internals for problems. First shot over the chronograph is hot Check to see if the pressure in the regulator is rising slowly, if so, your seat is contaminated, clean or replace immediately. - Page 8 Accessories Use genuine macdev accessories for best results. Rebuild Kit The Gladiator rebuild kit contains: - ASA o-ring, and both piston o-rings - Ball bearing pack - Seat - Adjuster screw Sonic ASA The Sonic ASA is specically designed to t the Gladiator...
- Page 10 MacDev 2003 Find us on the web at: www.macdev.net Email us at: info@macdev.net Australian Ofce: Mac Developments PO Box 584 Gymea, NSW Australia 2227 ph: INT+612 9531 5055 fax: INT+6129531 5188 US distributor: Gramps and Grizzly’s Outpost 7203 Arlington Ave, Unit F...
