DLX LUXE Manual

Premium electropneumatic marker
Hide thumbs
Table of Contents

Advertisement

Quick Links

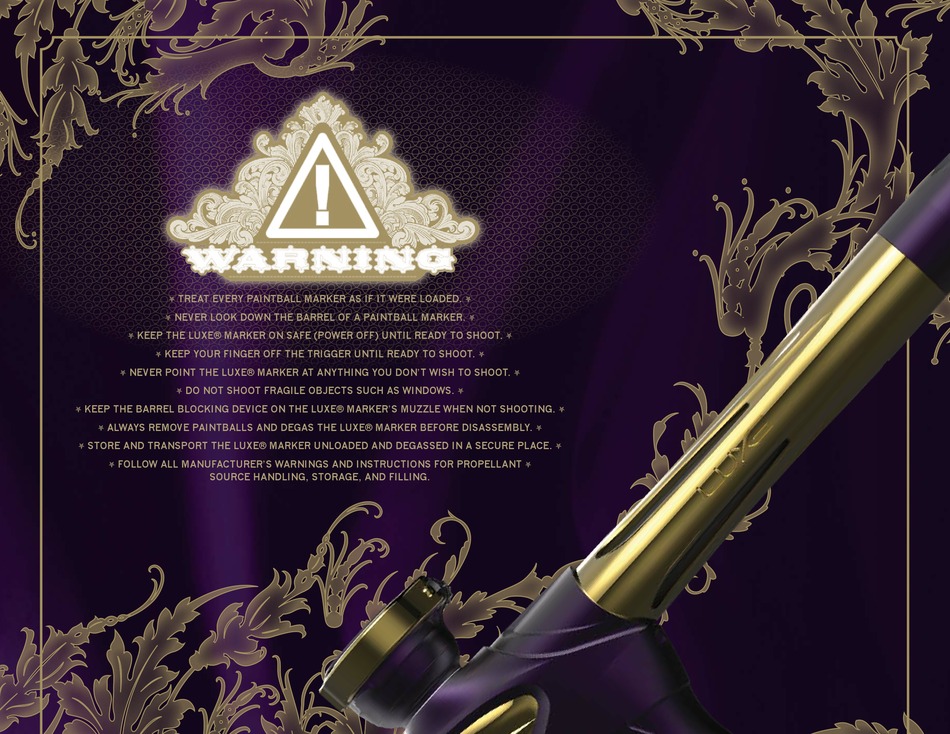

• TreaT every painTball marker as if iT were loaded. •
• never look down The barrel of a painTball marker. •
• keep The luxe® marker on safe (power off) unTil ready To shooT. •
• keep your finger off The Trigger unTil ready To shooT. •
• never poinT The luxe® marker aT anyThing you don'T wish To shooT. •
• do noT shooT fragile objecTs such as windows. •
• keep The barrel blocking device on The luxe® marker's muzzle when noT shooTing. •
• always remove painTballs and degas The luxe® marker before disassembly. •
• sTore and TransporT The luxe® marker unloaded and degassed in a secure place. •
• follow all manufacTurer's warnings and insTrucTions for propellanT •
source handling, sTorage, and filling.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUXE and is the answer not in the manual?

Questions and answers

Related Manuals for DLX LUXE

Summary of Contents for DLX LUXE

  • Page 1 • never poinT The luxe® marker aT anyThing you don’T wish To shooT. • • do noT shooT fragile objecTs such as windows. • • keep The barrel blocking device on The luxe® marker’s muzzle when noT shooTing. • • always remove painTballs and degas The luxe® marker before disassembly. •...
  • Page 2 PREMIUM ELECTROPNEUMATIC MARKER luxe® marker is covered by one or more of The following u.s. paTenTs: 5,881,707; 5,967,133; 6,035,843; 6,474,326; 6,637,421; 7,100,593. Other Patents Pending. FOreign Patents granted and Pending. ©2014 dlx Technology group. all righTs reserved. The precauTion lisT and operaTor’s manual musT always accompany The producT in The evenT of resale or new ownership.

  • Page 3: Table Of Contents

    ORIENTATION HaNDLING THE LiPo BaTTErY • • • • welcome To The luxe® experience. Please read this section thoroughly before you use your Luxe®, to learn about important safety and operation procedures. aBOUT COmPrESSED aIr • • • • INSTaLLING aN aIr SYSTEm •...
  • Page 4 • • • • your luxe® has a compuTer on board to provide precise control of its operation. Fortunately you won't need to be a computer expert to use it. voice menus and a joystick interface put complete control at your fingertips.
  • Page 5 ) and screw it into your Luxe®. slide the included barrel hardware 3.4 blocker over the barrel and secure its cord as far back on the Luxe® body as possible, cinching it tight. the barrel blocker is a critical piece of paintball safety equipment—nearly as important as paintball goggles.
  • Page 6 Turn The marker on by double-clicking (quickly pressing twice) the power button, or by holding it down for two seconds. turn it off by pressing and holding the power button for two seconds. When the Luxe® turns on, the OLed display will be activated, indicating the marker's status.
  • Page 7 LUXE® INTEGRATED AIR BOTTOM LINE • • LUXE® INTEGRATED AIR VERTICAL REGULATOR • • LUXE® POWER CORE • • CLAMPING FEEDNECK • • LUXE® QUICK-SNAP BALL DETENT ASSEMBLY (2) • • LUXE® 3-PIECE BARREL SYSTEM • • • WEIGHT OPERATING PRESSURE...

  • Page 8: 1.2 Installing The Barrel Blocker

    Barrel Blocker serves to protect against accidental discharge of a paintball by catching it before it can cause harm. a Barrel Blocker is included with the Luxe® and must be used every time it is handled in an area where people or property are not properly protected by paintball goggles or paintball field netting.
  • Page 9 INTEGRATED VERTICAL AIR DESIGN REGULATOR The Luxe® Integrated Air design means that The Integrated Air vertical regulator there are no hoses on the outside or inside of is the culmination of more than a the marker. Hoses and hose fittings are the...

  • Page 10: About Compressed Air

    • FIG. 1 if you are using your Luxe® with an adjustable output compressed air system, it should be set to deliver about 650 psi. the Luxe® vertical regulator can accommodate a wide range of input pressures, and lower them to the marker’s operating pressure, so exact adjustment of the air system is not critical, and either low output, or high output pre-set hPa systems may be used.

  • Page 11: Installing An Air System

    [fig. 3.] in addition to grip integrated air systems, the Luxe® may also use standard hose based air systems and accessories, bypassing the grip integrated air system. such accessories are mounted the same way, but will require the use of a vertical regulator (see for removal instructions) which advanced mainTenance 6.2...

  • Page 12: Feathertouch

    Feathertouch control restricts the flow of gas leaving the forward portion of the Luxe Power Core . this provides a cushion of air which softens the bolt’s forward motion. When using the Luxe...

  • Page 13: Adjusting Velocity

    To remove and disassemble The regulaTor, which musT noT be done while iT is pressurized. take three or four shots after every adjustment to allow the gas pressure inside the Luxe® to stabilize. adjust and retest until the marker is firing consistently within the limits for the field where you are playing.

  • Page 14: Adjusting The Trigger

    FIG. 3 both the feel and length of the trigger pull. the Luxe® can be adjusted to a super-sensitive hair trigger, though many players find that a slightly longer, and heavier trigger pull is easier to walk to higher rates of fire.

  • Page 15: Luxe® Barrel System

    The besT qualiTy painTballs will vary in size from one batch to the next and as weather conditions change. although your Luxe® can work well even with a poor paint to barrel fit, optimal performance will be achieved with a proper fit. the ideal fit between the paintball and the barrel is found when the ball is inserted in the bore and does not slip or roll through to the muzzle on its own, yet can be blown out like a blowgun, using a minimal amount of breath.
  • Page 16 Luxe®, use a 5/64-inch allen wrench to remove the four grip screws and completely remove the grip (avoid folding the grip back from one side as this may cause damage.) simply plug the included charger into the marker’s charging port, and plug the adapter into a domestic power outlet.

  • Page 17: Introduction To Programming

    3.2 power button if the Luxe® is unlocked. to access the joystick, use a 5/64-inch allen wrench to remove all four grip screws and the grip. the joystick is located next to the Luxe® speaker. it is marked with arrows to indicate the directions it must be moved to scroll through menu items, and with –...

  • Page 18: Navigation Modes

    Luxe® programming mode is entered by moving the joystick in any direction, or if the Luxe® is unlocked, by turning it on while holding back the trigger. this will place the marker in its main menu, which is indicated by voice feedback and tabs which appear at the bottom and sides of the OLed display. Push the joystick in the directions of its arrows, or pull the trigger to scroll through the available settings, each of which is identified by a verbal response and the OLed display.

  • Page 19: Firing Modes And Settings

    To painTball TournamenT league rules are accuraTe aT The Time of This wriTing, iT is noT uncommon for painTball leagues To make changes To Their rules. in addiTion To The mode choice, some series will require The use of The luxe®’s bps limiT To limiT maximum raTe of fire. be sure To make yourself familiar wiTh The rules of any TournamenT, scenario or game where you will be playing, To be cerTain your luxe®...
  • Page 20 CUSTOm rEBOUND mODE User-definable rebound mode allows the Luxe® to operate with ramping built to meet nearly any imaginable rule set. rebound mode fires as semi-automatic until the set number of activation shots (shots to enter) are fired at a minimum rate (shots to sustain) or faster, at which point the rebound mode kicks in and fires additional shots, maximizing firepower. Once the rate of trigger pulls drops below the shots to sustain setting, one shot is fired per trigger pull.
  • Page 21 Luxe® must be at the Luxe® is equipped with a vision® will stop the Luxe from be made at the shots to sustain rate...
  • Page 22 Luxe® firmware. voice sets may be loaded into voice where one shot triggers the next and may be adjusted from 5 to 60 banks 2, 3 and 4 with the Luxe UsB shot. the Mechanical debounce minutes. (see interface software and cable filtering function of the Luxe®...
  • Page 23 5.1 LUXE® POWEr COrE The hearT of your luxe® is the Luxe® Power Core. this single module comprises both the marker's bolt and exhaust valve system. its compact, tool-free design makes the Luxe® incredibly fast and simple to maintain. the Luxe® should be disassembled and cleaned any time it shows erratic performance, becomes contaminated with paint, dirt or other debris, or for preventative maintenance after 3 or 4 days of use.
  • Page 24 Power Core into the rear of the Luxe® body, with the quick strip latch lifted up. Once the Power Core is in position, close the quick strip latch.

  • Page 25: Ball Detents & Vision Eyes

    STEP ONE PrESS DETENT aSSEmBLY press on The forward poinT of The ball deTenT assembly while sliding the Quick-snap latch forward. this will separate the magnets at the rear, pushing the assembly’s back edge out from the Luxe® body.
  • Page 26 CLEaN VISION EYE POCkET lifT ouT The vision eye from its pocket in the Luxe® body. Using a soft cloth or cotton swab, clean any paint, debris or grease from the passage between the eye pocket and the breech, or from the eye itself. if debris buildup is severe, use a cotton swab dampened with rubbing alcohol for cleaning the vision eye and its pocket and allow them to dry completely before proceeding.

  • Page 27: Introduction

    Luxe®. if you do not feel comfortable with going beyond regular maintenance, see your authorized Luxe® dealer for support.
  • Page 28 • • • • maIN LUXE® markEr COmPONENTS • • CLAMPING FEEDNECK • • • LUXE® 3-PIECE BARREL SYSTEM • • BODY • • LUXE® POWER CORE • • LUXE® QUICK-SNAP DETENT ASSEMBLIES • • VISION EYE RIBBON • • •...

  • Page 29: Servicing The Vertical Regulator

    COVEr inserT a 3/8-inch allen wrench into the top of the Luxe® regulator, and a 3/8-inch allen wrench into the cover lock at the bottom. turn the allen wrenches counter-clockwise relative to one another to unscrew the cover lock, and slide the Luxe®...
  • Page 30 Clean, inspect, lubricate and if necessary replace the adjuster's o-rings, then reinstall it with the reverse procedure. parTs of The luxe® inTegraTed air verTical regulaTor use lefT-handed Threads. These parTs musT be Turned counTer-clockwise To screw Them in and clockwise To unscrew Them—The opposiTe direcTion of normal screws.

  • Page 31: Ball Detent Assemblies

    The ball deTenT plunger or iTs spring are worn and need replacing, this is a relatively simple task. remove the ball detent assemblies from the Luxe®, and press their plungers in and out. You should see one of the plunger's fingers moving back and forth across the detent release hole.

  • Page 32: Grip Frame Removal

    Once the solenoid manifold is separated from the receiv- er, the vision eye strip is free to be lifted out of its channel in the Luxe® body. With the ball detent assem-...

  • Page 33: Quick-Strip Plug Disassembly

    • aDVaNCED maINTENaNCE 6.5 QUICk-STrIP PLUG DISaSSEmBLY iT may occasionally become necessary to disassemble the Luxe® Power Core’s quick strip plug. First, remove and disassemble the Power Core, following the instructions in mainTenance 5.1 Unscrew the bolt guide from the quick strip plug and remove it [fig.
  • Page 34 Power Core in the Luxe® body. inspect the lower end of the degassing valve core pin for signs of wear or bending, its edges should be square and undamaged.

  • Page 35: Troubleshooting

    • • on someThing and will noT slide ouT. it may catch on the Power Core. With the Luxe® FIG. 1 unloaded and degassed, loosen the front grip frame [fig. 2,]...

  • Page 36: Limited Warranty

    Technology group producTs is provided by facTory Trained service Technicians aT luxe® auThorized dealers. dlx Technology group warranTs for one (1) year To iniTial reTail purchaser ThaT The painTball marker and regulaTor componenTs are free from defecTs in maTerials and workmanship.
