Summary of Contents for Surna Surna IsoStream SCMAHV-42

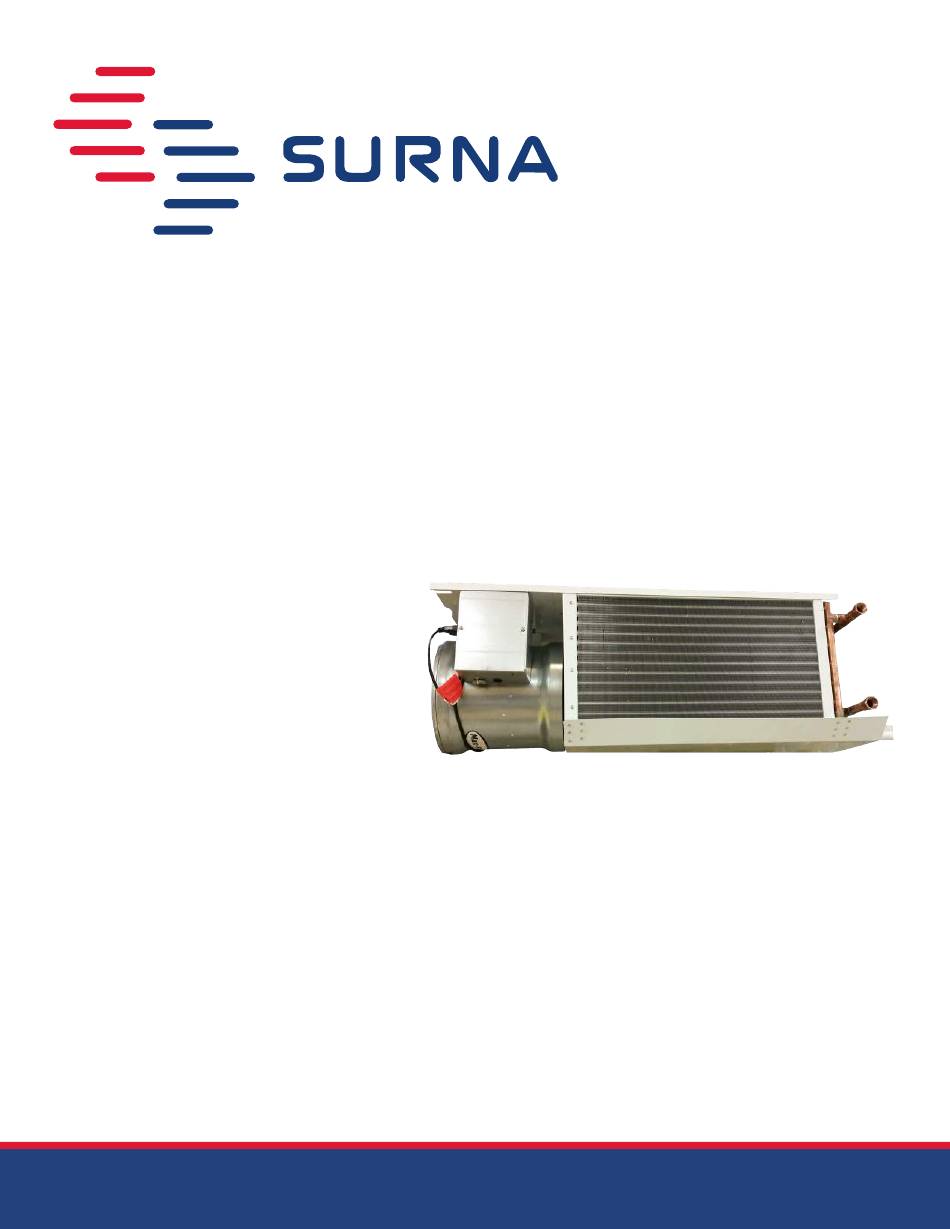

- Page 1 303.993.5271 Surna IsoStream Air Handler Operating & Maintenance Manual Models: SCMAHV-42 Revised: September 2015...
-
Page 3: Table Of Contents
Table of Contents Warranty Information Limited Warranty Limitation of Liability Warranty Disclaimer Product Suitability Service Under Warranty Service NOT Under Warranty Parts List Routine Maintenance Warnings Safety Symbols Air Handler Safety Guide Installation Instructions Mechanical Electrical Wiring Plumbing Plumbing Tips System Specifications Wiring Diagram... -
Page 4: Warranty Information
Warranty Disclaimer Thank you for choosing the Ceiling Mount Air Surna provides product information in this Handler by Surna. Because your air handler is literature for the sole purpose of identification, built with leading technologies and the highest and does not state or imply that the products are... -
Page 5: Parts List
Ceiling Mount Air Handler. consist of routine heat exchanger cleanings, biannual check-ups that include (but are not 1. Surna Ceiling Mount Air Handler Manual limited to); heat exchanger inspections, electric 2. Ceiling Mount Air Handler heater inspections/cleaning of the internal 3. -
Page 6: Warnings
This document contains all information required to install and operate the Surna Ceiling Mount air handling device. Failure to follow the directions provided herein may impair the safeties... - Page 7 DO NOT rated for the load of the air handler. remove the grounded connection while power is being supplied to the Surna air handling equipment. Doing so presents an electric shock hazard to users and service personnel. Do not plug other equipment into the socket outlet on the chassis exterior.
-
Page 8: Installation Instructions
Installation Instructions Electrical All wiring shall comply with local and national Mechanical Installation codes. High and low voltage terminal blocks are provided in the unit’s electrical panel. A This air handler unit is designed for installation in a knockout is provided in the cabinet for the level horizontal orientation onto either a ceiling or routing of field wiring. -
Page 9: Wiring
Wiring connections could cause damage to the WARNING: Turn off the breaker until all electrical equipment or servicing personnel. When installing connections are made. the power wiring, verify that the line conductor is connected to the terminal marked “L”, and the WARNING: This unit must be connected to a Neutral conductor is connected to the terminal... -
Page 10: Plumbing
Plumbing will operate most efficiently with higher flow rates, The air handler units has a dedicated water inlet while low flow rates will not provide enough connection and a dedicated water outlet cooling for the unit to perform optimally connection. When installing these connections, take care to verify that these connections are The air handler’s condensate drain has a built in not reversed, or the unit will not operate properly. -
Page 11: Plumbing Tips
Important Plumbing Tips 8 The air handler water inlet and outlets are ¾” NPT. 1. Total manifold size and length will vary depending on specific circumstances, 9. The air handler is marked with “IN” and number of air handlers, etc. Choose a “OUT”... -
Page 12: System Specifications
System Specifications Dimensional and Electrical Data Elevation and Glycol Derating... - Page 13 Cooling Data...
-
Page 14: Wiring Diagram
Wiring Diagram Use Only Copper Supply Wires Legend Device Description Fan Module 1 Transformer Contactor 1 Socket Outlet 1 Low Voltage Terminal Block Phase Conductor Connection Neutral Conductor Connection Ground Connection Primary Circuit Conductors Class 2 Secondary Circuit Conductors Thermostat Switch Connections... - Page 16 303.993.5271 info@surna.com surna.com 1780 55th Street Suite A, Boulder, CO 80301...
