INSTRUCTIONS FOR INSTALLING AND
OPERATING CHILLI CONTROL PANELS
Introduction
The Chilli Control Panels contain 2, 5,
7 or 10 illuminated push buttons
(see Figures 2 and 3 for details).
These buttons are used to output a
memory or sequence which has been
previously programmed into the Chilli
Pro or Spice dimmers on the network,
or to turn the outputs off.
The control panel can be fitted to any
UK standard single gang back box.
The keyswitch versions of the control
panels can be fitted to any UK
standard double gang back box.
Connection to the Chilli network is
made via the connector at the rear of
the plate.
The network cable used to connect the
control panels to the dimmers must be
Cat 5 (100 MHz) FTP cable.

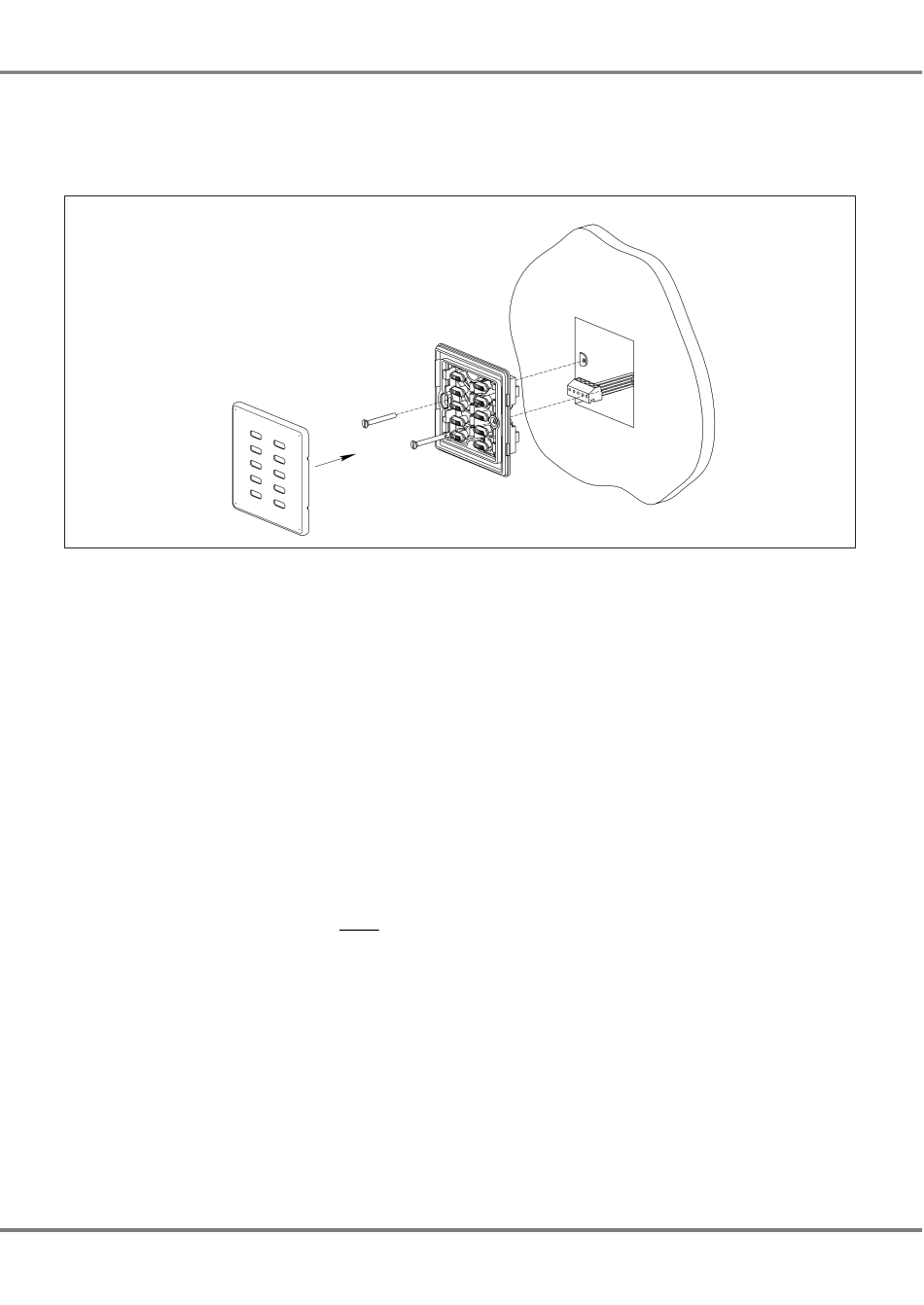

Figure 1: Installation of the Control Panel
Installation
Remove the front cover by unclipping it
from the frame. Offer the panel up to
the wallbox and connect the network
cable to the 5 pin header on the PCB
ensuring the correct orientation:
+12V Orange pair
CAN-H Blue/White
CAN-L Blue
0V Green pair
SH Brown pair
A termination resistor is supplied fitted
to the connector. Remove the resistor
unless the control panel is at the
beginning or end of the Chilli network.
Screw the panel to the wallbox using
the screws supplied. Refit the front
cover by clipping it back onto the frame
(see Figure 1).
Zero 88 Lighting Ltd.
Zero 88 Lighting Ltd. reserves the right
to make changes to the equipment
described in these instructions without
prior notice. E & OE.
© Zero 88 Lighting Ltd. 2004.
Issue 4 - September 2004
Stock No. 73 - 862 - 00
