Page 1: Table Of Contents
POWXG7204 APPLICATION ................... 3 DESCRIPTION (FIG. A) ..............3 PACKAGE CONTENT LIST .............. 3 SYMBOLS ..................4 ADDITIONAL SAFETY RULES FOR CULTIVATORS ..... 5 To ensure safe operation ..................5 5.1.1 Operator responsibility ....................5 5.1.2 Child safety ......................... 6 5.1.3... - Page 2 POWXG7204 8.5.3 Handlebar adjustment ....................9 TECHNICAL DATA ................9 NOISE ....................9 MAINTENANCE AND STORAGE ............. 9 11.1 Cultivator maintenance ..................... 9 11.2 Engine maintenance ....................9 11.3 Long term storage ..................... 9 SERVICE DEPARTMENT ..............10 WARRANTY ..................10 ENVIRONMENT ................
-
Page 3: Application

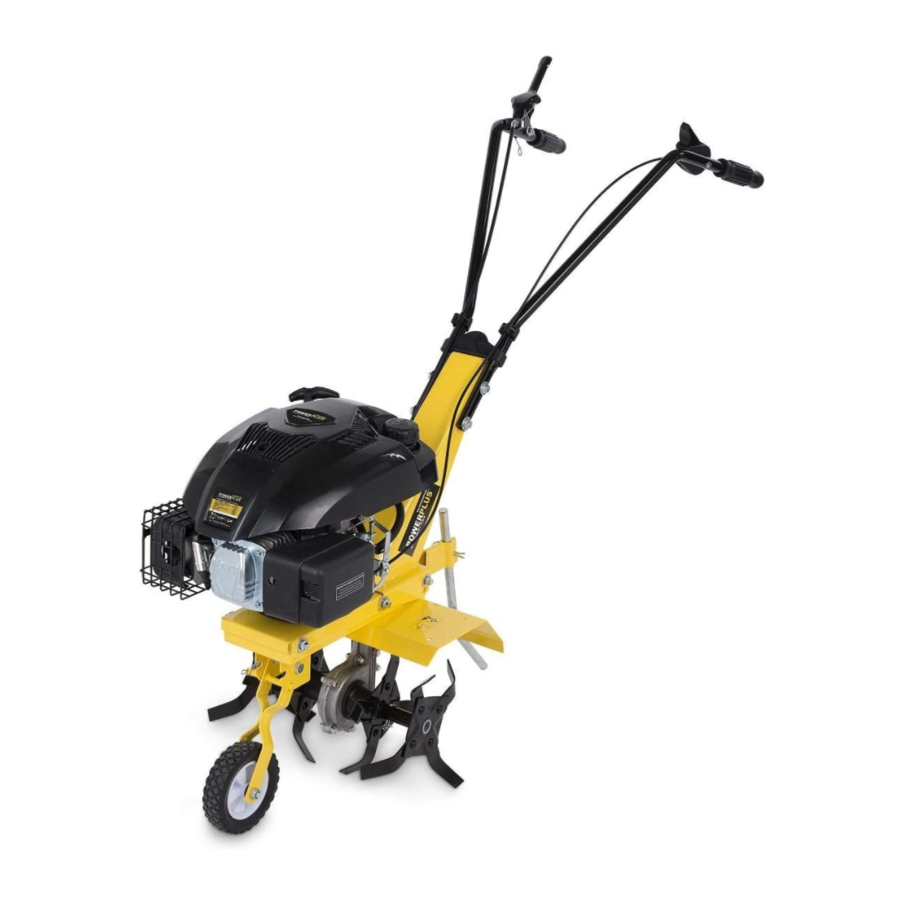

POWXG7204 CULTIVATOR 140CC POWXG7204 APPLICATION The gasoline cultivator is suitable for cultivating the sandy soil and clayey soil of canopied vegetables base and dry land. For weedy and deep plots, remove the weeds before using the cultivator to cultivate the land. -
Page 4: Symbols
POWXG7204 SYMBOLS The following symbols are used in this manual and/or on the machine: Denotes risk of personal injury or Wear gloves. damage to the tool. In accordance with Read manual essential safety before use. standards of applicable European directives. -
Page 5: Additional Safety Rules For Cultivators
POWXG7204 Remove the ignition cable before all Maximum motor maintenance work, and revolutions. read the instructions for use. Check the engine oil level before Don’t expose to rain. start. Capacity: 0.6 litres. Multigrade oil: 20W-40. Do not use the tool For outdoor use only. -
Page 6: Child Safety
POWXG7204 Wear sturdy, full-coverage footwear, operating this cultivator, barefoot or with open toe shoes or sandals increases your risk of injury. Dress sensibly. Loose clothing may get caught in moving parts, increasing your risk of injury. Be alert! Operating this cultivator when you are tired, ill or under the influence of alcohol or drugs may result in serious injury. -
Page 7: Petrol Safety Warnings
POWXG7204 The maximum safe grade angle shown is for reference purposes only and should be determined according to the type of the tool. Before starting the engine, check that the cultivator is not damaged and is in good condition. For your safety and the safety of others, exercise extreme care when using the cultivator up or down hill. -
Page 8: Install The Resistance Pole
POWXG7204 7.2.4 Install the resistance pole Fix the resistance pole on the base with a columniform pin, then insert a B-shape pin on the columniform pin to prevent it moving out (Fig. 9). 7.2.5 Handles height adjustment Loosen the two adjustment bolts at the backside of the arm holder, adjust the handles to the desired height, and then fasten the adjustment bolts again. -
Page 9: Depth Adjustment
POWXG7204 8.5.2 Depth adjustment Draw out the B-shape lock and pin, adjust the resistance pole to an appropriate position, then replace the pin and fix with B-shape lock (Fig. 17). 8.5.3 Handlebar adjustment Disentangle the fastening bolts on both sides, adjust the handlebar to a suitable position, then tighten the bolts. - Page 10 We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool. Repairs may only be carried out by an authorised customer service centre for Powerplus tools. You can always obtain more information at the number 00 32 3 292 92 90.
- Page 11 POWXG7204 ENVIRONMENT Should your appliance need replacement after extended use, do not dispose of it with the household refuse, but in an environmentally safe way. Please dispose of used motor oil in a manner that protects the environment. We suggest you take it in a sealed container to your local service station for recycling.
