Summary of Contents for Atosa JT22

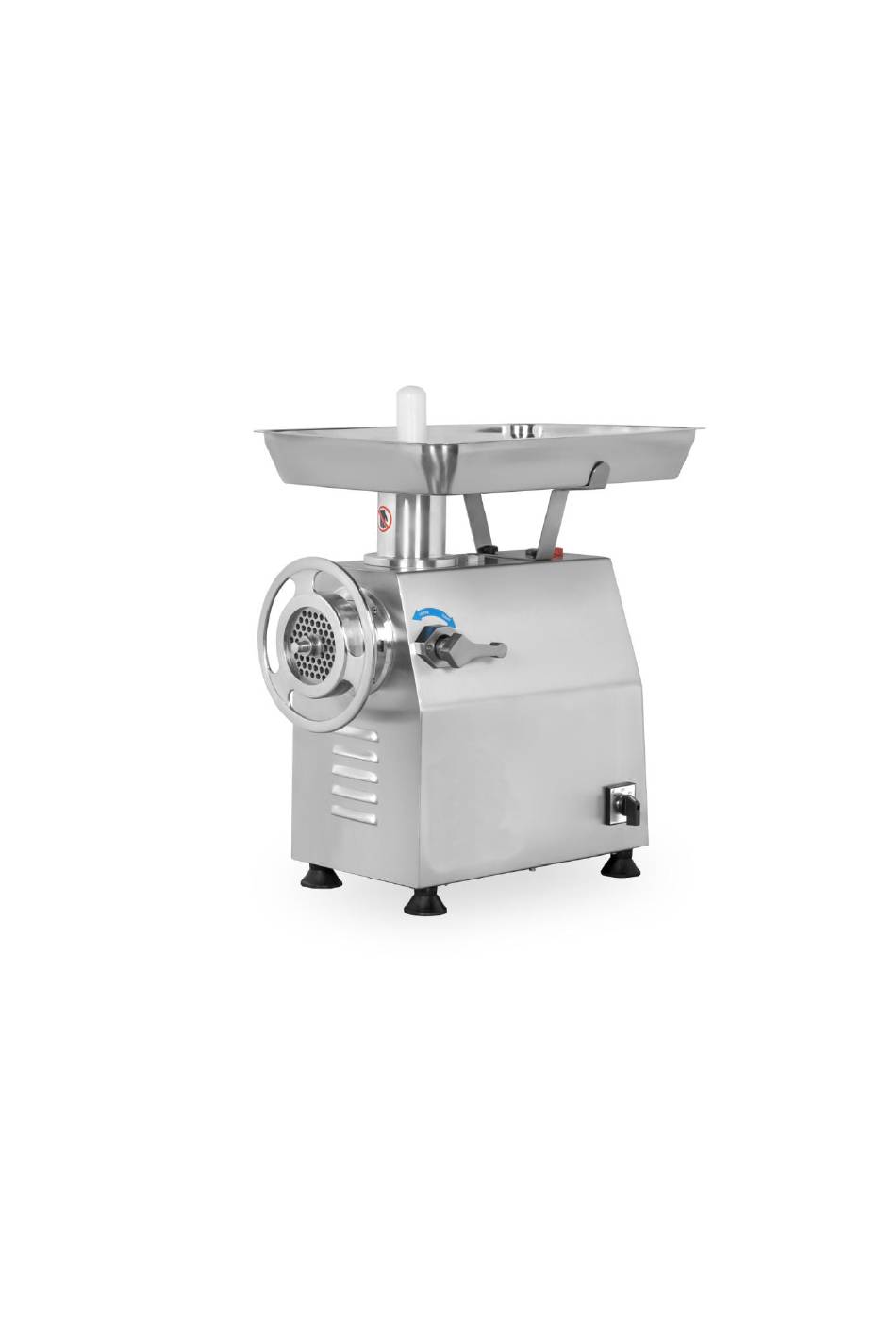

- Page 1 Meat Grinder Instruction Manual Model: JT22/JT32 Please read this instruction manual carefully before operating this equipment...
- Page 2 Safety Tips Read this instruction manual before using and keep them available at all times! INTRODUCTION This instruction manual gives the customer all the necessary information about the appliance and the manufacturing standards applied, as well as all instructions for use and maintenance so that the appliance can be used correctly maintaining its efficiency in time.
- Page 3 1 INFORMATION ABOUT THE APPLIANCE 1.1 GENERAL WARNINGS The appliance must only be used by personnel who has carefully studied this manual and understood all the safety standards described herein. If there should be a turnover in personnel, it is necessary that this manual is carefully studied before using the appliance.
- Page 4 Robust and stable components and structure Maximum reduced noise level thanks to the geared transmission and oil bath Easy to handle 2 TECHNICAL DATA FIG-2 TECHNICAL CHARACTERISTICS Model JT22 Voltage 240V/50Hz Power 1.1 KW Holes in disk 6mm/8mm Production: Max.
- Page 5 3 CONSIGNING THE APPLIANCE 3.1 CHECKING PACKAGING UPON CONSIGNMENT When the goods are received proceed with opening the packaging if there are no signs of damage. if when the goods are delivered there are signs of damage to the packaging, such as agent or courier, and within three days from the date indicated on the documents draw up a detailed list and report of all damage to the goods.
- Page 6 5 CIRCUIT DIAGRAM 240V/50Hz 6 EXPLODED VIEW...
- Page 7 Part List...
- Page 8 MAINTENANCE 7.1After the job, clean carefully the machine, it is enough to dry by a cloth. 7.2The meat cutter should be carefully to handle, it is necessary to replace it, if not sharp enough. 7.3Don＇t repeatedly starting the machine and cannot be continuous running more than 5 minute.
