1. Begin my measuring out the holes on the rear door for drilling.
2. All holes will be drilled to 13/16" diameter bit. It is highly recommended to measure
hole placement on the vehicle and drill the holes with the plastic panel off the vehicle
to prevent damage.

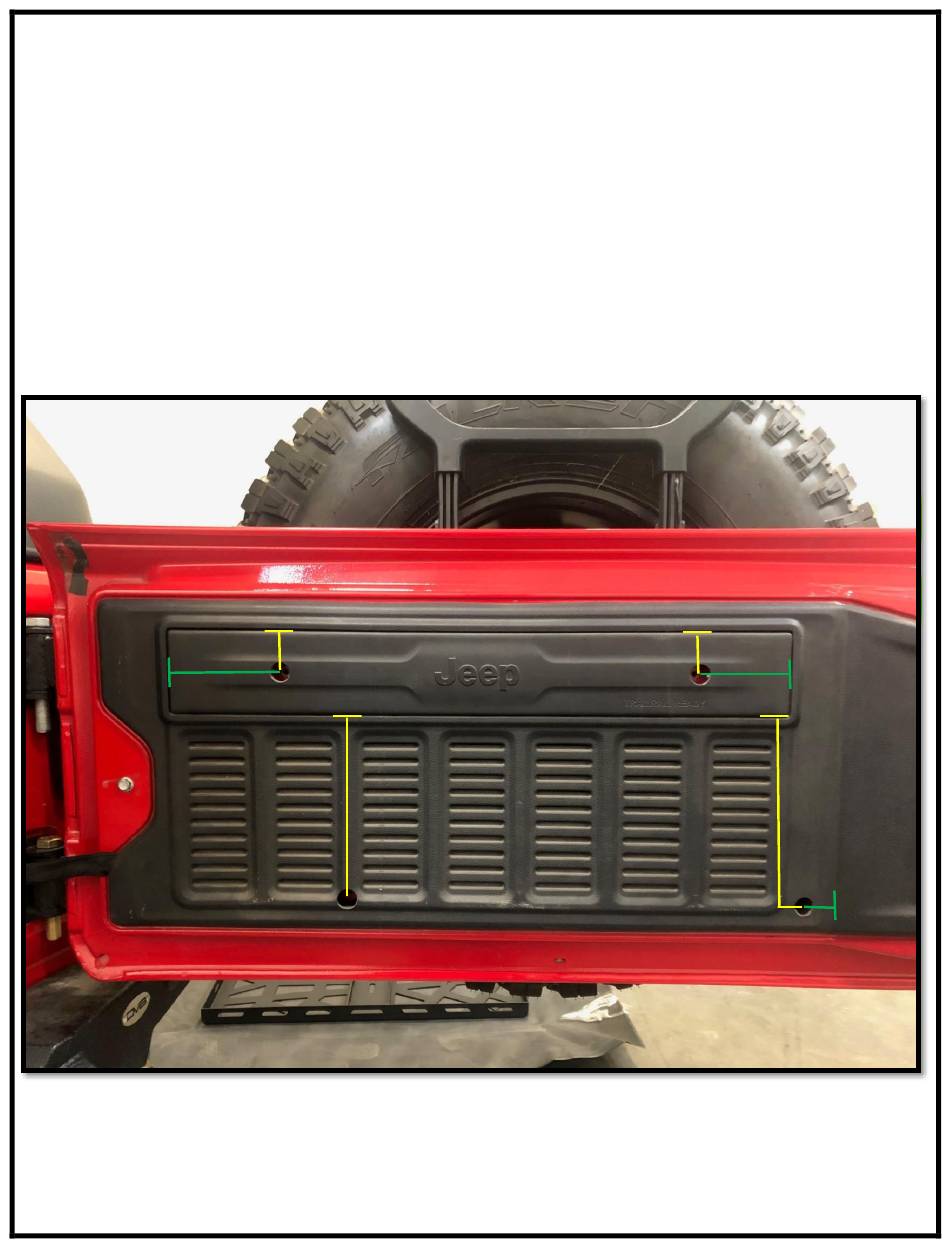

3. Use below image for measuring. All measurements are from a fixed point on the panel
to the center of the hole.
4-9/16"
Center hole on ridge between vents
JL TRAIL TABLE
(TTJL-01)
1-3/4"
7-7/8"
1-3/4"
3-5/8"
7-7/8"
1-1/8"
