SWITCH 6 USER GUIDE
WARNING!
DO NOT REMOVE THE COVER WITHOUT FIRST
COMPLETLEY DISCONNECTING THE SWITCH 6 FROM THE
MAINS SUPPLY

To Remove The Cover:

Isolate and disconnect the Switch 6 from the mains supply.
The mains supply terminals are located under the top cover.
Remove the four screws from the side end plates to lift off the cover.

Connecting The Mains:

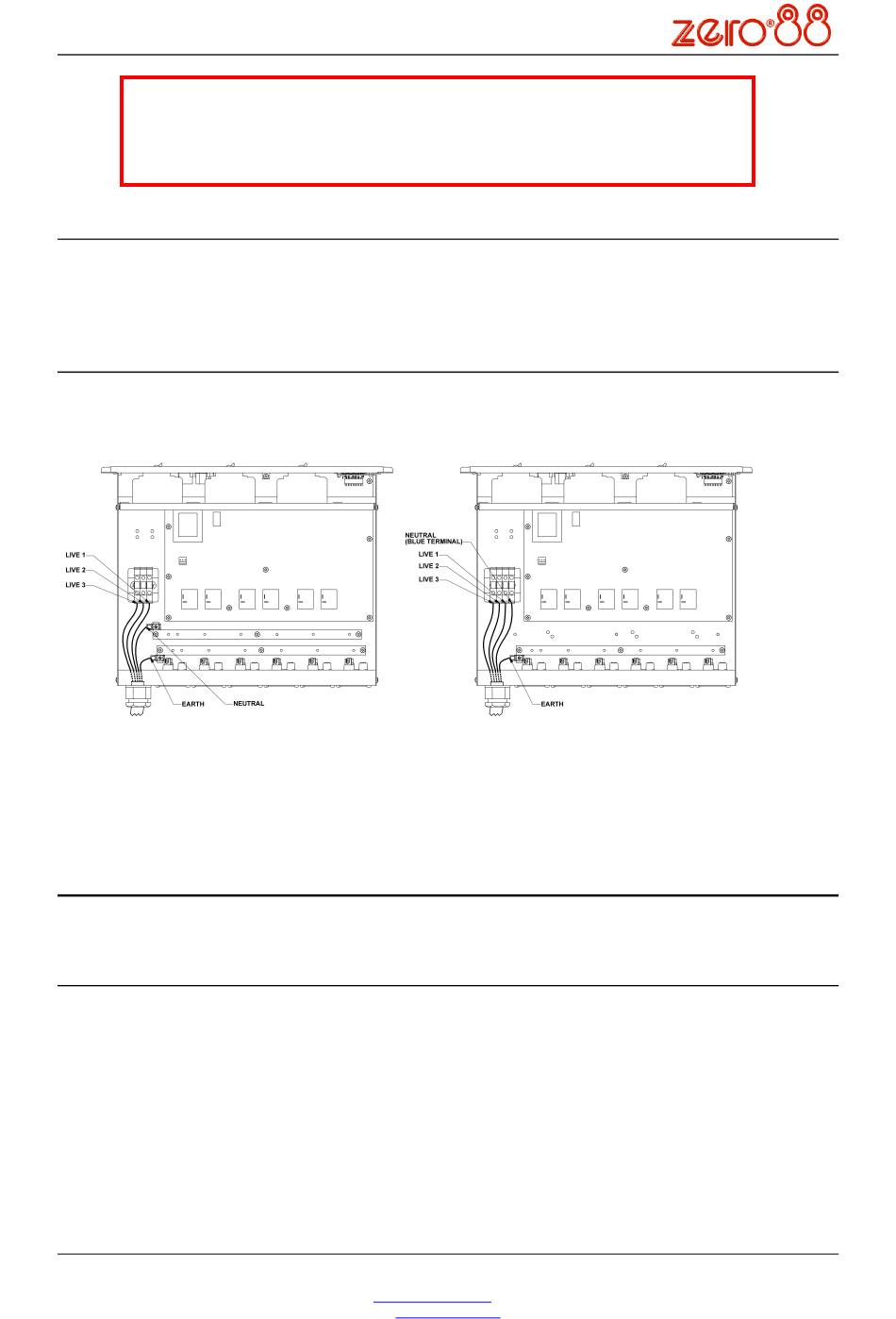

The Switch 6 is supplied configured for three-phase operation. As shown in the diagram
below;
Single Pole Breakers
Neutral Disconnect Breakers
A linking bar (part 00-380-00) can be supplied to order, for single-phase operation

Mounting/Installation:

The Switch 6 has side brackets for mounting in a standard 19" rack/case.

Ventilation:

The Switch 6 is cooled by natural convection. In order to prevent the unit from overheating,
DO NOT block the vents located on either side of the unit.
Zero88 Lighting Ltd, Usk House, Llantarnam Park, Cwmbran, Gwent NP44 3HD, U.K
Tel: +44 (0) 1633 838088 (24hr Answer Phone) Fax: +44 (0) 1633 867880
73-877-00
Email:
sales@zero88.com
IM7804Switch6ManualIssue1_3.doc
www.zero88.com
Page 1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWITCH 6 and is the answer not in the manual?

Questions and answers

Summary of Contents for Zero88 SWITCH 6

  • Page 1 The Switch 6 has side brackets for mounting in a standard 19” rack/case. Ventilation: The Switch 6 is cooled by natural convection. In order to prevent the unit from overheating, DO NOT block the vents located on either side of the unit.
  • Page 2 DMX Address: will show the DMX address and if it has been terminated a The Switch 6 uses a start or block address, which can be small dot will be shown in the bottom right of the third set from 001 – 507.
  • Page 3 Alarm message is received from another unit on the Press the ‘Up & Down’ Arrows until the temperature is network, then the Switch 6 will fade all outputs to 80%, and shown in the display, shown as xxC, where xx is the the display will show ‘ALA’.
  • Page 4 WITHOUT FIRST COMPLETELY DISCONNECTING THE SWITCH 6 FROM THE MAINS SUPPLY. Electrical: The Switch 6 range is designed to operate on 230V at 50Hz. The unit may not operate satisfactorily outside this specification. - Mains Supply Voltage: 230V +/- 10% - Single or 3 Phase (Star Only) - Frequency: 45 –...
