DFRobot DFR0264 Quick Start Manual

Solar charger

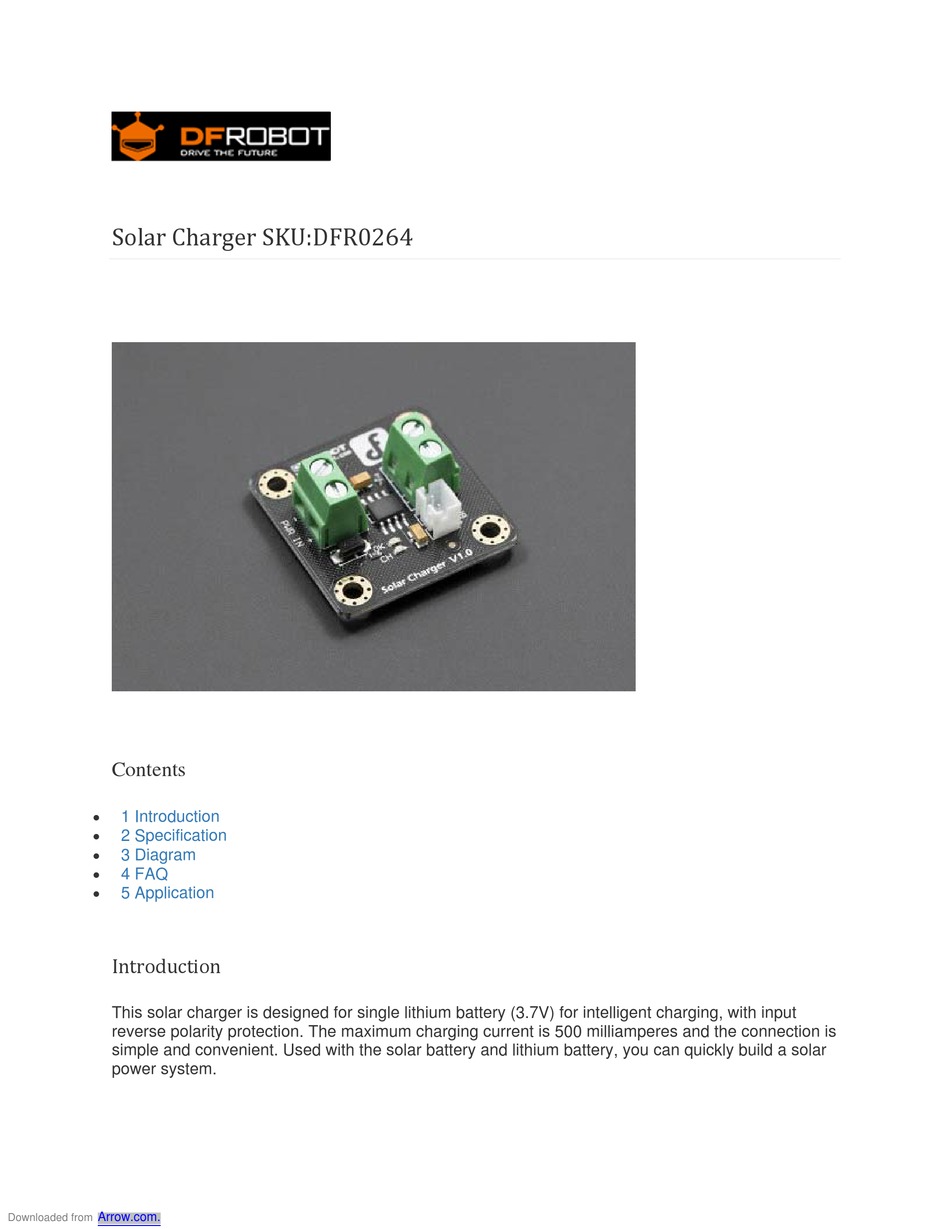

Solar Charger SKU:DFR0264

Contents



1 Introduction









Introduction

This solar charger is designed for single lithium battery (3.7V) for intelligent charging, with input

reverse polarity protection. The maximum charging current is 500 milliamperes and the connection is

simple and convenient. Used with the solar battery and lithium battery, you can quickly build a solar

power system.

Arrow.com.

Downloaded from

Table of Contents

Do you have a question about the DFR0264 and is the answer not in the manual?

Page 1 Solar Charger SKU:DFR0264 Contents  1 Introduction  2 Specification  3 Diagram  4 FAQ  5 Application Introduction This solar charger is designed for single lithium battery (3.7V) for intelligent charging, with input reverse polarity protection. The maximum charging current is 500 milliamperes and the connection is simple and convenient.
Page 2 Specification  Input Voltage: 4.4~6V  Charging Current: 500mA Max (Depending on the solar battery supply capability)  Charging Cutoff Voltage: 4.2V  Operating Temperature:-40~85  Module Size: 33mm*33mm*12mm  Requisite battery: 3.7V lithium battery (Please note the maximum permissible charging current of the lithium battery) ...
Page 3 Application Material:  Solar Panel (5v 260mA)  [Solar Charger]  3.7V Polymer Lithium Ion Battery - 1000mAh Powered By DFRobot © 2008-2017 Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from...
