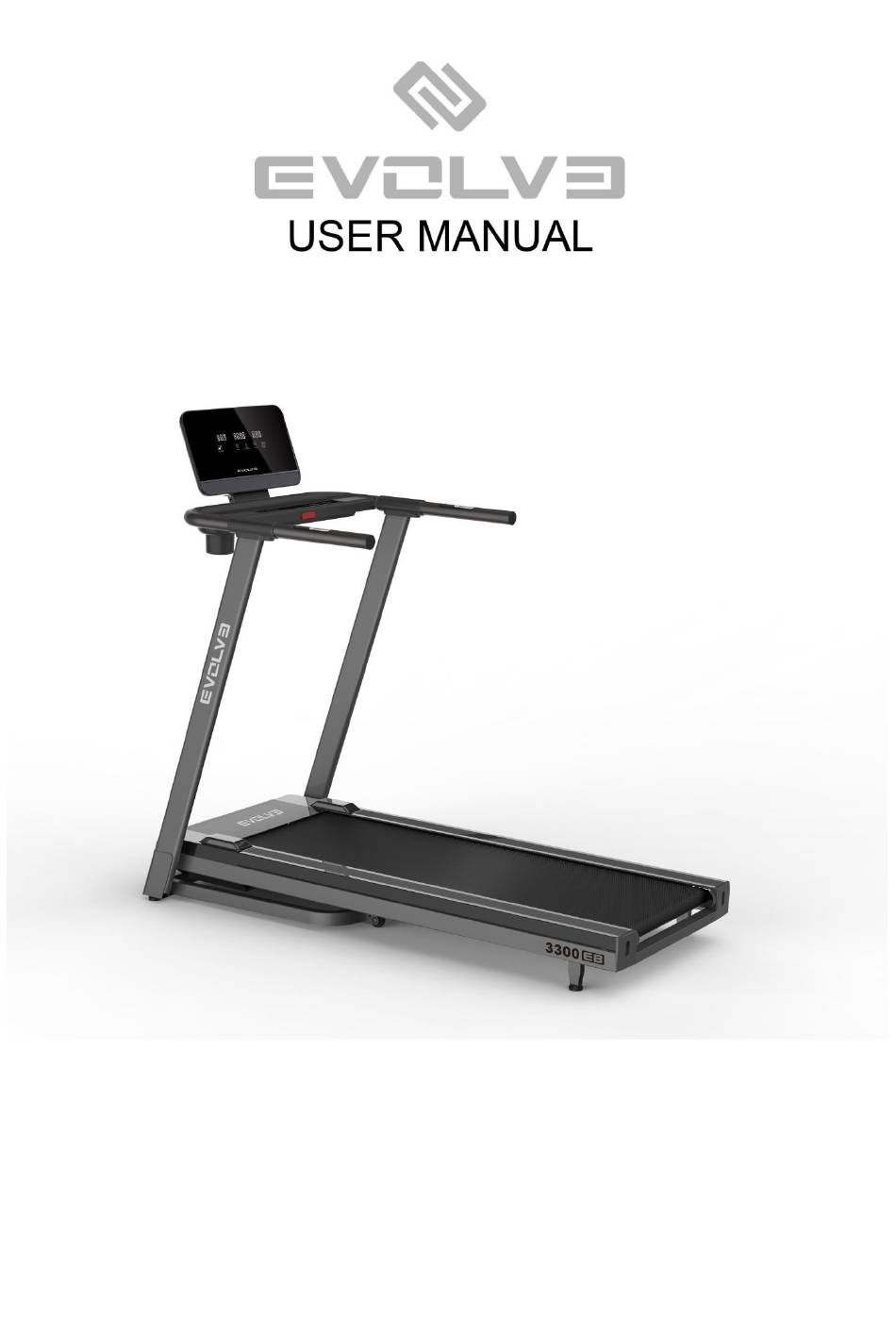

Evolve EV-HT-150 User Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the EV-HT-150 and is the answer not in the manual?

Questions and answers

Summary of Contents for Evolve EV-HT-150

Page 2: Safety Precautions
THANK YOU Thank you for purchasing this product. The product will help you keep fitter, healthier and better in a very easy way. User Guide 1. Always connect the appliance to a socket with a grounded circuit and no other appliances connected to it. It is recommended not to use any extension cords.
Page 3 ◆ Stop the machine if anything goes wrong and cut the power immediately. ◆ Ask local distributor to handle any issue or provide service. It is not allowed to dismantle the components personally. DANGER ! To reduce accidents or harm to others, please check following rules. ◆...
Page 4 （6）Patients with Artificial heart rhythm problem. （7）Patients with malignant tumors. （8）Patients with thrombosis . （9）Patients with diabetes-caused perceptual disturbance. （10）Patients with skin injuries. （11）Patients with a fever above 38°C. （12）Patients with bent back bone. （13）Patients with pregnancy or in a menstrual period. （14）Person who has any feeling of discomfort.
Page 5 - may cause fire or electric shock. ◆ Intended for one person at a time, tell people around not to get too close. - may fall down and cause injury. ◆ People who are not conscious or can’t operate by themselves cannot use the treadmill. - may cause accident or get injury.
Page 6 plug and make a call. - may cause electric shock and injury. ◆ Pull out the plug if there are any power failures. - may cause accident and injury when power resumption. ◆ You should hold the plug not the wire when pulling the plug out. - may cause short circuit, electric shock and fire.
Page 7: Unpacking And Assembly
Unpacking & Assembly WARNING: Use extreme caution when assembling this treadmill. Failure to do so could result in an injury. NOTE: Each step number in the assembly instructions tells you what you will be doing. Read and understand all instructions thoroughly before assembling the treadmill. UNPACK AND VERIFY THE CONTENTS OF THE BOX: ●...
Page 8 HARDWARE BAG LIST L shape spanner S6 1 pc Allen C.K.S. half thread screw（M8*35*20）2pcs L shape spanner S5 1 pc Hexagon socket head full tooth bolt（M8*12）2pcs TAB bolt 1 pc www.ev o lv e - f itn es s. e u...
Page 9 Treadmill instruction Safety key Console Handlebar Upright post Motor cover Running belt Side rail Rear cover Technical information Folded: 816*690.5*1385mm Dimensions Unfolded: 1510*690.5*1350mm 1250*420mm Running surface 1.0－13.0km/h Speed Remark：WE RESERVE THE RIGHT TO AMEND THE PRODUCT WITHOUT PRIOR NOTICE. www.ev o lv e - f itn es s. e u...
Page 10 ASSEMBLY INSTRUCTIONS Step 1: Take out the machine from box and put it on the flat floor. (As shown) Step 2: Hold the console and raise the upright post, then lock the upright post to the base frame with 2pcs of Allen C.K.S. half thread screw （M8*35*20） . Then lock the console to upright post with 2 pcs of Hexagon socket head full tooth bolt（M8*12）...
Page 11 SETTING UP YOUR TREADMILL PLACE To make exercise a desirable daily activity for you, the treadmill should be placed in a comfortable and convenient setting. This treadmill is designed to be used in minimal floor space and go nicely in your home. ⚫...
Page 12 GETTING STARTED TURN POWER ON Put the power cord into the electrical outlet with 10A. Flip this switch to the “ON” position. The screen shines with prompt sound. SAFETY KEY AND CLIP The safety key is designed to cut the main power to the treadmill if you fall. Therefore, the safety key is designed to bring the treadmill to an immediate stop.
Page 13 Using instruction： Treadmill folding and moving: 1、Folding 1.Cut off the power before folding the treadmill. 2.Check if the incline is in the lowest position. 3. Lift up the treadmill to the upright position, the E-zfit linking part will automatically stick in the cylinder.
Page 14 3、Moving First you need make sure following things are completed before moving： 1：the power is off； 2：the plug has been pulled out from the socket； 3：the treadmill has been folded； Then you can catch the end of treadmill with one hand, and catch the handlebar at the same side with another hand, tilt 40~50°up to chest to move the treadmill slowly, as shown in picture below: Grounding guide：...
Page 15: Product Instruction
Product Instruction 1.Computer board instruction： LED display Speed “+”/’-“ Speed quickly button Program stop Star key mode 1．1 P0 is manual program; P1-P36 are preset auto programs; U01-U03 are user programs, and one FAT program. 1．2 LED display with 8 operation keys； 1．3 Speed range：1.0~13.0KM/H；...
Page 16: Safety Key Function
Button instruction: “PROG”： Program select key， when the treadmill is stopped, cycle select from the manual 3．1 program to “P1-P36→U01~U03→FAT as you prefer. “MODE”：under manual mode, press this button to cycle from countdown－distance 3．2 countdown－ calories countdown—normal mode. For P1-P36, the default countdown time is 30 mins.
Page 17: Safety Guidelines
7. Safety guidelines： Put the power cord into the electrical outlet with 1 0 A. Flip the switch to the “ON” position. The screen shines with prompt sound； 7 . 2 Put the safety key in the correct position and clip it to your clothes, then turn the power on, the LCD window light is shining, and you hear a sound “bebe”, the treadmill enters in to the P0 Normal Mode；...
Page 18: User Program
7.16 The electric control system is always under inspection. Treadmill will stop once something abnormal happens. Window will show the error message and release a sound.； 7.17 BODY FAT FUNCTION：When the treadmill is stopped, press the "PROGAM" key until you see “FAT”...
Page 19 a: Age setting range: 15-80 years old, default is 25 years b: Default target heart rate (THR): (220 - age) * 0.6 c: Target HRC rate can be modified, the range: 80-180 d: Set the time, the default 30 minutes, the range: 5-99 minutes 9.4 Speed change relationship a: HRC detects heart rate every 30 seconds (heart rate is shown).
Page 20 １０. Program P1-P36 Speed Chart Seg. Pro. class SPEED SPEED SPEED SPEED SPEED 10.0 10.0 10.0 SPEED 10.0 SPEED 10.0 11.0 SPEED 11.0 SPEED 10.0 11.0 12.0 SPEED 10.0 11.0 SPEED 11.0 11.0 SPEED 10.0 10.0 10.0 10.0 SPEED SPEED SPEED SPEED SPEED...
Page 21 Fault and method treadmill problem Possible reason Maintenance methods a. no power Insert the plug into the socket b. Safety key not in position Put the safety key in a right position Treadmill cannot Check the wire connection and controller work c.
Page 22: General Fitness Tips
： Stopped in error status, the computer buzzes for 9 times and shows Overcurrent protection error code in the meantime. About 10 seconds later, the treadmill enters controller detects the current into stand-by status and can be turned on as usual. of DC motor more than +6A over seconds...
Page 23: Warm-Up / Stretching Exercises
Warm-up / stretching exercises A successful exercise session begins with warming up exercises and ends with exercises for cooling down and relaxing. These warming up exercises prepare your body for the subsequent demands made upon it. The cooling down / relaxation period after the exercise session ensures that you do not experience any muscular problems.
Page 24 EXERCISES FOR THE UPPER THIGH Support yourself by placing your hand on the wall, then reach down behind you and lift up your right or left foot as close to your buttocks as possible. Feel a comfortable tension in your front upper thigh. Maintain this position for 30 seconds if possible and repeat this exercise 2 times for each leg.
Page 25 EXERCISES FOR THE KNEES Sit on the floor and stretch out your right leg. Bend your left leg and place your foot on your right upper thigh. Now try to reach your right foot with your right arm. Maintain this position for 30-40 seconds if possible.
Page 26: Exploded Drawing
EXPLODED DRAWING： 26 | www.ev o lv e - f i tn e s s. eu...
Page 27: Exploded Drawing Part List
EXPLODED DRAWING PART LIST Part name Base frame Main frame Left upright post Right upright post Console frame Fixed clip for rear cover of dispay Ezfit linking parts Fix tube of motor cover Half-tooth bolt with large flat head and inner hexagonal M10×55×20 Full –tooth bolt with inner hexagonal cylindrical head M8×75 Full –tooth bolt with inner hexagonal cylindrical head M8×20 Full –tooth bolt with inner hexagonal countersunk head M8×12...
Page 28 Star/stop handle pulse Handle pulse wire Controller Safety key Power connection wire Power connection wire Switch Fuse Power connection wire Power cord buckle Plug cable Front roller Rear roller Hydraulic Motor Running board Running belt Motor belt Motor cover Rear cover Side rail HANDLE BAR COVER(upper) HANDLE BAR COVER(bottom)
Page 29: Treadmill Maintenance
TREADMILL MAINTENANCE Proper maintenance is very important in order to ensure a faultless condition of the treadmill. Improper maintenance can cause damage to the treadmill or shorten the life of the product. All parts of the treadmill must be checked and tightened regularly. Worn out parts must be replaced immediately.
Page 30 Observe whether the running belt is toward the right or left side of the deck. ●If toward the left side of the deck, using wrench, turn the left adjustment bolt clockwise 1/4 turn and the left adjustment bolt counter clockwise 1/4. ●...
Page 31: Important Notes
● Warning: The treadmill must be turned off to avoid electrical shocks. The power cord must be pulled out of the socket, before starting the cleaning or maintenance. ●After each training: Wipe the console and other surfaces with a clean soft and damp cloth to remove sweat residues.
Page 32: Terms And Conditions
WARRANTY TERMS AND CONDITIONS This warranty is valid only in accordance with the conditions set forth below. Warranty applies only while the followings three conditions are met. ▪ It remains in the possession of the original purchaser and proof of purchase is demonstrated.
