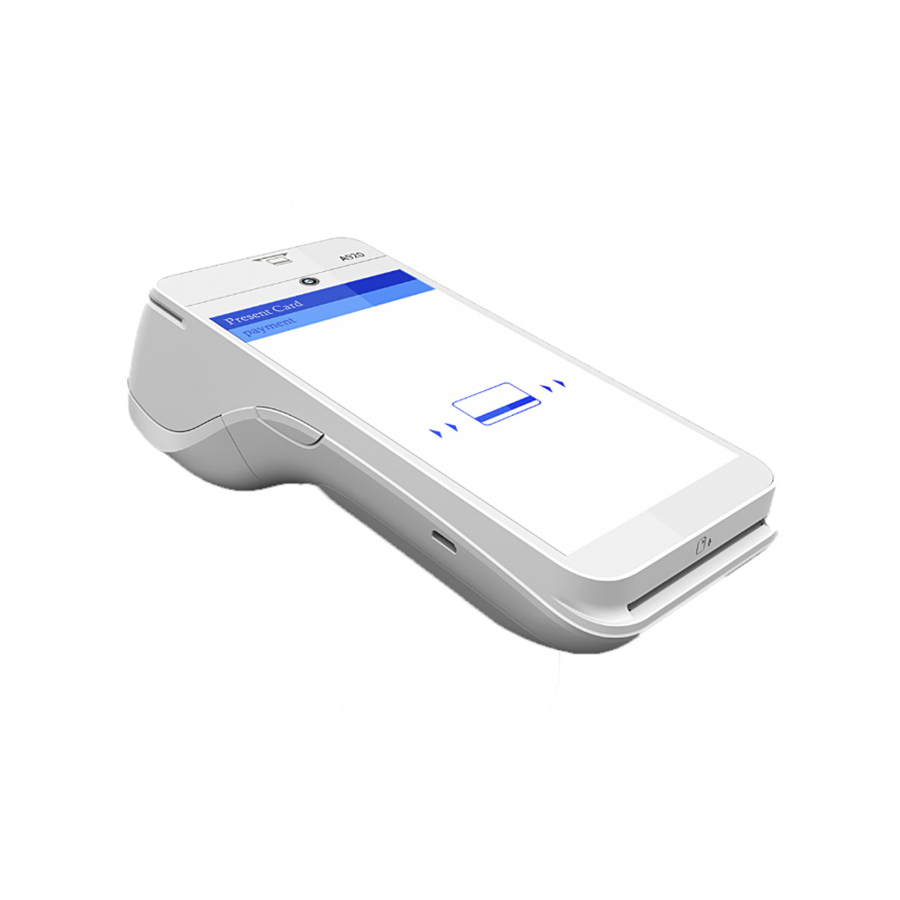

STAX PAX A920 Quick Reference Manual

Contactless Area
Magnetic
Strip
Reader
Front
Facing
Camera
LCD
Screen
Power
Button
EMV Reader
support@fattmerchant.com | fattmerchant.com

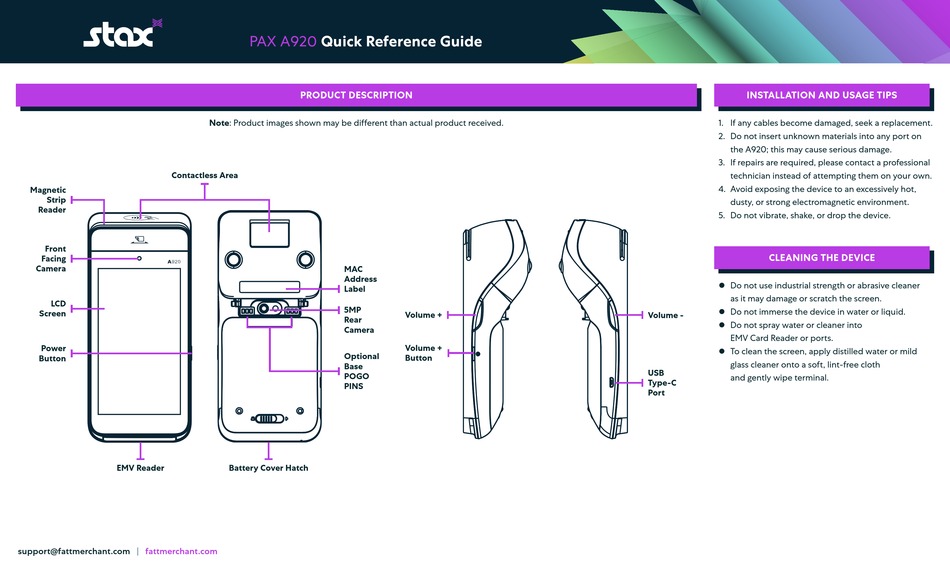

PAX A920 Quick Reference Guide
PRODUCT DESCRIPTION
Note: Product images shown may be different than actual product received.
MAC
Address
Label
5MP
Rear
Camera
Optional
Base
POGO
PINS
Battery Cover Hatch
Volume +
Volume +
Button
INSTALLATION AND USAGE TIPS
1. If any cables become damaged, seek a replacement.
2. Do not insert unknown materials into any port on
the A920; this may cause serious damage.
3. If repairs are required, please contact a professional
technician instead of attempting them on your own.
4. Avoid exposing the device to an excessively hot,
dusty, or strong electromagnetic environment.
5. Do not vibrate, shake, or drop the device.
CLEANING THE DEVICE
z Do not use industrial strength or abrasive cleaner
as it may damage or scratch the screen.
z Do not immerse the device in water or liquid.
Volume -
z Do not spray water or cleaner into
EMV Card Reader or ports.
z To clean the screen, apply distilled water or mild
glass cleaner onto a soft, lint-free cloth
USB
and gently wipe terminal.
Type-C
Port
