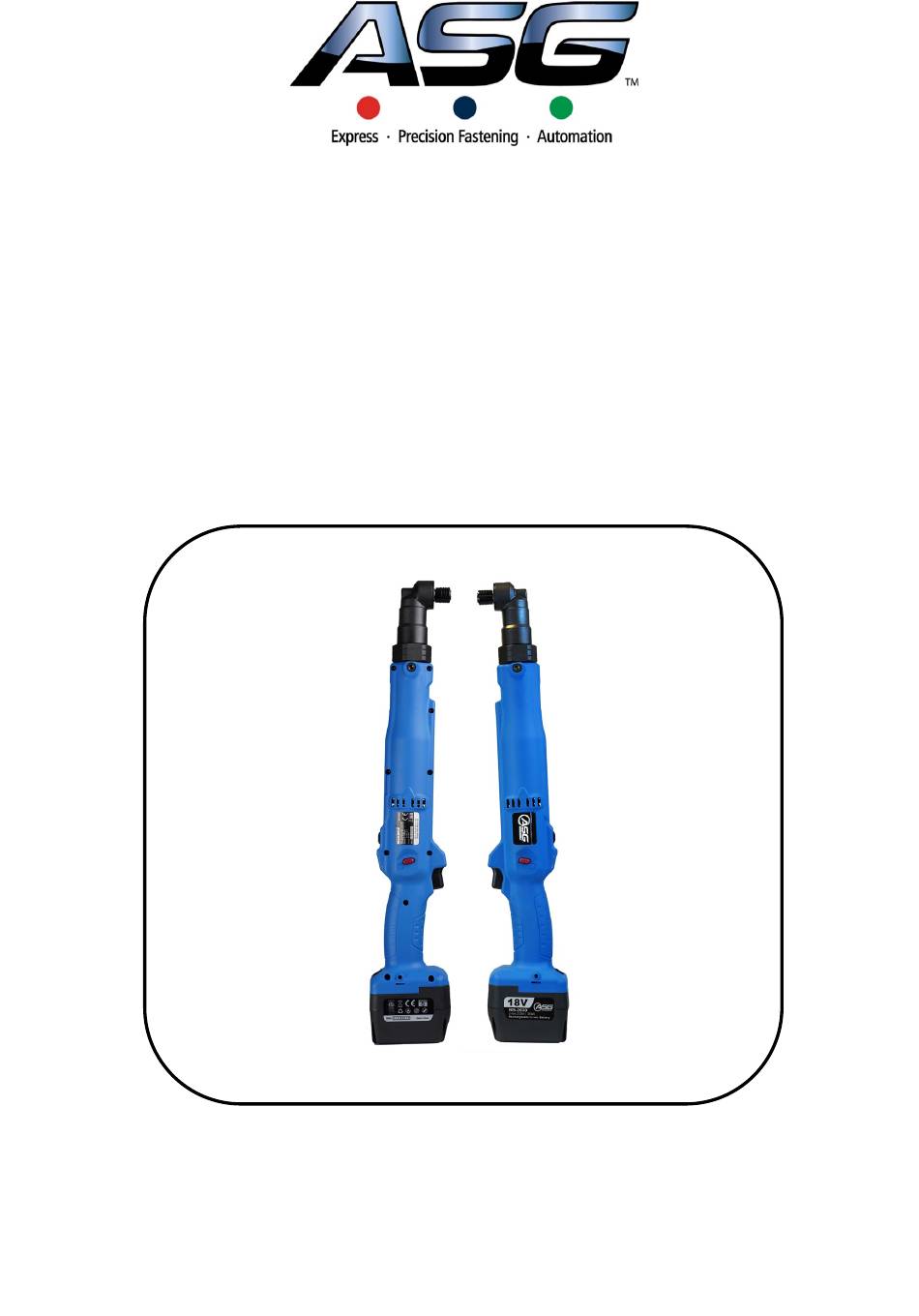

OPERATION AND MAINTENANCE MANUAL
18V BRUSHLESS CORDLESS ANGLE SHUT-OFF WRENCH
BLCA-9010
ITEM NO.:
BLCA-9020
ITEM NO.:
BLCA-9030
ITEM NO.:
BLCA-9040
ITEM NO.:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLCA-9010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ASG BLCA-9010

Summary of Contents for ASG BLCA-9010

  • Page 1 OPERATION AND MAINTENANCE MANUAL BLCA-9010 ITEM NO.: BLCA-9020 ITEM NO.: BLCA-9030 ITEM NO.: BLCA-9040 ITEM NO.: 18V BRUSHLESS CORDLESS ANGLE SHUT-OFF WRENCH...
  • Page 2 Icon Instructions 1. Read instruction manual. 6. Do not operate near combustible material. 2. Observe caution and safety notes. 7. Do not disassemble. 3. Recyclable. 8. CE certification. 4. For indoor use only. 5. Do not expose to wet conditions. Accessories Item Quantity...
  • Page 3 10. To protect parts in gearbox from damage, replace the grease at least once every year. 11. It is necessary for the operators to read and follow up on all of the operating instructions in this manual. ASG is not responsible for any personal injury that may be caused due to disobeying these instructions.

  • Page 4: Types Of Protection

    2. Do not attempt to disassemble or reassemble the device, as it may result in poor performance or danger or injury. 3. Do not repair the device with other than genuine ASG replacement parts. Failure to do so may result in poor performance or danger of injury. The warranty will be considered void.
  • Page 5 (2.1) The below illustration shows the process of correctly installing & disassembling the rechargeable battery. The audible beep sound and flash indicates the screwdriver’s battery is installed correctly and the tool can be operated. Insert Battery Steps (1) Insert the rechargeable battery into the device as shown. (2) Assembled completely.
  • Page 6 Operation Instructions Function Name Table No. Description No. Description Trigger Switch Indication light Forward/Reverse Lever Torque wrench LED Light Speed adjustment Torque Ring Wrist strap hole S waist hook (10) Suspension Ring Accessory...

  • Page 7: Manual / Function

    Manual / Function 1. Full auto shut-off screwdriver It stops automatically when the screw has been tightened and reached the set torque. (1) Trigger switch The LED lights turn on when the trigger switch has been pressed about one-third down, and then the screwdriver starts functioning when the switch trigger has been pressed half way down;...
  • Page 8 (7.3) Adjust the torque in two directions (-) for less torque (+) for more torque. (7.4) Use an ASG torque tester to confirm your torque setting. Do not exceed the stop line of the high and low torque when making adjustments shown in diagram...
  • Page 9 (8) Hi/Lo Switch When the rotating speed needs to be changed, select the switch to Hi for the fastest rotation, and to Lo for slowest rotation. Tool may not shut off in low speed if the set torque is above 50% of the maximum torque.

  • Page 10: Other Cautions

    A. BB-2030 battery uses the BC-1020 charger B. BB-2030 battery uses the BC-1040 charger 3. The use of other than genuine ASG batteries or screwdrivers cannot activate the tool due to the build-in protection system which enforces no charging without the certified part.

  • Page 11: Save All Warnings And Instructions For Future Reference

    Save all warnings and instructions for future reference. Work area safety A. Keep work area clean and well lit. Cluttered or dark areas invite accidents. B. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
  • Page 12 Power tool use and care A. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. B. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

  • Page 13: Specifications

    Specifications MODEL (PTA-) BLCA-9010 BLCA-9020 BLCA-9030 BLCA-9040 INPUT VOLTAGE(DC) DC 18V hard joints TORQUE 8-15 12-30 25-60 (N.m) 3-6.4 8-12 12-24 Soft joints Torque adjustment Internal adjustment Duty cycle 1.0s ON 4.0s OFF Unloaded Speed n0 1200 (r/min)±10% 5.0~6.0 ≤8 ≤10...
